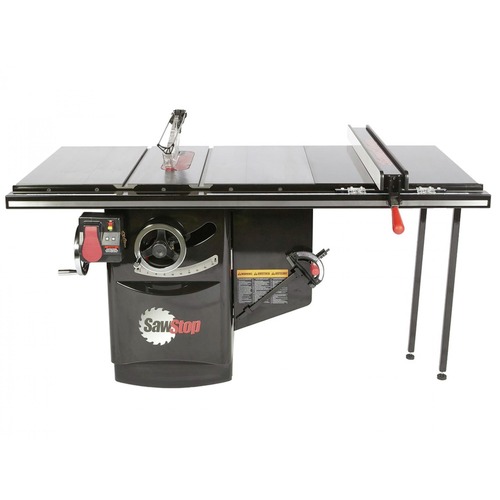

SawStop 230V Single Phase 5 HP Industrial Cabinet Saw with 36 in. Industrial T-Glide Fence System

SawStop Model: ICS51230-36
$5,774.00
promo-icon

FREE Systainer, 10in Saw Blade and Workshop Apron when you order this item via e-rebate! See Details

See More
See Less
free shipping
FREE shipping on orders $49+.
free shipping
This item ships directly from manufacturer in 3-5 Days
alert warning icon

OR PAY WITH

CA Residents
Prop 65 Warning
compliance warning icon
WARNING: Drilling, sawing, sanding or machining wood products can expose you to wood dust, a substance known to the State of California to cause cancer. Avoid inhaling wood dust or use a dust mask or other safeguards for personal protection. For more information go to www.P65Warnings.ca.gov/wood.Cancer
SawStop 230V Single Phase 5 HP Industrial Cabinet Saw with 36 in. Industrial T-Glide Fence System SawStop Model: ICS51230-36
price for vip customer
$5,774.00

OR PAY WITH

Product Features & specs :

SawStop ICS51230-36 230V Single Phase 5 HP Industrial Cabinet Saw with 36 in. Industrial T-Glide Fence System

Details

The SawStop Industrial Cabinet Saw is the definition of industrial grade. It is the heaviest, most powerful, and highest quality 10 in. cabinet saw available. The 5HP, 1ph, 230V configuration with a 36 in. Industrial T-Glide Fence Assembly offers the durability, versatility, and peace of mind only SawStop's patented safety system can provide.

Features:

  • 69-1/4 in. W, 36-1/2 in. D, 34 in. H

  • Durable craftsmanship and thoughtful details combine for consistent, reliable performance in the most demanding industrial environments

  • SawStop Safety System stops on contact with skin

  • 36 in. Industrial T-Glide Fence System provides smooth operation, precision measurement, and sure lockdown without deflection

What’s Included:

  • 230V Single Phase 5 HP Industrial Cabinet Saw with 36 in. Industrial T-Glide Fence System - ICS51230-36

  • (2) Cast Iron Extension Wings

  • (1) Miter Gauge

  • (1) Dust Collection Blade Guard

  • (1) Riving Knife

  • (2) Blade Wrenches

  • (1) Push Stick

  • (1) 10 in. Blade

  • (1) Standard Lockdown Insert

  • (1) Standard Brake Cartridge

  • (2) Hardware Packs

  • (1) 3mm Hex Key

  • (1) 5mm Hex Key

  • (1) 8mm Hex Key

  • (1) Blade Spacing Adjustment Gauge

  • (1) Owner’s Manual

Power Source

Corded

Dado Blade Width (Max.)

13/16 in

Fence Length

36 in

PreWired Voltage

230V

Table Type

Cast Iron

Wing Type

Cast Iron

Amperage

13

UL Safety

No

Fence Type

T-Glide

Rip Capacity (Right)

36 in

Blade Diameter

10 in

Bluetooth Compatibility

No

Blade Tilt

Left

Motor Type

Induction

Dado Blade Diameter (Max.)

8 in

Table Width (w/ Wings)

44 in

Table Width (w/ Extension)

69-1/4 in

Arbor Size

5/8 in

Depth of Cut (45 Degrees)

2-1/4 in

Blade Tilt Range

0 - 45 Degrees

No-Load Speed (RPM)

4000

Depth of Cut (90 Degrees)

3-1/8 in

Max. Rip Capacity (Right)

36 in

CSA Safety

Yes

Max. Rip Capacity (Left)

12-1/2 in

Table Width

24 in

Motor Phase

1

Horsepower

5

Voltage

230V

Table Depth

30 in

Rip Capacity (Left)

12-1/2 in

ETL Safety

No

Length

69.25 in.

Width

36.5 in.

Height

34 in.

Depth

36.5 in.

Weight

635 lbs.

Warranty Term

2 Year

Reviews :

Q & A :

Warranty:

SawStop 10'' Professional Cabinet Saw Warranty

SawStop warrants to the original retail purchaser of a new Professional Cabinet Saw accompanying this manual and purchased from an authorized SawStop distributor that the saw and any accessories purchased with the saw will be free from defects in material and workmanship for TWO YEARS from the date of purchase.

SawStop warrants to the original retail purchaser of a refurbished, demonstration or floor model Professional Cabinet Saw from an authorized SawStop distributor that the saw will be free from defects in material and workmanship for ONE YEAR from the date of purchase.

This warranty does not apply to defects arising from misuse, abuse, negligence, accidents, normal wear-and-tear, unauthorized repair or alteration, or lack of maintenance. This warranty is void if the saw or any portion of the saw is modified without the prior written permission of SawStop, LLC, or if the saw is located or has been used outside of the country of residence of the authorized SawStop distributor from whom the saw was purchased.

Please contact SawStop to take advantage of this warranty. If SawStop determines the saw or an accessory is defective in material or workmanship, and not due to misuse, abuse, negligence, accidents, normal wear-and-tear, unauthorized repair or alteration, or lack of maintenance, then SawStop will, at its expense and upon proof of purchase, send replacement parts to the original retail purchaser necessary to cure the defect. Alternatively, SawStop will repair the saw or accessory provided the saw or accessory is returned to SawStop, shipping prepaid, with proof of purchase and within the warranty period.

SawStop disclaims any and all other express or implied warranties, including merchantability and fitness for a particular purpose. SawStop shall not be liable for death, injuries to persons or property, or incidental, consequential, contingent or special damages arising from the use of the saw.

This warranty gives you specific legal rights. You may have other rights which vary from state to state.

To register your saw, please visit - www.sawstop.com/support/product-registration

No Warranty of Safety

It is important to understand that SawStop saws do not prevent injuries. They work to minimize the severity of injuries. In fact, an injury must occur before the SawStop® safety system reacts. The severity of the injury will depend on the speed at which a person contacts the spinning blade. You may incur a serious injury on a SawStop® saw. If you decide to use the saw in Bypass Mode, the safety system will be disabled and it will not activate in the event you contact the spinning blade.
