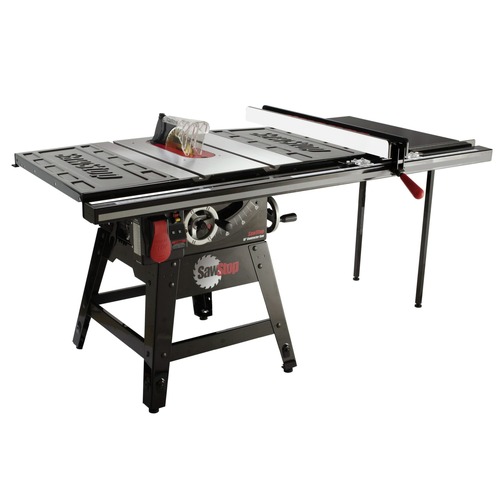

SawStop 110V Single Phase 1.75 HP 14 Amp 10 in. Contractor Saw with 36 in. Professional Series T-Glide Fence System

SawStop Model: CNS175-TGP236
$2,507.00
promo-icon

FREE Systainer, 10in Saw Blade and Workshop Apron when you order this item via e-rebate! See Details

See More
See Less
free shipping
FREE shipping on orders $49+.
free shipping
This item ships directly from manufacturer in 3-5 Days
alert warning icon

OR PAY WITH

CA Residents
Prop 65 Warning
compliance warning icon
WARNING: Drilling, sawing, sanding or machining wood products can expose you to wood dust, a substance known to the State of California to cause cancer. Avoid inhaling wood dust or use a dust mask or other safeguards for personal protection. For more information go to www.P65Warnings.ca.gov/wood.Cancer
SawStop 110V Single Phase 1.75 HP 14 Amp 10 in. Contractor Saw with 36 in. Professional Series T-Glide Fence System SawStop Model: CNS175-TGP236
price for vip customer
$2,507.00

OR PAY WITH

Product Features & specs :

SawStop CNS175-TGP236 110V Single Phase 1.75 HP 14 Amp 10 in. Contractor Saw with 36 in. Professional Series T-Glide Fence System

Details

SawStop's Contractor Saw offers the highest level of versatility and safety. Whether being used on the jobsite or in the shop, it delivers the high performance needed to get the job done while providing the peace of mind a SawStop patented safety system can offer. Compatible with various rails, bases and attachments, each Contractor Saw offers various combinations of portable and stationary work stations suitable for any type of job.

Features:

  • SawStop’s patented safety system stops the blade on contact with skin, reducing the risk of serious accidents and injuries

  • All purpose safety and mobility suitable for both jobsites and work shops

  • Rugged 110V motor (configurable to 220V) delivers a higher level of performance and power

  • Tool-free quick change mount allows for fast and easy transitions between guard and riving knifes

  • Professional fence systems deliver the straightest and most accurate cuts possible

  • Enhanced dust collection increases dust and debris removal to provide a cleaner and safer work environment (Includes standard Micro Blade Guard, optional Dust Collection Blade Guard Sold Separately)

  • Compatible with both 10 in. standard blades as well as 8 in. dado blade sets for maximum versatility

  • Unmatched quality of construction provides a durable and reliable saw that's built to last

  • Please Note: Unit includes Standard Base, optional Jobsite Cart and Mobile Base sold separately

What’s Included:

  • 110V Single Phase 1.75 HP Contractor Saw with 36 in. Professional Series T-Glide Fence System - CNS175-TGP236

  • (2) Steel Extension Wings

  • (1) Miter Gauge

  • (1) Micro Blade Guard

  • (1) Riving Knife

  • (2) Blade Wrenches

  • (1) Push Stick

  • (1) 10 in. Blade

  • (1) Table Insert

  • (1) Standard Brake Cartridge

  • (2) Hardware Packs

  • (1) 3mm Hex Key

  • (1) 5mm Hex Key

  • (1) 8mm Hex Key

  • (1) Blade Spacing Adjustment Gauge

  • (1) Owner’s Manual

  • (1) Assembly Instructions

Power Source

Corded

Blade Guard System

Yes

Dado Blade Width (Max.)

13/16 in

Fence Length

36 in

PreWired Voltage

110V

Table Type

Cast Iron

Wing Type

Steel

Amperage

14

UL Safety

No

Wifi compatibility

No

Rip Capacity (Right)

36-1/2 in

Blade Diameter

10 in

Bluetooth Compatibility

No

Dust Collection

Yes

Blade Tilt

Left

Motor Type

Induction

Dado Blade Diameter (Max.)

8 in

Table Width (w/ Wings)

44 in

Table Width (w/ Extension)

69-1/8 in

Arbor Size

5/8 in

Depth of Cut (45 Degrees)

2-1/4 in

Blade Tilt Range

0 - 45 Degrees

No-Load Speed (RPM)

4000

Depth of Cut (90 Degrees)

3-1/8 in

CSA Safety

Yes

Max. Rip Capacity (Left)

12-1/2 in

Table Width

20 in

Table Height

35-3/4 in

Motor Phase

1

Horsepower

1.75

Voltage

110V

Table Depth

27 in

Rip Capacity (Left)

12-1/2 in

ETL Safety

No

Width

69.125 in.

Height

34.75 in.

Depth

45 in.

Weight

310 lbs.

Warranty Term

1 Year

Reviews :

Q & A :

Warranty:

SawStop 10'' Contractor Saw Warranty

SawStop warrants to the original retail purchaser of a new contractor saw from an authorized SawStop distributor that the saw will be free from defects in material and workmanship for ONE YEAR from the date of purchase. SawStop warrants to the original retail purchaser of a refurbished, demonstration or floor model contractor saw from an authorized SawStop distributor that the saw will be free from defects in material and workmanship for SIX MONTHS from the date of purchase.

This warranty does not apply to defects arising from misuse, abuse, negligence, accidents, normal wear-and-tear, unauthorized repair or alteration, or lack of maintenance. This warranty is void if the saw or any portion of the saw is modified without the prior written permission of SawStop, LLC, or if the saw is located or has been operated outside of the country where the authorized SawStop distributor from whom the saw was purchased resides.

Please contact SawStop to take advantage of this warranty. If SawStop determines the saw is defective in material or workmanship, and not due to misuse, abuse, negligence, accidents, normal wear-and-tear, unauthorized repair or alteration, or lack of maintenance, then SawStop will, at its expense, and upon proof of purchase, send replacement parts to the original retail purchaser necessary to cure the defect. Alternatively, SawStop will repair the saw provided it is returned to SawStop, shipping prepaid, with proof of purchase and within the warranty period.

SawStop disclaims any and all other express or implied warranties, including merchantability and fitness for a particular purpose. SawStop shall not be liable for death, injuries to persons or property, or incidental, consequential, contingent or special damages arising from the use of the saw.

This warranty gives you specific legal rights. You may have other rights, which vary from state to state.

To register your saw, please visit - www.sawstop.com/support/product-registration

No Warranty of Safety

It is important to understand that SawStop saws do not prevent injuries. They work to minimize the severity of injuries. In fact, an injury must occur before the SawStop safety system reacts. The severity of the injury will depend on the speed at which a person contacts the spinning blade. You may incur a serious injury on a SawStop saw. If you decide to use the saw in Bypass Mode, the safety system will be disabled and it will not activate in the event you contact the spinning blade.
