Saw Trax Full Size 64 in. Cross Cut Vertical Panel Saw

Saw Trax Model: 1064
$3,998.55
See More
See Less
free shipping
FREE shipping on orders $49+.
free shipping
This item ships directly from manufacturer in 1-2 weeks
alert warning icon

OR PAY WITH

Saw Trax Full Size 64 in. Cross Cut Vertical Panel Saw Saw Trax Model: 1064
price for vip customer
$3,998.55

OR PAY WITH

Product Features & specs :

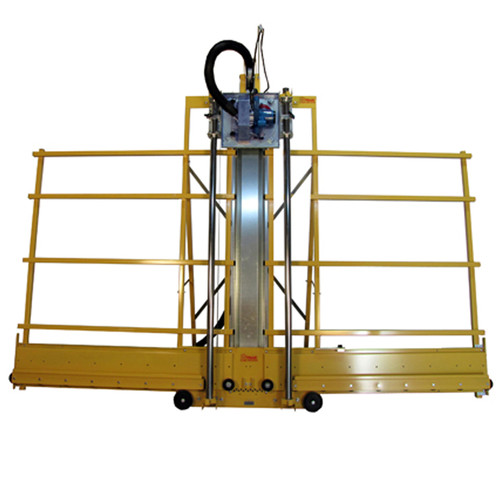

Saw Trax 1064 Full Size 64 in. Cross Cut Vertical Panel Saw

Details

The 1000 Series Vertical Panel Saw is for woodworkers, cabinet makers and other customers that need a vertical panel saw to precision cut sheets up to 1-3/4 inches thick. The industrial Makita 5007 saw motor uses standard 7.25 in. saw blades and sealed bearings on their carriage for the most accurate and smooth carriage action in the industry.

Features:

  • Has a 7.25 in. blade that can be easily changed and replaced when needed

  • Sealed Steel Bearing system for smooth and precise pulls on the guide tubes

  • Patented Accu-Square system to keep your cuts precise

  • Interchangable insert plates with additional accessories and cutting options

  • Stop Block with Bar is able to be used on either side of the unit

What’s Included:

  • 64 in. Vertical 120 in. Full Frame Panel Saw - 1064

  • Full Size 120 in. Wide Frame

  • Makita 5007F 7.25 in. saw

  • Spinning Saw Insert Plate

  • Dust hood, hose, and Dust Containment Brush

  • Folding Stand and Transport Wheels

  • Dual Rip Gauge

  • Stop Block with Bar, and Measuring Tapes

  • Patented Accu-Square System

  • Sealed Steel Bearings

  • Cord Holder

Blade Speed (RPM)

5800

Power Source

Corded

Amperage

15

Wifi compatibility

No

Blade Diameter

7-1/4 in

Bluetooth Compatibility

No

Cross Cut Capacity

64 in

Motor Type

Brushed

Frame Width

120 in

Arbor Size

5/8 in

Material Thickness (Max.)

1-3/4 in

Voltage

120V

AC Voltage

120V

Length

121 in.

Width

40 in.

Height

83 in.

Weight

450 lbs.

Warranty Term

1 Year

Reviews :

Q & A :

Warranty:

Warranty Information

Every Saw Trax Vertical Panel Saw is thoroughly inspected before leaving the factory. It is warranted to be free from defects from workmanship and materials for one year on all components except the saw motor. Should any trouble develop during the warranty period, contact us for a RMA & return that component with proof of purchase date, freight prepaid to Saw Trax Mfg. Co. Inc. If inspection shows the trouble caused by defective workmanship or materials, Saw Trax Mfg. Co. Inc. will repair (or, at our option, replace) without charge.


This warranty does not apply where:

  1. - Repairs have been made or attempted by others.

  2. - Repairs are required because of normal wear and tear.

  3. - The tool has been abused, misused or improperly maintained.

  4. - Alterations have been made to the tool.

  5. - Corrosion and / or rust have developed due to scratches in the finish.

  6. - The saw motor is covered by the saw manufacturer’s warranty and is not covered by Saw Trax Mfg., Inc.


In no event shall Saw Trax Mfg. Co., Inc. be liable for any indirect, incidental or consequential damages from the sale or use of this product. This disclaimer applies both during and after the duration of this warranty.

Saw Trax Mfg. Co. Inc. disclaims liability for any implied warranties, including (but not limited to) implied warranties of “merchantability” and/or “fitness” for a specific purpose, after the term of this warranty.
