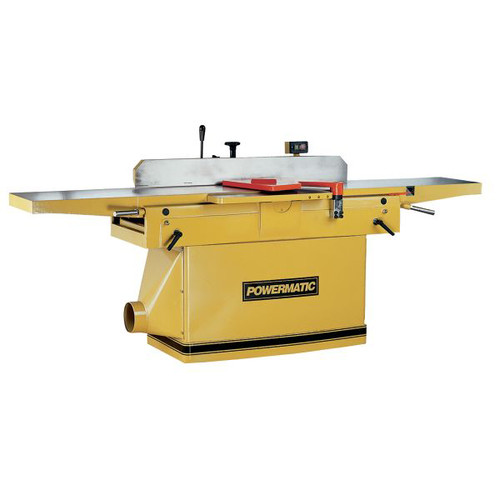

Powermatic PJ1696 230/460V 3-Phase 7-1/2-Horsepower 16 in. Jointer with Helical Cutterhead

Powermatic Model: PJ1696
$11,699.99
promo-icon

Woodworking Buy More Save More! $500 off $3000 | $200 off $1500 | $50 off $500 Use Code: CRAFT500 See Details

See More
See Less
free shipping
FREE shipping on orders $49+.
free shipping
This item ships directly from manufacturer in 3-5 days
alert warning icon

OR PAY WITH

CA Residents
Prop 65 Warning
compliance warning icon
WARNING: This product can expose you to Lead, which is known to the State of California to cause Cancer and Birth Defect/Reproductive Harm. For more information go to www.P65Warnings.ca.gov.
Powermatic PJ1696 230/460V 3-Phase 7-1/2-Horsepower 16 in. Jointer with Helical Cutterhead Powermatic Model: PJ1696
price for vip customer
$11,699.99

OR PAY WITH

Product Features & specs :

Powermatic PJ1696 230/460V 3-Phase 7-1/2-Horsepower 16 in. Jointer with Helical Cutterhead

Details

The PJ1696 Jointer offers big capacity and performance in a machine that is loaded with features. Large center-mounted fence assembly adjusts easily on a rack-and-pinion system with ram lock. Preset stops on the fence body allow for fast angle setup at 45 degrees in and out, and a positive stop for perfect 90 degree angles. The parallelogram design keeps the table in close proximity to the cutterhead for improved finish and allows for a fast depth of cut adjustment. This design also ensures that the tables remain perfectly parallel even after years of tough duty. The specially designed solid steel helical cutterhead consists of six rows of precision-ground staggered inserts. This system makes fast work of knife changing and never needs adjustment. The heavy-duty 7-1/2 HP motor delivers all the power you need for even the biggest jobs.

Features:

  • 7-1/2 HP, 3 Phase TEFC motor

  • Rack-and-pinion adjustable cast-iron fence assembly

  • Helical cutterhead with 2-sided insert tooling

  • Large 96 in. x 16 in. table surface

  • Full-size rabbeting ledge

  • Parallelogram construction

What’s Included:

  • PJ1696 16 in. Jointer - 1791283

  • Helical Cutterhead w/ Inserts

  • Tiltable Fence

  • Dust Collection Adapter

  • Cutterhead Guard

  • Tool Kit

Power Source

Corded

Fence Length

47-1/4 in

PreWired Voltage

230V

Amperage

2

UL Safety

No

Rabbeting Ledge

5 in x 24-1/2

Wifi compatibility

No

Fence Height

5-1/4 in

Bluetooth Compatibility

No

Cutterhead Speed (RPM)

5200

Motor Type

Brushed

Cutterhead Diameter

4 in

Fence Tilt (Rear)

45 Degrees

Dust Port

Yes

No. of Knives

58

CSA Safety

Yes

Fence Tilt (Front)

45 Degrees

Dust Port Size

4 in

Table Dimensions

96 in x 16 in

Rabbeting Capacity

3/4 in

Table Height

37-1/2 in

Motor Phase

3

Horsepower

7.5

Voltage

230V/460V

Max. Cut Capacity (Depth)

3/4 in

Max. Cut Capacity (Width)

16 in

Cutterhead Style

Helical

Fence Stops

3

Cuts Per Minute (CPM)

20800

ETL Safety

No

Length

46 in.

Width

96 in.

Height

43 in.

Weight

1280 lbs.

Warranty Term

1 Year

Reviews :

Q & A :

Warranty:

Powermatic 1 Year Warranty


WMH Tool Group, Inc., warrants every product it sells. If one of our tools needs service or repair, one of our Authorized Service Centers located throughout the United States can give you quick service. In most cases, any of these WMH Tool Group Authorized Service Centers can authorize warranty repair, assist you in obtaining parts, or perform routine maintenance and major repair on your POWERMATIC tools. For the name of an Authorized Service Center in your area call 1-800-274-6848.


One Year Warranty for Industrial Products
(Horizontal Panel Saws, Cut Off Saws, Rip Saws, Bandsaws, Jointers, Planers, Oscillating Edge Sanders, Belt Sanders, Shapers, Power Feeders, Mortisers, Dovetailers)


WHAT IS COVERED

This warranty covers any defects in workmanship or materials subject to the exceptions stated below. Cutting tools, abrasives and other consumables are excluded from warranty coverage.


WHO IS COVERED

This warranty covers only the initial purchaser of the product.


WHAT IS THE PERIOD OF COVERAGE

The general POWERMATIC warranty lasts for the time period specified in the product literature of each product.


WHAT IS NOT COVERED

The Five Year Warranty does not cover products used for commercial, industrial or educational purposes. Products with a Five Year Warranty that are used for commercial, industrial or education purposes revert to a One Year Warranty. This warranty does not cover defects due directly or indirectly to misuse, abuse, negligence or accidents, normal wear-and-tear, improper repair or alterations, or lack of maintenance.


HOW TO GET SERVICE

The product or part must be returned for examination, postage prepaid, to a location designated by us. For the name of the location nearest you, please call 1-800-274-6848. You must provide proof of initial purchase date and an explanation of the complaint must accompany the merchandise. If our inspection discloses a defect, we will repair or replace the product, or refund the purchase price, at our option. We will return the repaired product or replacement at our expense unless it is determined by us that there is no defect, or that the defect resulted from causes not within the scope of our warranty in which case we will, at your direction, dispose of or return the product. In the event you choose to have the product returned, you will be responsible for the handling and shipping costs of the return.


HOW STATE LAW APPLIES

This warranty gives you specific legal rights; you may also have other rights which vary from state to state.


LIMITATIONS ON THIS WARRANTY

WMH TOOL GROUP LIMITS ALL IMPLIED WARRANTIES TO THE PERIOD OF THE LIMITED WARRANTY FOR EACH PRODUCT. EXCEPT AS STATED HEREIN, ANY IMPLIED WARRANTIES OR MERCHANTABILITY AND FITNESS ARE EXCLUDED. SOME STATES DO NOT ALLOW LIMITATIONS ON HOW LONG THE IMPLIED WARRANTY LASTS, SO THE ABOVE LIMITATION MAY NOT APPLY TO YOU. WMH TOOL GROUP SHALL IN NO EVENT BE LIABLE FOR DEATH, INJURIES TO PERSONS OR PROPERTY, OR FOR INCIDENTAL, CONTINGENT, SPECIAL, OR CONSEQUENTIAL DAMAGES ARISING FROM THE USE OF OUR PRODUCTS. SOME STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATION OR EXCLUSION MAY NOT APPLY TO YOU.


WMH Tool Group sells through distributors only. The specifications in WMH catalogs are given as general information and are not binding. Members of WMH Tool Group reserve the right to effect at any time, without prior notice, those alterations to parts, fittings, and accessory equipment which they may deem necessary for any reason whatsoever.
