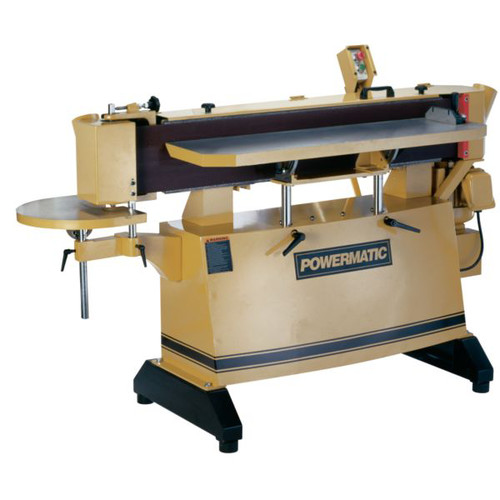

Powermatic OES9138 230/460V 3-Phase 3-Horsepower Horizontal-Vertical Oscillating Edge Sander

Powermatic Model: OES9138

Enter your email address and we'll let you know when it's available

OUT OF STOCK
CA Residents
Prop 65 Warning
compliance warning icon
WARNING: This product can expose you to Lead, which is known to the State of California to cause Cancer and Birth Defect/Reproductive Harm. For more information go to www.P65Warnings.ca.gov.
Powermatic OES9138 230/460V 3-Phase 3-Horsepower Horizontal-Vertical Oscillating Edge Sander Powermatic Model: OES9138

Product Features & specs :

Powermatic OES9138 230/460V 3-Phase 3-Horsepower Horizontal-Vertical Oscillating Edge Sander

Details

The large 11-3/4 in. x 48 in. table on this OES9138 Oscillating Edge Sander travels a full 8 in. in vertical height to accommodate all workpieces from tall to small. It will also tilt negative 5 degrees and out to positive 45 degrees. The cast-iron platen is a generous 48 in. x 9-1/2 in. and covered with graphite for production sanding, offering super support and cooler running to extend blade life. With 24 oscillations per minute, you can use the entire belt face without burning. A 3 HP motor powers the belt and runs a large gearbox to provide the oscillating action. The entire head pivots on a massive shaft with two sealed ball bearings for trouble-free performance. Dual dust collection ports keep the work area clean and extend the life of your abrasive belt.

Features:

  • 3 HP motor with 9 in. x 138-3/4 in. abrasive belt

  • Oscillates 24 cycles per minute

  • 9-1/2 in. x 48 in. platen with graphite pad

  • Dual dust collection ports

  • Large 11-3/4 in. x 48 in. front work table with 8 in. vertical travel tilts from negative 5 degrees to positive 45 degrees and includes miter head gauge for angle work

  • Precision-balanced 9 in. diameter drive drum and 4 in. diameter rubber coated idler pulley

  • Rugged bearing-assisted tensioning device

  • Heavy-duty oscillating gearbox and shaft

  • Hinged guard opens for infinite length sanding

What’s Included:

  • OES9138 Horizontal/Vertical Oscillating Edge Sander - 1791293

  • (2) 4 in. Dust Ports

  • Tilting Main and End Tables

  • Platen with Graphite Pad

Power Source

Corded

PreWired Voltage

230V

Oscillating Speed (OPM)

24

Amperage

30

UL Safety

Yes

Wifi compatibility

No

Bluetooth Compatibility

No

Motor Type

Brushed

Table Tilt Range

45 Degrees

Belt Length

9 in

Sanding Speed (SPM)

3542

CSA Safety

No

Belt Width

138.75 in

Motor Phase

3

Horsepower

3

Voltage

230V/460V

ETL Safety

No

Length

83 in.

Width

32 in.

Height

50 in.

Weight

800 lbs.

Warranty Term

1 Year

Reviews :

Q & A :

Warranty:

Powermatic 1 Year Warranty


WMH Tool Group, Inc., warrants every product it sells. If one of our tools needs service or repair, one of our Authorized Service Centers located throughout the United States can give you quick service. In most cases, any of these WMH Tool Group Authorized Service Centers can authorize warranty repair, assist you in obtaining parts, or perform routine maintenance and major repair on your POWERMATIC tools. For the name of an Authorized Service Center in your area call 1-800-274-6848.


One Year Warranty for Industrial Products
(Horizontal Panel Saws, Cut Off Saws, Rip Saws, Bandsaws, Jointers, Planers, Oscillating Edge Sanders, Belt Sanders, Shapers, Power Feeders, Mortisers, Dovetailers)


WHAT IS COVERED

This warranty covers any defects in workmanship or materials subject to the exceptions stated below. Cutting tools, abrasives and other consumables are excluded from warranty coverage.


WHO IS COVERED

This warranty covers only the initial purchaser of the product.


WHAT IS THE PERIOD OF COVERAGE

The general POWERMATIC warranty lasts for the time period specified in the product literature of each product.


WHAT IS NOT COVERED

The Five Year Warranty does not cover products used for commercial, industrial or educational purposes. Products with a Five Year Warranty that are used for commercial, industrial or education purposes revert to a One Year Warranty. This warranty does not cover defects due directly or indirectly to misuse, abuse, negligence or accidents, normal wear-and-tear, improper repair or alterations, or lack of maintenance.


HOW TO GET SERVICE

The product or part must be returned for examination, postage prepaid, to a location designated by us. For the name of the location nearest you, please call 1-800-274-6848. You must provide proof of initial purchase date and an explanation of the complaint must accompany the merchandise. If our inspection discloses a defect, we will repair or replace the product, or refund the purchase price, at our option. We will return the repaired product or replacement at our expense unless it is determined by us that there is no defect, or that the defect resulted from causes not within the scope of our warranty in which case we will, at your direction, dispose of or return the product. In the event you choose to have the product returned, you will be responsible for the handling and shipping costs of the return.


HOW STATE LAW APPLIES

This warranty gives you specific legal rights; you may also have other rights which vary from state to state.


LIMITATIONS ON THIS WARRANTY

WMH TOOL GROUP LIMITS ALL IMPLIED WARRANTIES TO THE PERIOD OF THE LIMITED WARRANTY FOR EACH PRODUCT. EXCEPT AS STATED HEREIN, ANY IMPLIED WARRANTIES OR MERCHANTABILITY AND FITNESS ARE EXCLUDED. SOME STATES DO NOT ALLOW LIMITATIONS ON HOW LONG THE IMPLIED WARRANTY LASTS, SO THE ABOVE LIMITATION MAY NOT APPLY TO YOU. WMH TOOL GROUP SHALL IN NO EVENT BE LIABLE FOR DEATH, INJURIES TO PERSONS OR PROPERTY, OR FOR INCIDENTAL, CONTINGENT, SPECIAL, OR CONSEQUENTIAL DAMAGES ARISING FROM THE USE OF OUR PRODUCTS. SOME STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATION OR EXCLUSION MAY NOT APPLY TO YOU.


WMH Tool Group sells through distributors only. The specifications in WMH catalogs are given as general information and are not binding. Members of WMH Tool Group reserve the right to effect at any time, without prior notice, those alterations to parts, fittings, and accessory equipment which they may deem necessary for any reason whatsoever.
