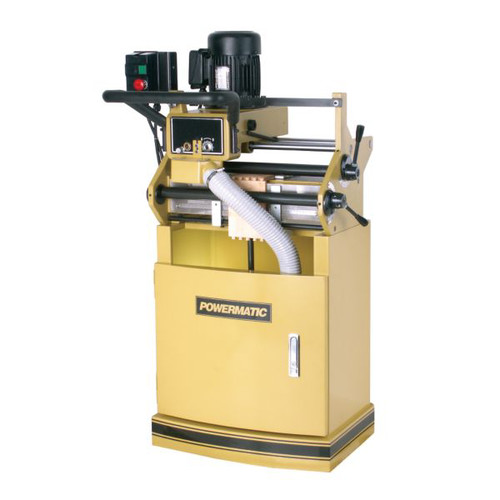

Powermatic DT45 115/230V 1-Phase 1-Horsepower Manual Clamping Dovetail Machine

Powermatic Model: DT45
$5,899.99
See More
See Less
free shipping
FREE shipping on orders $49+.
free shipping
This item ships directly from the manufacturer.
alert warning icon

OR PAY WITH

CA Residents
Prop 65 Warning
compliance warning icon
WARNING: This product can expose you to Lead, which is known to the State of California to cause Cancer and Birth Defect/Reproductive Harm. For more information go to www.P65Warnings.ca.gov.
Powermatic DT45 115/230V 1-Phase 1-Horsepower Manual Clamping Dovetail Machine Powermatic Model: DT45
price for vip customer
$5,899.99

OR PAY WITH

Product Features & specs :

Powermatic DT45 115/230V 1-Phase 1-Horsepower Manual Clamping Dovetail Machine

Details

The Powermatic DT45 Dovetail Machine is used to cut dovetails for drawers and various furniture components. The machine is equipped with a router spindle which allows cutting dovetails of adjustable height. The DT45 can machine four types of dovetails with different pitches. Locking and unlocking of pieces takes place manually by an ergonomic clamp.

Features:

  • Four separate dovetail centerlines at 1 in, 1-1/2 in, 2 in, and 2-1/2 in.

  • 1 HP, 1 Phase, 115/230V TEFC motor

  • Eccentric spindle collet for resharpened cutters

  • Cutter height of 3/16 in. to 3/4 in.

  • Manual eccentric clamping

  • Extra-large soft grip handle provides positive control and comfort

  • The precision carriage bearings are sealed on both ends to eliminate dust buildup

  • Visual stylus and template aids in guiding the carriage

  • Spring-loaded carriage makes for smooth, effortless dovetail cutting

  • Material stops provide convenient positioning of the workpiece

  • Cast-iron and steel construction for added stability and durability

What’s Included:

  • DT45 1 HP Manual Clamping Dovetail Machine - 1791304

  • Four-Sided Template

  • Work Stops

  • Dovetail Bit

  • Dust Chute with Hose

  • Tool Kit

Power Source

Corded

PreWired Voltage

115V

Amperage

16

UL Safety

No

Wifi compatibility

No

Front Thickness (Min.)

9/32 in

Dovetail Max (Max.)

3/4 in

Dovetail Spacing (Center to Center)

1 in / 1-1/2 in / 2 in / 2-1/2 in

Bluetooth Compatibility

No

Motor Type

Brushed

Spindle Speed (RPM)

18500

Dovetail Height (Min.)

3/16 in

Side Thickness (Max.)

1-3/16 in

No. of Spindles

1

Workpiece Size (Min.)

7-7/8 in x 2-3/8 in

CSA Safety

No

Front Thickness (Max.)

1-3/4 in

Dust Port Size

2-1/2 in / 4 in

Motor Phase

1

Table Height

35 in

Side Thickness (Min.)

9/32 in

Horsepower

1

Voltage

115V/230V

ETL Safety

No

Workpiece Size (Max.)

31 x 11 in

Length

33 in.

Width

33 in.

Height

61 in.

Weight

380 lbs.

Warranty Term

1 Year

Reviews :

Q & A :

Warranty:

Powermatic 5 Year Warranty


WMH Tool Group, Inc., warrants every product it sells. If one of our tools needs service or repair, one of our Authorized Service Centers located throughout the United States can give you quick service. In most cases, any of these WMH Tool Group Authorized Service Centers can authorize warranty repair, assist you in obtaining parts, or perform routine maintenance and major repair on your POWERMATIC tools. For the name of an Authorized Service Center in your area call 1-800-274-6848.


Five Year Warranty for Non-Industrial Tools
(Vertical Panel Saws, Bandsaws, Jointers, Planers, Planer/Molder, Dust Collection, Disc Sanders, Edge Sanders, Drum Sanders, Shapers, Drill Presses, Mortisers, Dovetailers)


WHAT IS COVERED

This warranty covers any defects in workmanship or materials subject to the exceptions stated below. Cutting tools, abrasives and other consumables are excluded from warranty coverage.


WHO IS COVERED

This warranty covers only the initial purchaser of the product.


WHAT IS THE PERIOD OF COVERAGE

The general POWERMATIC warranty lasts for the time period specified in the product literature of each product.


WHAT IS NOT COVERED

The Five Year Warranty does not cover products used for commercial, industrial or educational purposes. Products with a Five Year Warranty that are used for commercial, industrial or education purposes revert to a One Year Warranty. This warranty does not cover defects due directly or indirectly to misuse, abuse, negligence or accidents, normal wear-and-tear, improper repair or alterations, or lack of maintenance.


HOW TO GET SERVICE

The product or part must be returned for examination, postage prepaid, to a location designated by us. For the name of the location nearest you, please call 1-800-274-6848.


You must provide proof of initial purchase date and an explanation of the complaint must accompany the merchandise. If our inspection discloses a defect, we will repair or replace the product, or refund the purchase price, at our option. We will return the repaired product or replacement at our expense unless it is determined by us that there is no defect, or that the defect resulted from causes not within the scope of our warranty in which case we will, at your direction, dispose of or return the product. In the event you choose to have the product returned, you will be responsible for the handling and shipping costs of the return.

HOW STATE LAW APPLIES

This warranty gives you specific legal rights; you may also have other rights which vary from state to state.


LIMITATIONS ON THIS WARRANTY

WMH TOOL GROUP LIMITS ALL IMPLIED WARRANTIES TO THE PERIOD OF THE LIMITED WARRANTY FOR EACH PRODUCT. EXCEPT AS STATED HEREIN, ANY IMPLIED WARRANTIES OR MERCHANTABILITY AND FITNESS ARE EXCLUDED. SOME STATES DO NOT ALLOW LIMITATIONS ON HOW LONG THE IMPLIED WARRANTY LASTS, SO THE ABOVE LIMITATION MAY NOT APPLY TO YOU. WMH TOOL GROUP SHALL IN NO EVENT BE LIABLE FOR DEATH, INJURIES TO PERSONS OR PROPERTY, OR FOR INCIDENTAL, CONTINGENT, SPECIAL, OR CONSEQUENTIAL DAMAGES ARISING FROM THE USE OF OUR PRODUCTS. SOME STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATION OR EXCLUSION MAY NOT APPLY TO YOU.


WMH Tool Group sells through distributors only. The specifications in WMH catalogs are given as general information and are not binding. Members of WMH Tool Group reserve the right to effect at any time, without prior notice, those alterations to parts, fittings, and accessory equipment which they may deem necessary for any reason whatsoever.
