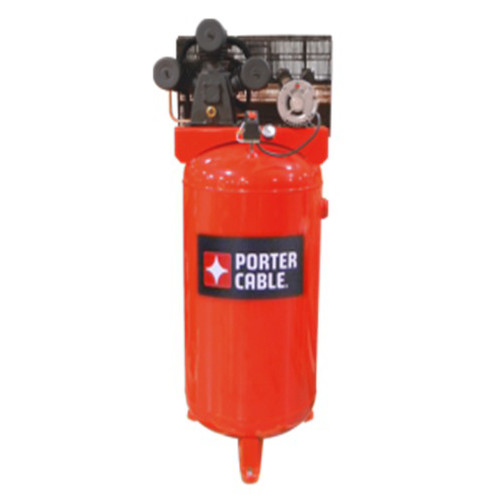

Porter-Cable 208V/240V 4.7 HP Single Stage 80 Gal. Oil-Lube Stationary Vertical Air Compressor

Porter-Cable Model: PXCMLA4708065
$1,779.99
See More
See Less
free shipping
FREE shipping on orders $49+.
free shipping
This item ships from manufacturer; get it in 2-5 days
alert warning icon

OR PAY WITH

CA Residents
Prop 65 Warning
compliance warning icon
WARNING: This product can expose you to Lead, which is known to the State of California to cause Cancer and Birth Defect/Reproductive Harm. For more information go to www.P65Warnings.ca.gov.
Porter-Cable 208V/240V 4.7 HP Single Stage 80 Gal. Oil-Lube Stationary Vertical Air Compressor Porter-Cable Model: PXCMLA4708065
price for vip customer
$1,779.99

OR PAY WITH

Product Features & specs :

Porter-Cable PXCMLA4708065 208V/240V 4.7 HP Single Stage 80 Gal. Oil-Lube Stationary Vertical Air Compressor

Features:

  • Single stage, oil lubricated, Twin-V cast iron pump with one piece cast iron crank case and thermally stable cast iron cylinder body

  • Automotive style ball bearings, durable stainless steel reed valves, oil level sight glass, easily accessible oil fill and a cast iron balanced fly wheel for easy maintenance, durability and convenience

  • Heavy-duty 4.7 HP, 208-240 spread Voltage induction motor

  • Full size metal belt guard for added motor protection and durability

  • Shipped with synthetic oil for optimum performance and long life

  • ASME certified tank meets all safety standards

What’s Included:

  • 4.7 HP Single Stage 80 Gallon Oil-Lube Stationary Vertical Air Compressor - PXCMLA4708065

  • 2 in. Tank Pressure Gauge

  • Synthetic Oil

Power Source

Corded

Drive System

Belt Drive

Amperage

22

Tank Construction

Cast Iron

Tank Orientation

Vertical

Tank Capacity

80 gal

Operating Pressure (PSI)

155

Lubrication

Oil-Lube

Tank Style

Stationary

Air Inlet Size

1/4 in

Horsepower

4.7

Voltage

208V/240V

Fitting Type

NPT

Warranty Term

2 Year Limited

Reviews :

Q & A :

Warranty:

Equipment Warranty - LIMITED WARRANTY

PORTER-CABLE CORPORATIONwarrants to the original purchaser that all products covered under this warranty are free from defects in material and workmanship. Products covered under this warranty include air compressors, air tools, service parts, pressure washers, and generators, which have the following warranty periods:

NEW CONDITION Items:

  • 3 YEARS - Limited warranty on 2-stage oil-free air compressor pumps that operate at 1725 RPM.
  • 2 YEARS - Limited warranty on oil-lubricated air compressor pumps.
  • 1 YEAR - Limited warranty on all other air compressor components.
  • 2 YEARS - Limited warranty on electric generator alternators.
  • 1 YEAR - Limited warranty on other generator components.
  • 2 YEARS - Limited warranty on pneumatic air tools as described in Porter-Cable general catalog.
  • 1 YEAR - Limited warranty on pressure washers used in consumer applications (i.e. personal residential household usage only).
  • 90 DAY - Pressure washers used for commercial applications (income producing) and service parts.
  • 1 YEAR - Limited warranty on all accessories.

RECONDITIONED Items:

  • 30 DAYS - Pressure Washers
  • 2 YEARS - Compressors
  • 2 YEARS - Generators

Porter-Cable will repair or replace, at Porter-Cable's option, products or components which have failed within the warranty period. Service will be scheduled according to the normal work flow and business hours at the service center location, and the availability of replacement parts. All decisions of Porter-Cable Corporation with regard to this limited warranty shall be final.

This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.

RESPONSIBILITY OF ORIGINAL PURCHASER (initial User):

  • To process a warranty claim on this product, DO NOT return it to the retailer. The product must be evaluated by a Porter-Cable Authorized Warranty Service Center. For the location of the nearest Porter-Cable Authorized Warranty Service Center call 1-888-559-8550, 24 hours a day, 7 days a week.
  • Retain original cash register sales receipt as proof of purchase for warranty work.
  • Use reasonable care in the operation and maintenance of the product as described in the Owners Manual(s).
  • Deliver or ship the product to the nearest Porter-Cable Authorized Warranty Service Center. Freight costs, if any, must be paid by the purchaser.
  • Air compressors with 60 and 80 gallon tanks will be inspected at the site of installation. Contact the nearest Porter-Cable Authorized Warranty Service Center that provides on-site service calls, for service call arrangements.
  • If the purchaser does not receive satisfactory results from the Porter-Cable Authorized Warranty Service Center , the purchaser should contact Porter-Cable.

THIS WARRANTY DOES NOT COVER:

  • Merchandise that has become damaged or inoperative because of ordinary wear, misuse*, cold, heat, rain, excessive humidity, freeze damage, use of improper chemicals, negligence, accident, failure to operate the product in accordance with the instructions provided in the Owners Manual(s) supplied with the product, improper maintenance, the use of accessories or attachments not recommended by Porter-Cable, or unauthorized repair or alterations.
  • *An air compressor that pumps air more than 50% during a one hour period is considered misuse because the air compressor is undersized for the required air demand.
  • Repair and transportation costs of merchandise determined not to be defective.
  • Costs associated with assembly, required oil, adjustments or other installation and start-up costs.
  • Expendable parts or accessories supplied with the product which are expected to become inoperative or unusable after a reasonable period of use, including but not limited to sanding disks or pads, saw and shear blades, grinding stones, springs, chisels, nozzles, o-rings, air jets, washers and similar accessories.
  • Merchandise sold by Porter-Cable which has been manufactured by and identified as the product of another company, such as gasoline engines. The product manufacturer's warranty, if any, will apply.
  • ANY INCIDENTAL, INDIRECT OR CONSEQUENTIAL LOSS, DAMAGE, OR EXPENSE THAT MAY RESULT FROM ANY DEFECT, FAILURE OR MALFUNCTION OF THE PRODUCT IS NOT COVERED BY THIS WARRANTY. Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you.
  • IMPLIED WARRANTIES, INCLUDING THOSE OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED TO ONE YEAR FROM THE DATE OF ORIGINAL PURCHASE. Some states do not allow limitations on how long an implied warranty lasts, so the above limitations may not apply to you.

Porter-Cable Corporation
Jackson, TN USA
1-888-559-8550
