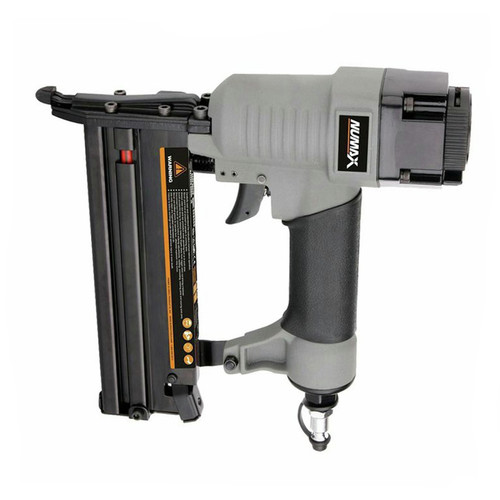

NuMax 23 Gauge 1 in. Headless Micro Pinner

NuMax Model: SP123
$40.99
promo-icon

Woodworking Buy More Save More! $500 off $3000 | $200 off $1500 | $50 off $500 Use Code: CRAFT500 See Details

See More
See Less
free shipping
FREE shipping on orders $49+.
free shipping
This item ships directly from manufacturer in 3-5 days
alert warning icon

OR PAY WITH

CA Residents
Prop 65 Warning
compliance warning icon
WARNING: This product can expose you to Lead, which is known to the State of California to cause Cancer and Birth Defect/Reproductive Harm. For more information go to www.P65Warnings.ca.gov.
NuMax 23 Gauge 1 in. Headless Micro Pinner NuMax Model: SP123
price for vip customer
$40.99

OR PAY WITH

Product Features & specs :

NuMax SP123 23 Gauge 1 in. Headless Micro Pinner

Details

The NuMax SP123 23-Gauge 1 in. Headless Micro Pinner is a woodworker's dream come true. The 23-Gauge pin this tool dispenses leaves a nearly invisible hole and still tackles any dense wood with ease. It's very simple to use and features a safety lock to prevent inadvertent firing. The durable and precise SP123 is extremely lightweight and easy to handle and can be used for all types of hobby work, jewelry cases, detailed trim, and many other projects. NuMax combines affordable pricing with high quality products for the ultimate value in a tool.

Features:

  • Black oxide aluminum magazine for added durability during repetitive use

  • Die-cast aluminum construction with aluminum cylinder for lightweight durability

  • Easy to use tool free pin size selector accommodates 1/2 - 1 in. pins

  • Trigger safety lock to prevent accidental firings

  • Anti-dust cap to keep internal components dust and debris free

What’s Included:

  • 23-Gauge 1 in. Headless Micro Pinner - SP123

  • Air Connector

  • Adjustment Tools

  • Lubricating Oil

  • Anti-Dust Cap

Power Source

Pneumatic

Nail Gauge

23

Fastener Type

Pin Nails

Fastener Length (Min.)

15/32 in

Tip Style

Non-Marring

Fastener Length (Max.)

1 in

Max. Fastener Length

1 in

Operating Pressure (PSI)

60 - 100

Lubrication

Oil-Lube

Fastener Capacity

100

Magazine Angle

Straight

Air Inlet Size

1/4 in

Firing Modes

Contact Actuation

Fitting Type

NPT

Min. Fastener Length

15/32 in

Fastener Gauge

23

Fastener Collation

Adhesive Collation

Depth of Drive

Adjustable

Magazine Type

Side Loading

Length

8.5 in.

Width

2 in.

Height

6.75 in.

Weight

3 lbs.

Warranty Term

1 Year

Reviews :

Q & A :

Warranty:

Numax Tools Warranty Information

1-Year Limited Warranty

This warranty of Numax Nail Guns extends exclusively to the original purchaser of the Numax Nailing Gun one (1) year from the original purchase date. PGP Inc. expressly warrants that the Numax Nail Gun is free from defect in materials and workmanship subject to the exceptions and limitations contained herein.

30 Day Limited Warranty

This Warranty of PGP INC.'S driver blades, bumpers, o-rings, piston rings , and gaskets (the Numax Wearing Parts" collectively with the Numax Nailing Guns the "Numax Product") extends exclusively to the original purchaser of the Numax Wearing Parts thirty (30) days from the original purchase date due to a defect in material and workmanship.

PGP Inc. shall repair or replace, at its option, a Numax Product that has a defect in materials or workmanship. The original purchaser must return the complete Numax Product, postage prepaid and insured, with proof of purchase to PGP Inc. or any of its authorized service centers. Other than the postage and insurance requirement, no charge will be made for repairs covered by this warranty.

These warranties do not apply to defects in materials or workmanship or damages resulting from repairs or alterations which have been made or attempted by others or the unauthorized use of nonconforming parts. They further do not apply if the damage is due to normal wear and tear, abuse, improper maintenance, neglect or accident or caused by use of the Numax Product after partial failure or use with improper accessories.

The Numax Product is intended for use by individuals and not for use on an assembly line, production line, or any commercial application. These warranties do not extend to such commercial use as it constitutes abuse of the Numax Product.

NO WARRANTY, ORAL OR WRITTEN, EXPRESSED OR IMPLIED, OTHER THAN. THE ABOVE WARRANTY IS MADE WITH REGARD TO THIS NUMAX PRODUCT. PGP INC. DISCLAIMS ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR USE OR PURPOSE, AND ALL OTHER WARRANTIES. IN NO EVENT SHALL PGP INC. BE LIABLE FOR ANY INCIDENTAL, SPECIAL, CONSEQUENTIAL OR PUNITIVE DAMAGES, OR FOR ANY COSTS, ATTORNEY FEES, EXPENSES, LOSSES OR DELAYS ALLEGED TO BE AS A CONSEQUENCE OF ANY DAMAGE TO, FAILURE OF, OR DEFECT IN ANY PRODUCT INCLUDING, BUT NOT LIMITED TO, ANY CLAIMS FOR LOSS OF PROFITS.

These warranties are the sole and exclusive warranties, express or implied for the Numax Product. No employee, agent, dealer or other person is authorized to alter, modify, expand or reduce the terms of these warranties or to make any other warranty on behalf of PGP Inc. These express limited warranties contains the entire agreement regarding express and implied warranties related to the Numax Product. No writing or languages in the purchase order or any other document shall be construed as an addition or alteration of PGP Inc.'s warranties of the Numax Product.

All matters related to the·sale and/or use of the Numax Product that is the subject of these limited warranties, along with the construction and enforcement of the terms of this limited warranties themselves, shall be subject to the laws of the state of Georgia. Any dispute arising out of the sale and/or use of the Numax Product that is the subject of these limited warranties shall be brought in Cherokee County, Georgia. Purchase and/or use of the Numax Product makes you subject to the benefits and limitations of these limited warranties. Accordingly, any writ, judgment or other
