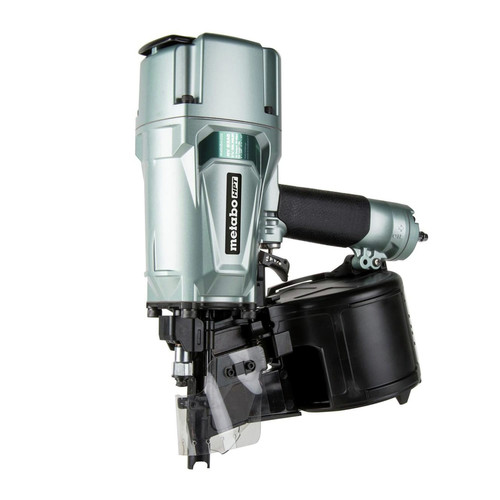

Metabo HPT Brushed 3-1/4 in. Coil Framing Nailer

Metabo HPT Model: NV83A5M
$399.00
free shipping
FREE shipping on orders $49+.
free shipping

Update Delivery Times
Enter your ZIP code to estimate delivery times.

alert warning icon

  • Last 2 In Stock

OR PAY WITH

CA Residents
Prop 65 Warning
compliance warning icon
WARNING: Cancer and Reproductive Harm -- www.P65Warnings.ca.gov
Metabo HPT Brushed 3-1/4 in. Coil Framing Nailer Metabo HPT Model: NV83A5M
price for vip customer
$399.00

OR PAY WITH

Product Features & specs :

power and speed

POWER AND SPEED

Cylinder valve drive mechanism provides quick response and rapid, powerful driving

selective actuation

SELECTIVE ACTUATION

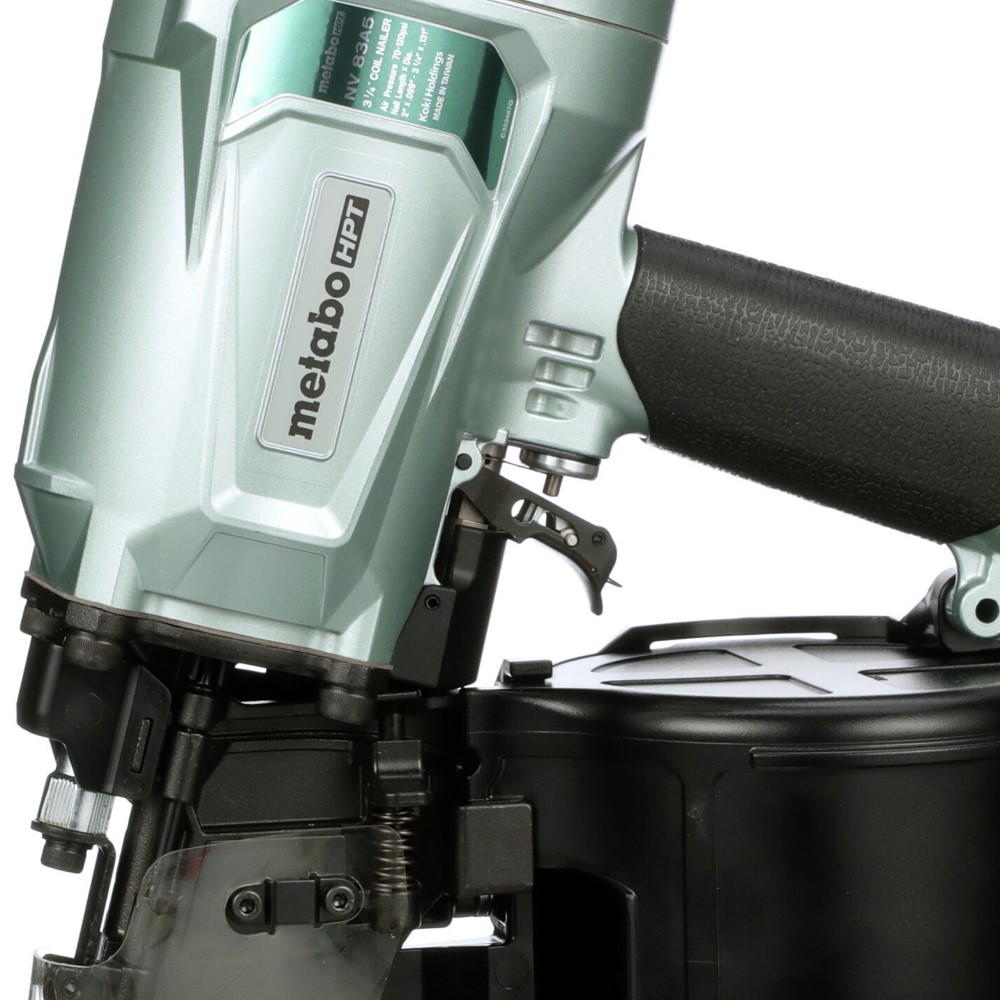

Selectable trigger mode; choose contact or single sequential actuation mode via switch in the trigger

quick reload

QUICK RELOAD

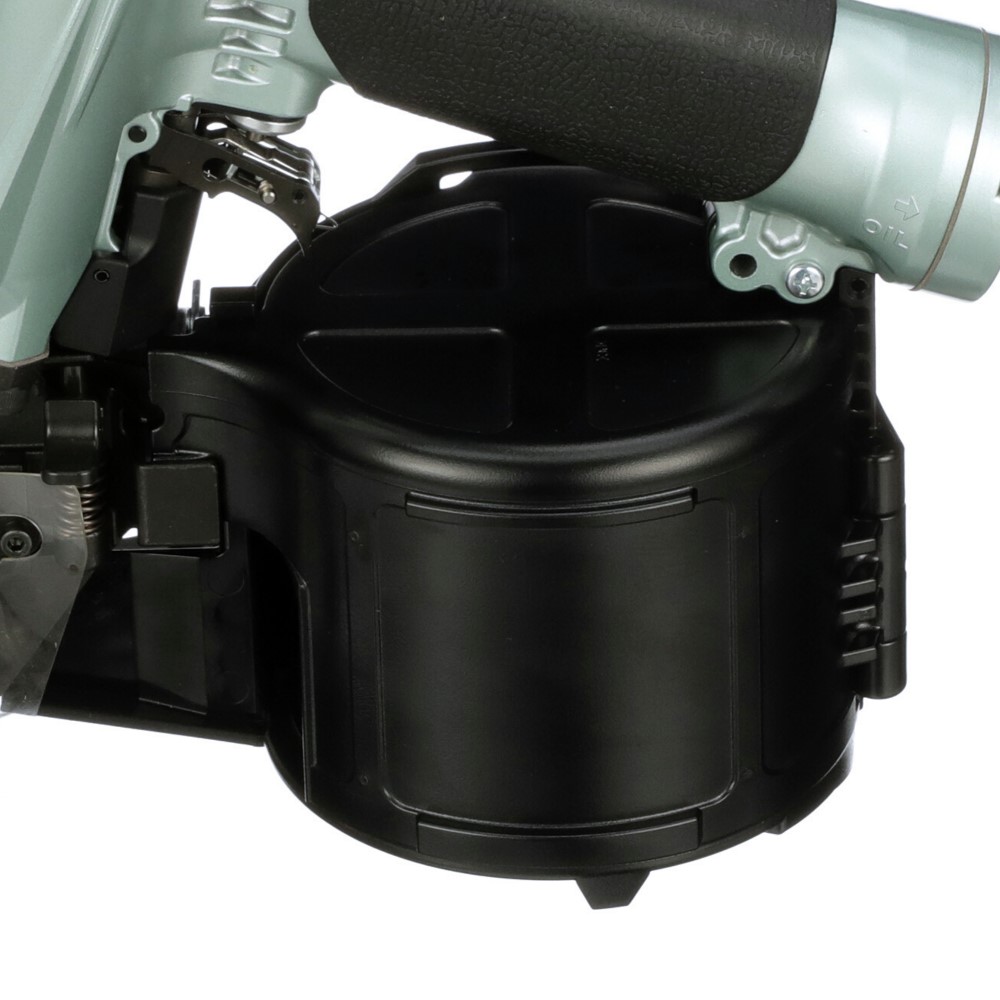

Side load pop-out magazine for fast and easy reloads

pro preferred nailers

PRO PREFERRED NAILERS

Product Brand Surveys in Builder and Developer Magazine for 8 years running (2014 - 2021)

Metabo HPT NV83A5M Brushed 3-1/4 in. Coil Framing Nailer

Details

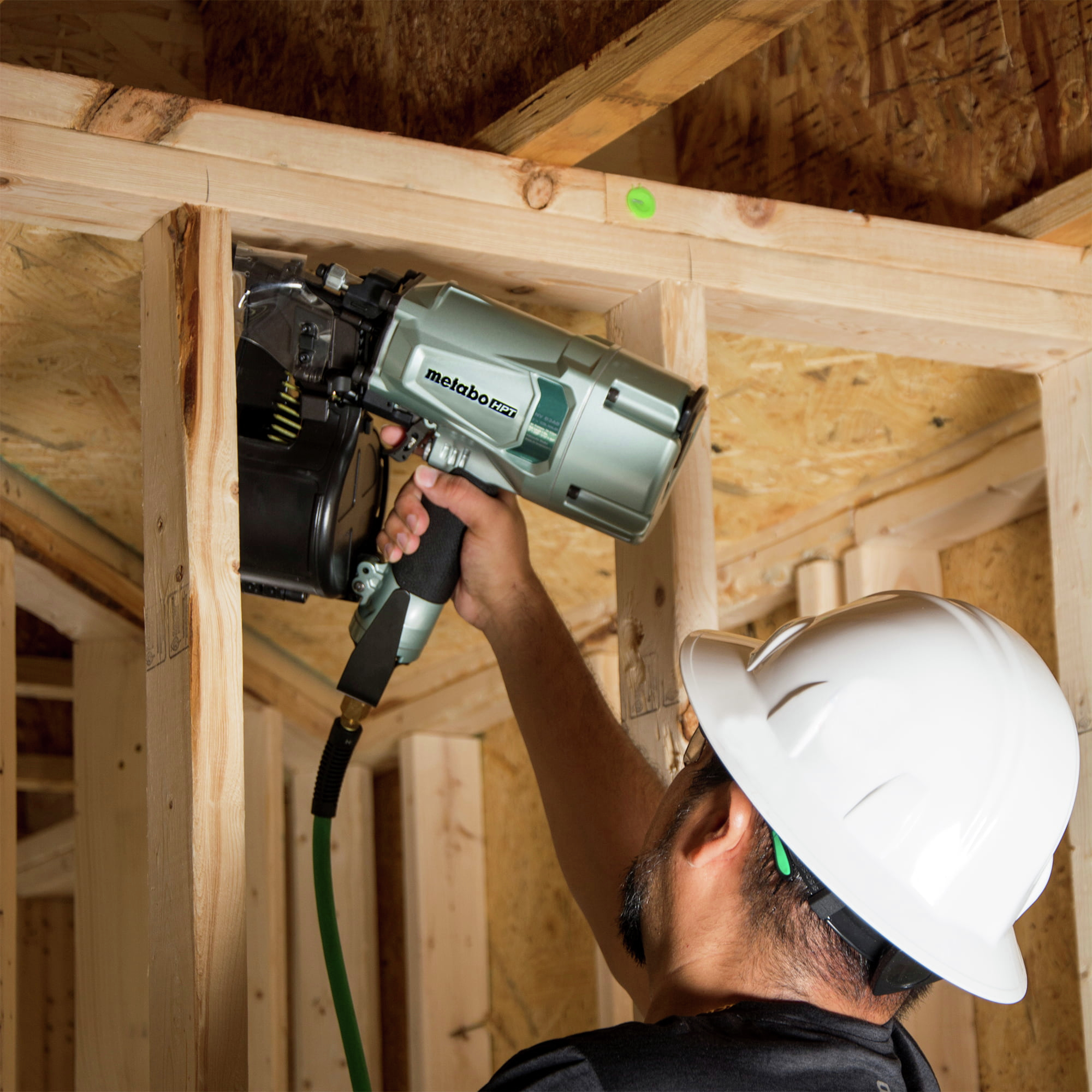

The Round Head Coil Framing Nailer is used for construction work such as wall sheathing, roof decking, subflooring, mobile and modular home construction, making of wooden boxes, pallets and drums, packing operations in manufacturing plants, and for other types of general packing and crating work. It is like the original NV83A that you have come to trust, but now with an improved trigger design and sharing all the same internal parts as the original NV83A .Relies on the same cylinder valve drive system as the NV83A, which offers both rapid response and great driving power.

Features:

  • Selective actuation on trigger allows for either sequential or contact nailing

  • Cylinder valve drive system for rapid response and increased durability

  • Rafter hook is included for convenience on the jobsite

  • Accepts both 30 degree paper strip collated clipped head nails and 30 degree paper strip collated offset round head nails

  • Equipped with an industrial 2-piece magazine that can withstand jobsite abuse

  • Open nose design for easy extraction of a jammed nail

  • Ergonomic non-slip rubber grip on handle helps maintain a secure hold and comfort during use

  • Hardened claw tip resists wear on the nose and minimizes slippage when driving at an angle or "toe-nailing"

  • 8.8 lbs (or 9.1 lbs if the rafter hook is installed) lightweight and well balanced for easy maneuverability

What’s Included:

  • Eye Protector

  • Hook

Power Source

Pneumatic

Operating Pressure - PSI

70 - 120

Fastener Type

Framing Nails

UL Safety

Yes

Fastener Length (Min.)

2 in

Jam Clearance

Open Nose

Motor Type

Brushed

Dry Fire Lockout

Yes

Fastener Length (Max.)

3-1/4 in

Max. Fastener Length

3-1/4 in

Operating Pressure (PSI)

70 - 120

CSA Safety

Yes

Fastener Capacity

300

Magazine Angle

16 Degrees

Air Inlet Size

1/4 in

Firing Modes

Contact/Sequential Actuation

Min. Fastener Length

2 in

Fastener Collation

Plastic Strip Collation

Depth of Drive

Tool-Free

ETL Safety

Yes

Magazine Type

Side Loading

Length

12 in.

Width

14.37 in.

Height

5.91 in.

Depth

12 in.

Weight

11.02 lbs.

Warranty Term

Lifetime
