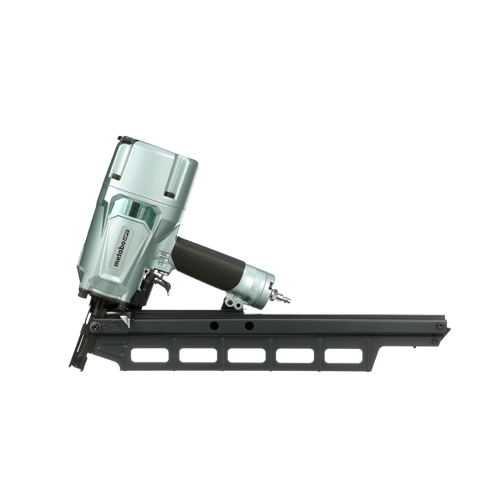

Metabo HPT 3-1/4 in. Plastic Collated Framing Nailer

Metabo HPT Model: NR83A5M
Price reduced from $349.99 to Save 6% $328.99
free shipping
FREE shipping on orders $49+.
free shipping

Update Delivery Times
Enter your ZIP code to estimate delivery times.

alert warning icon

  • Last 3 In Stock

OR PAY WITH

CA Residents
Prop 65 Warning
compliance warning icon
WARNING: Cancer and Reproductive Harm -- www.P65Warnings.ca.gov
Metabo HPT 3-1/4 in. Plastic Collated Framing Nailer Metabo HPT Model: NR83A5M
price for vip customer
Price reduced from $349.99 to Save 6% $328.99

OR PAY WITH

Product Features & specs :

easy switch between single to bump fire

EASY SWITCH BETWEEN SINGLE TO BUMP FIRE

Quickly switch between sequential and bump nailing with the simple flip of a switch

applications

APPLICATIONS

For framing, flooring, roof decking, window build-up, and more

pro preferred nailers

PRO PREFERRED NAILERS

Product Brand Surveys in Builder and Developer Magazine for 8 years running (2014 - 2021)

warranty

WARRANTY

Covered by Metabo HPT's professional 5-year Warranty

Metabo HPT NR83A5M 3-1/4 in. Plastic Collated Framing Nailer

Details

The Full Round Head Framing Nailer with Depth Adjustment is used for floor and wall framing, truss build-up, window build-up, construction of subflooring and roof decking, wall sheathing and mobile home and modular home construction. The Full Round Head Framing Nailer is like the original NR83A that you have come to trust, but now with an improved trigger design and sharing all the same internal parts as the original NR83A .It relies on the same cylinder valve drive system as the NR83A, which offers both rapid response and great driving power.

Features:

  • Selective actuation on trigger allows for either sequential or contact nailing

  • Rafter hook is included for convenience on the jobsite

  • Cylinder valve drive system for rapid response and increased durability

  • Tool-less depth of drive adjustment for improved control and flexibility when fastening into various types of wood

  • Accepts two strips of nails at a time and locking feeder system makes replenishments quick and easy

  • Open nose design for easy extraction of a jammed nail

  • Ergonomic non-slip rubber grip on handle helps maintain a secure hold and comfort during use

  • Hardened claw tip resists wear on the nose and minimizes slippage when driving at an angle or "toe-nailing"

  • 8.8 lbs (or 9.1 lbs if the rafter hook is installed) lightweight and well balanced for easy maneuverability

What’s Included:

  • 3-1/4 in. Plastic Collated Framing Nailer - NR83A5

  • Safety Glasses -875769

Power Source

Pneumatic

Operating Pressure - PSI

70 - 120

Fastener Type

Framing Nails

UL Safety

Yes

Fastener Length (Min.)

2 in

Jam Clearance

Open Nose

Motor Type

Brushed

Dry Fire Lockout

Yes

Fastener Length (Max.)

3-1/4 in

Max. Fastener Length

3-1/4 in

Operating Pressure (PSI)

70 - 120

CSA Safety

Yes

Fastener Capacity

64

Magazine Angle

21 Degrees

Firing Modes

Contact/Sequential Actuation

Min. Fastener Length

2 in

Fastener Collation

Plastic Strip Collation

Depth of Drive

Adjustable

ETL Safety

Yes

Magazine Type

Top Loading

Length

22.95 in.

Width

15.75 in.

Height

5.12 in.

Weight

11.4 lbs.

Warranty Term

Lifetime

Reviews :

Q & A :

Warranty:

Hitachi HXP Lithium Ion Warranty

Lifetime HXP Lithium Ion Tool Warranty

The product categories listed below are warranted to the original purchaser to be free from defect in materials and workmanship for a Lifetime from the original purchase date. Lifetime is defined as the serviceable life of the product. This is defined as the period during which all components are available.

  • Cordless Lithium Ion Blowers
  • Cordless Lithium Ion Circular Saws
  • Cordless Lithium Ion Driver Drills
  • Cordless Lithium Ion Hammer Drills
  • Cordless Lithium Ion Impact Drivers
  • Cordless Lithium Ion Impact Wrenches
  • Cordless Lithium Ion Jig Saws
  • Cordless Lithium Ion Reciprocating Saws
  • Cordless Solid Steel Shaft Grass Trimmers

2-Year HXP Lithium Ion Battery Warranty

1-Year HXP Lithium Ion Charger Warranty


Owner's Registration Card

The return of the Owner's Registration Card by the original purchaser within ten (10) days after the original purchase date is not a condition precedent to coverage under this warranty.

Warranty Coverage

This Hitachi Product is warranted by Hitachi Koki U.S.A., Ltd. (referred to hereinafter as Hitachi), 3950 Steve Reynolds Blvd. Norcross, GA 30093, against defective materials or workmanship.

This warranty is void if: defects in materials or workmanship or damages result from repairs or alterations which have been made or attempted by others or the unauthorized use of nonconforming parts; the damage is due to normal wear and tear, the damage is due to abuse (including overloading of the Hitachi Product beyond capacity), improper maintenance, neglect or accident: or the damage is due to use of the Hitachi Product after partial failure or use with improper accessories.

Warranty Performance

DURING THE ABOVE WARRANTY PERIOD, SHOULD YOUR HITACHI PRODUCT EXHIBIT A DEFECT IN MATERIALS OR WORKMANSHIP, SUCH DEFECT WILL BE REPAIRED WHEN THE COMPLETE HITACHI PRODUCT IS RETURNED, POSTAGE PREPAID AND INSURED, TO A HITACHI AUTHORIZED SERVICE CENTER. OTHER THAN THE POSTAGE AND INSURANCE REQUIREMENT, NO CHARGE WILL BE MADE FOR REPAIRS COVERED BY THIS WARRANTY.

Warranty Disclaimers

NO WARRANTY, ORAL OR WRITTEN, EXPRESSED OR IMPLIED, OTHER THAN THE ABOVE WARRANTY IS MADE WITH REGARD TO THIS HITACHI PRODUCT. HITACHI DISCLAIMS ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR USE OR PURPOSE, AND ALL OTHER WARRANTIES. IN NO EVENT SHALL HITACHI BE LIABLE FOR ANY INCIDENTAL, SPECIAL, CONSEQUENTIAL OR PUNITIVE DAMAGES, OR FOR ANY COSTS, ATTORNEY FEES, EXPENSES, LOSSES OR DELAYS ALLEGED TO BE AS A CONSEQUENCE OF ANY DAMAGE TO, FAILURE OF, OR DEFECT IN ANY PRODUCT INCLUDING, BUT NOT LIMITED TO, ANY CLAIMS FOR LOSS OF PROFITS.

Limitations On Warranty Disclaimers

Some states do not allow limitations on how long an implied warranty lasts, so the above limitations may not apply to you. Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you.

Please consult Hitachi's website www.hitachipowertools.com or call 1-800-829-4752 to locate your nearest service facility for warranty and non-warranty service on a Hitachi product.
