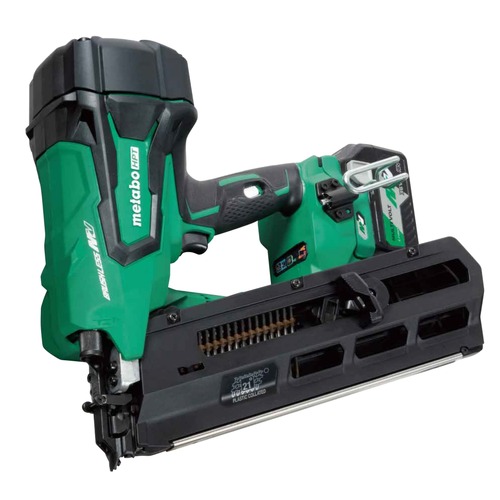

Metabo HPT MultiVolt 36V Brushless Lithium-Ion Cordless Paper Strip Framing Nailer Kit (2.5 Ah)
Metabo HPT Model: NR3690DCM
-
Last 6 In Stock
Product Features & specs :
PNEUMATIC-LIKE FEEL
The unique air spring drive system delivers similar performance as a pneumatic nailer
TOOL-LESS DEPTH ADJUSTMENT
Get a professional finish with varying materials with the tool-less depth of drive adjustment
POWER
Drives 900 Nails per charge using Metabo HPT's 2.5 Ah MultiVolt battery (included) or 1,200 Nails with the 4.0 Ah MultiVolt battery
FASTENERS
Accepts round head 30 degree paper strip collated nails from 2 Inch up to 3-1/2 inch in length and (0.113 to 0.131)
Metabo HPT NR3690DCM MultiVolt 36V Brushless Lithium-Ion Cordless Paper Strip Framing Nailer Kit (2.5 Ah)
Details
The 36V MultiVolt 3-1/2 in. Cordless Paper Strip Framing Nailer (NR3690DC) is here to maximize efficiency on the jobsite, this cordless nailer allows for a productivity boost as you do not have to navigate long hoses around the jobsite. The Cordless Paper Strip Framing Nailer delivers a driving speed of 3 nails per second, increasing productivity and saving you valuable time. Thanks to Metabo HPT’s unique Air Spring Drive System, this 36V Cordless Clipped Head Framing Nailer delivers a feel and performance similar to that of a pneumatic nailer. The pneumatic-like feel combined with the convenience and power of the MultiVolt battery allows you to work with this cordless nailer all day long, driving clipped or off-set nails from 2 in. up to 3-1/2 in. in length and 0.113 in. up to 0.131 in. in diameter. The included 2.5 Ah MultiVolt battery also drives 900 nails per charge. The Cordless Paper Framing Nailer is part of the expanding MultiVolt system of power tools from Metabo HPT. This nailer accepts any MultiVolt battery for extreme cordless power on the jobsite, and also accepts the unique 36V AC adapter to plug-in and work all day. Metabo HPT has been rated as the Pro Preferred Brand for nailers for 7 Years running (2014 - 2020) by Builder and Developer magazine, giving you the confidence that you have the right framing nailers for the job.
Features:
-
DRIVES: Up to 900 nails per charge with the included 2.5 Ah MultiVolt battery (371751M)
-
SPEED: Drive 3 nails per second
-
LIGHTWEIGHT: At only 10.6 lbs., and well-balanced allowing for ease of maneuverability and less user fatigue
-
AIR SPRING DRIVE SYSTEM: Delivers similar feel to a pneumatic nailer
-
SELECTIVE ACTUATION: Allows for quick changes between sequential and contact nailing with the flip of a switch
What’s Included:
-
MultiVolt 36V BL Li-Ion Paper Strip Framing Nailer - NR3690DC
-
(1) MultiVolt 36V/18V 2.5 Ah/5 Ah Lithium-Ion Battery - 371751M
-
36V/18V Lithium-Ion Rapid Charger w/ USB Port - UC18YSL3
-
3 mm Hex Wrench - 943277
-
4 mm Hex Wrench - 944458
-
Safety Glasses - 875769
-
Carrying Bag - 372294M
Power Source
Cordless
Fastener Type
Framing Nails
UL Safety
Yes
Wifi compatibility
No
Fastener Length (Min.)
2 in
Batteries Included
1
Jam Clearance
Open Nose
Battery Type
Li-Ion
Bluetooth Compatibility
No
Motor Type
Brushless
Battery Warranty
2 Year
Charger Included
Yes
Dry Fire Lockout
Yes
Fastener Length (Max.)
3-1/2 in
Max. Fastener Length
3-1/2 in
CSA Safety
Yes
Fastener Capacity
47
Case Included
Yes
Magazine Angle
30 Degrees
Case Type
Bag
Battery Amp Hour
2.5 Ah
Firing Modes
Full Sequential/Contact
Voltage
36V
Min. Fastener Length
2 in
Depth of Drive
Tool-Free
ETL Safety
Yes
Magazine Type
Rear Loading
Battery System
MultiVolt
Length
12.75 in.
Width
5 in.
Height
13.5 in.
Weight
10.6 lbs.
Warranty Term
Lifetime
Reviews :
Q & A :
Warranty:
Hitachi Tool Warranty
30-Day Satisfaction Guarantee
All Hitachi tools are inspected before they leave the factories to ensure the highest quality for customers. If you are not satisfied with any Hitachi tool within 30 days of purchase, please return the product with receipt to the original place of purchase for a refund or replacement. This guarantee covers power tools only. See the Hitachi "Limited Warranty" below for accessories & parts and further warranty information.
Professional 5-Year Limited Warranty
This warranty of Hitachi Power Tools (hereinafter the "Hitachi Product") extends to the original purchaser of the Hitachi Product.
Hitachi products are warranted to the original purchaser to be free from defect in materials and workmanship for a period of five (5) years from the original purchase date. (See exceptions below.)
Exceptions Include:
Lifetime HXP Lithium Ion Tool Warranty
The product categories listed below are warranted to the original purchaser to be free from defect in materials and workmanship for a Lifetime from the original purchase date. Lifetime is defined as the serviceable life of the product. This is defined as the period during which all components are available.
- Cordless Lithium Ion Blowers
- Cordless Lithium Ion Circular Saws
- Cordless Lithium Ion Driver Drills
- Cordless Lithium Ion Hammer Drills
- Cordless Lithium Ion Impact Drivers
- Cordless Lithium Ion Impact Wrenches
- Cordless Lithium Ion Jig Saws
- Cordless Lithium Ion Reciprocating Saws
2-Year HXP Lithium Ion Battery Warranty
1-Year HXP Lithium Ion Charger Warranty
Two Year Warranty
The product categories listed below are warranted to the original purchaser to be free from defect in materials and workmanship for a period of two (2) years from the original purchase date.
- Band Saws
- Belt & Disc Sanders
- Benchtop Metal Dry-Cut Saws
- Drill Presses
- Lithium Ion Batteries
- Planers
- Scroll Saws
- Table Saws
One Year Warranty
The product categories listed below are warranted to the original purchaser to be free from defect in materials and workmanship for a period of one (1) year from the original purchase date.
- Air Compressors
- Chargers
- Concrete Cutters
- Corded Grinders
- Corded Hammer Drills
- Corded Rotary Hammers
- Cordless Gas Nailers
- Cordless Grinders
- Cordless Rotary Hammers
- Demolition Hammers
- Generators
- NiCd & NiMH Batteries
- Radios
90-Day Warranty
The product categories listed below are warranted to the original purchaser to be free from defect in materials and workmanship for a period of ninety (90) days from the original purchase date.
- Bumpers
- Driver Blades
- Hammer Tackers
- Mallet Rubber Caps
- O-Rings
- Piston Cushions
- Ram Rubber Caps
- Ram Rubber Washers
- Shoe Base Pads
30-Day Warranty
The product category listed below is warranted to the original purchaser to be free from defect in materials and workmanship for a period of thirty (30) days from the original purchase date.
- Accessory Products
Warranty coverage is conditioned upon the purchaser furnishing Hitachi or its Authorized Service Center with adequate written proof of the original purchase date.
Owner's Registration Card
The return of the Owner's Registration Card by the original purchaser within ten (10) days after the original purchase date is not a condition precedent to coverage under this warranty.
Warranty Coverage
This Hitachi Product is warranted by Hitachi Koki U.S.A., Ltd. (referred to hereinafter as Hitachi), 3950 Steve Reynolds Blvd. Norcross, GA 30093, against defective materials or workmanship.
This warranty is void if: defects in materials or workmanship or damages result from repairs or alterations which have been made or attempted by others or the unauthorized use of nonconforming parts; the damage is due to normal wear and tear, the damage is due to abuse (including overloading of the Hitachi Product beyond capacity), improper maintenance, neglect or accident: or the damage is due to use of the Hitachi Product after partial failure or use with improper accessories.
Warranty Performance
DURING THE ABOVE WARRANTY PERIOD, SHOULD YOUR HITACHI PRODUCT EXHIBIT A DEFECT IN MATERIALS OR WORKMANSHIP, SUCH DEFECT WILL BE REPAIRED WHEN THE COMPLETE HITACHI PRODUCT IS RETURNED, POSTAGE PREPAID AND INSURED, TO A HITACHI AUTHORIZED SERVICE CENTER. OTHER THAN THE POSTAGE AND INSURANCE REQUIREMENT, NO CHARGE WILL BE MADE FOR REPAIRS COVERED BY THIS WARRANTY.
Warranty Disclaimers
NO WARRANTY, ORAL OR WRITTEN, EXPRESSED OR IMPLIED, OTHER THAN THE ABOVE WARRANTY IS MADE WITH REGARD TO THIS HITACHI PRODUCT. HITACHI DISCLAIMS ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR USE OR PURPOSE, AND ALL OTHER WARRANTIES. IN NO EVENT SHALL HITACHI BE LIABLE FOR ANY INCIDENTAL, SPECIAL, CONSEQUENTIAL OR PUNITIVE DAMAGES, OR FOR ANY COSTS, ATTORNEY FEES, EXPENSES, LOSSES OR DELAYS ALLEGED TO BE AS A CONSEQUENCE OF ANY DAMAGE TO, FAILURE OF, OR DEFECT IN ANY PRODUCT INCLUDING, BUT NOT LIMITED TO, ANY CLAIMS FOR LOSS OF PROFITS.
Limitations On Warranty Disclaimers
Some states do not allow limitations on how long an implied warranty lasts, so the above limitations may not apply to you. Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you.
Please consult Hitachi's website www.hitachipowertools.com or call 1-800-829-4752 to locate your nearest service facility for warranty and non-warranty service on a Hitachi product.
