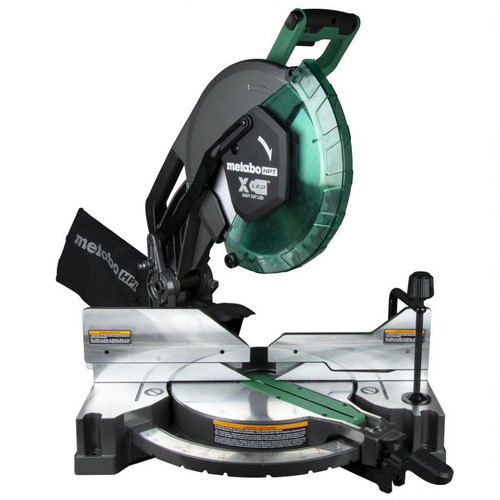

Metabo HPT Dual Bevel Compound 12 in. Corded Miter Saw with Xact Cut LED Shadow Line System
Metabo HPT Model: C12FDHBM
-
Last 1 In Stock
Product Features & specs :
FAST CUTS
Best-in-class 4,300 RPM no load speed
EXTREME CUT CAPACITY
Up to 7-in material vertically and 7-1/2-in nested against the sliding fence
PRECISION CUTS
With Xact Cut LED Shadow line
WARRANTY
Covered by Metabo HPT's professional 5-year Warranty
Metabo HPT C12FDHBM Dual Bevel Compound 12 in. Corded Miter Saw with Xact Cut LED Shadow Line System
Details
The C12FDHB is a 12 in. Dual Bevel Compound Miter Saw featuring the Xact Cut LED Shadow Line System and a whopping 7-3/32 in. cutting depth. This saw has the capacity to cut a 7 in. piece of baseboard standing up against the fence while also having the accuracy to cut higher-end molding with confidence in any lighting condition. With a miter range of 52 degrees left and right and a bevel range of 48 degrees left and right, you can accomplish anything the job may toss at you. This C12FDHB weighs in at 44 lbs. for a perfect combination of sturdiness and portability for the professional or DIYer looking for a time-saving miter saw at a great price. Additional features like a miter angle cam lock lever, miter detent bypass, multiple positive bevel stops, and an extra large dust collection port ensure you will save valuable time performing precision cutting work.
Features:
-
Xact Cut LED Shadow Line System - Accurately indicates where the blade will cut on the material
-
Compound Cutting - Wide range of miter and bevel cutting options
-
Fences - 7 in. tall sliding fences to support vertically and nested cut molding
-
Extra large base for great support and handling of material
-
Adjustment - Up-front miter and locks to easily adjust cut angles to best suit the application
What’s Included:
-
Dual Bevel 12 in. Miter Saw - C12FDHB
-
(1) 12 in. 40T TCT Saw Blade for Wood Cutting
-
Vise Assembly
-
6mm Hex Bar Wrench
Power Source
Corded
Amperage
15
Bevel Angle (Right)
48 Degrees
UL Safety
Yes
Wifi compatibility
No
Blade Diameter
12 in
Cutting Capacity (45 Miter Left/0 Bevel)
2-3/4 in x 5-11/16 in / 4-13/16 in x 1-3/16 in
Miter Angle (Left)
52 Degrees
Cutting Capacity (0 Miter/0 Bevel)
2-3/4 in x 8 in / 7-3/32 in x 1-1/16 in
Bluetooth Compatibility
No
Bevel Direction
Dual
Cutting Capacity (45 Miter Left/45 Bevel Right)
11/16 in x 5-11/16 in
Maximum Degree Miter Cuts - Left
52 Degrees
Arbor Size
1 in
Cutting Capacity (45 Miter Right/45 Bevel Right)
11/16 in x 5-11/16 in
No-Load Speed (RPM)
4300
Cutting Capacity (0 Miter/45 Bevel Right)
11/16 in x 8 in
Bevel Angle (Left)
48 Degrees
Slide System
No
Cutting Capacity (0 Miter/45 Bevel Left)
1-31/32 in x 8 in
Case Included
No
Cutting Capacity (45 Miter Right/0 Bevel)
2-3/4 in x 5-11/16 in / 4-1/32 in x 19/32 in
Positive Miter Detents
5
Miter Angle (Right)
52 Degrees
Miter Type
Compound
Cutting Capacity (45 Miter Left/45 Bevel Left)
1-3/16 in x 5-11/16 in
Voltage
120V
Dust Collection Type
Dust Bag
Cutting Capacity (45 Miter Right/45 Bevel Left)
1-3/16 in x 5-11/16 in
Weight
44.1 lbs.
Reviews :
Q & A :
Warranty:
Hitachi Tool Warranty
30-Day Satisfaction Guarantee
All Hitachi tools are inspected before they leave the factories to ensure the highest quality for customers. If you are not satisfied with any Hitachi tool within 30 days of purchase, please return the product with receipt to the original place of purchase for a refund or replacement. This guarantee covers power tools only. See the Hitachi "Limited Warranty" below for accessories & parts and further warranty information.
Professional 5-Year Limited Warranty
This warranty of Hitachi Power Tools (hereinafter the "Hitachi Product") extends to the original purchaser of the Hitachi Product.
Hitachi products are warranted to the original purchaser to be free from defect in materials and workmanship for a period of five (5) years from the original purchase date. (See exceptions below.)
Exceptions Include:
Lifetime HXP Lithium Ion Tool Warranty
The product categories listed below are warranted to the original purchaser to be free from defect in materials and workmanship for a Lifetime from the original purchase date. Lifetime is defined as the serviceable life of the product. This is defined as the period during which all components are available.
- Cordless Lithium Ion Blowers
- Cordless Lithium Ion Circular Saws
- Cordless Lithium Ion Driver Drills
- Cordless Lithium Ion Hammer Drills
- Cordless Lithium Ion Impact Drivers
- Cordless Lithium Ion Impact Wrenches
- Cordless Lithium Ion Jig Saws
- Cordless Lithium Ion Reciprocating Saws
2-Year HXP Lithium Ion Battery Warranty
1-Year HXP Lithium Ion Charger Warranty
Two Year Warranty
The product categories listed below are warranted to the original purchaser to be free from defect in materials and workmanship for a period of two (2) years from the original purchase date.
- Band Saws
- Belt & Disc Sanders
- Benchtop Metal Dry-Cut Saws
- Drill Presses
- Lithium Ion Batteries
- Planers
- Scroll Saws
- Table Saws
One Year Warranty
The product categories listed below are warranted to the original purchaser to be free from defect in materials and workmanship for a period of one (1) year from the original purchase date.
- Air Compressors
- Chargers
- Concrete Cutters
- Corded Grinders
- Corded Hammer Drills
- Corded Rotary Hammers
- Cordless Gas Nailers
- Cordless Grinders
- Cordless Rotary Hammers
- Demolition Hammers
- Generators
- NiCd & NiMH Batteries
- Radios
90-Day Warranty
The product categories listed below are warranted to the original purchaser to be free from defect in materials and workmanship for a period of ninety (90) days from the original purchase date.
- Bumpers
- Driver Blades
- Hammer Tackers
- Mallet Rubber Caps
- O-Rings
- Piston Cushions
- Ram Rubber Caps
- Ram Rubber Washers
- Shoe Base Pads
30-Day Warranty
The product category listed below is warranted to the original purchaser to be free from defect in materials and workmanship for a period of thirty (30) days from the original purchase date.
- Accessory Products
Warranty coverage is conditioned upon the purchaser furnishing Hitachi or its Authorized Service Center with adequate written proof of the original purchase date.
Owner's Registration Card
The return of the Owner's Registration Card by the original purchaser within ten (10) days after the original purchase date is not a condition precedent to coverage under this warranty.
Warranty Coverage
This Hitachi Product is warranted by Hitachi Koki U.S.A., Ltd. (referred to hereinafter as Hitachi), 3950 Steve Reynolds Blvd. Norcross, GA 30093, against defective materials or workmanship.
This warranty is void if: defects in materials or workmanship or damages result from repairs or alterations which have been made or attempted by others or the unauthorized use of nonconforming parts; the damage is due to normal wear and tear, the damage is due to abuse (including overloading of the Hitachi Product beyond capacity), improper maintenance, neglect or accident: or the damage is due to use of the Hitachi Product after partial failure or use with improper accessories.
Warranty Performance
DURING THE ABOVE WARRANTY PERIOD, SHOULD YOUR HITACHI PRODUCT EXHIBIT A DEFECT IN MATERIALS OR WORKMANSHIP, SUCH DEFECT WILL BE REPAIRED WHEN THE COMPLETE HITACHI PRODUCT IS RETURNED, POSTAGE PREPAID AND INSURED, TO A HITACHI AUTHORIZED SERVICE CENTER. OTHER THAN THE POSTAGE AND INSURANCE REQUIREMENT, NO CHARGE WILL BE MADE FOR REPAIRS COVERED BY THIS WARRANTY.
Warranty Disclaimers
NO WARRANTY, ORAL OR WRITTEN, EXPRESSED OR IMPLIED, OTHER THAN THE ABOVE WARRANTY IS MADE WITH REGARD TO THIS HITACHI PRODUCT. HITACHI DISCLAIMS ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR USE OR PURPOSE, AND ALL OTHER WARRANTIES. IN NO EVENT SHALL HITACHI BE LIABLE FOR ANY INCIDENTAL, SPECIAL, CONSEQUENTIAL OR PUNITIVE DAMAGES, OR FOR ANY COSTS, ATTORNEY FEES, EXPENSES, LOSSES OR DELAYS ALLEGED TO BE AS A CONSEQUENCE OF ANY DAMAGE TO, FAILURE OF, OR DEFECT IN ANY PRODUCT INCLUDING, BUT NOT LIMITED TO, ANY CLAIMS FOR LOSS OF PROFITS.
Limitations On Warranty Disclaimers
Some states do not allow limitations on how long an implied warranty lasts, so the above limitations may not apply to you. Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you.
Please consult Hitachi's website www.hitachipowertools.com or call 1-800-829-4752 to locate your nearest service facility for warranty and non-warranty service on a Hitachi product.
