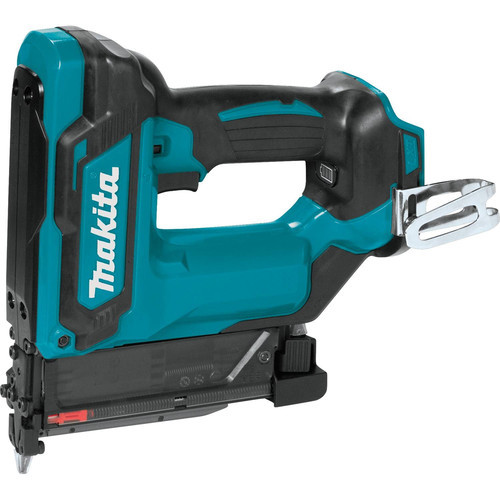

Makita 18V LXT Lithium-Ion Cordless 23 Gauge Pin Nailer (Tool Only)

Makita Model: XTP02Z
$239.00
free shipping
FREE shipping on orders $49+.
free shipping

Update Delivery Times
Enter your ZIP code to estimate delivery times.

alert warning icon

  • In Stock

OR PAY WITH

CA Residents
Prop 65 Warning
compliance warning icon
WARNING: Cancer and Reproductive Harm -- www.P65Warnings.ca.gov
Makita 18V LXT Lithium-Ion Cordless 23 Gauge Pin Nailer (Tool Only) Makita Model: XTP02Z
price for vip customer
$239.00

OR PAY WITH

Product Features & specs :

Makita XTP02Z 18V LXT Lithium-Ion Cordless 23 Gauge Pin Nailer (Tool Only)

Details

The Makita 18V LXT Lithium-Ion cordless pin nailer, 23 gal. (model XTP02Z, tool only), is a hose-free solution for installing casings, decorative trim, molding and baseboards. The XTP02Z is compact and powerful, and drives six different pin nail lengths (5/8 In., 11/16 In., 3/4 In., 1 In., 1-3/16 In., 1-3/8 In.) with a magazine capacity of up to 120 pins. Using the 18V LXT 5.0 Ah battery, the XTP02Z will drive up to 5,300 pins on a single charge. It's part of Makita's expanding 18V Lithium-Ion system, the world's largest cordless tool system powered by 18V Lithium-Ion slide-style batteries. Makita 18V Lithium-Ion batteries have the fastest charge times in their categories, so they spend more time working and less time sitting on the charger. For improved tool performance and extended battery life, Makita created STAR Protection computer controls. STAR Protection is communication technology that allows the star Protection-equipped tool and battery to exchange data in real time and monitor conditions during use to protect against overloading, over-discharging and overheating. For increased versatility, the tool can also be powered by Makita 18V LXT and compact Lithium-Ion batteries with the star symbol on the battery indicating STAR Protection inside.

Features:

  • Refined firing mechanism reduces recoil; reduces force required on the work surface when driving pins

  • Drives 6 different lengths of 23 gauge pins (5/8", 11/16", 3/4", 1", 1-3/16" and 1-3/8"); magazine capacity up to 120 pins

  • Anti-dry fire mechanism engineered to prevent driving blanks and damage to work surface

  • Cordless for increased convenience; eliminates the need for a compressor and air hose

  • "Tool-less" depth adjustment for precise flush and countersink finish

  • Contact trigger for improved accuracy and precision

  • Built-in L.E.D. light illuminates the work area

  • Ergonomically designed handle with rubberized soft grip provides increased comfort

  • Rubber bumpers protect the tool and surface from damage

  • Reversible tool hook allows the tool to remain close

  • Narrow nose design allows easy nailing access in confined areas

  • 3-stage L.E.D. gauge indicates battery charge level

  • Compact and ergonomic design at only 10-1/8" long

  • Weighs only 4.9 lbs. with battery (battery not included) for reduced operator fatigue

  • Equipped with Star Protection Computer Controls to protect against overloading, over-discharging and over-heating

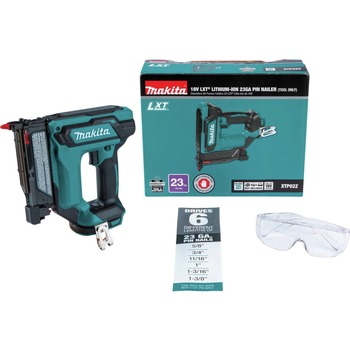

What’s Included:

  • Tool only (battery and charger not included)

  • Safety Glasses (195246-2)

  • (2) Nose No-Mar Tip, XTP02 (424955-9)

  • Belt Clip (346449-3)

  • Hex Wrench 3 (783201-2)

Power Source

Cordless

Fastener Type

Pin Nails

Wifi compatibility

No

Fastener Length (Min.)

5/8 in

Jam Clearance

Tool-Free

Battery Type

Li-Ion

Tip Style

Non-Marring

Bluetooth Compatibility

No

Motor Type

Brushed

Charger Included

No

Dry Fire Lockout

Yes

Fastener Length (Max.)

1-3/8 in

Max. Fastener Length

1-3/8 in

Lubrication

Oil-Lube

Fastener Capacity

120

Case Included

No

Magazine Angle

0 Degree/Straight

Firing Modes

Contact Actuation

Voltage

18V

Min. Fastener Length

5/8 in

Fastener Gauge

23

Depth of Drive

Tool-Free

Magazine Type

Bottom Loading

Battery System

LXT

Length

10.13 in.

Width

3.13 in.

Height

8.88 in.

Weight

4 lbs.

Warranty Term

3 Year

Reviews :

Q & A :

Warranty:

Warranty Information

Makita LXT Lithium-ion Tool Warranty

Every Makita® Lithium‐Ion Power Tool is thoroughly inspected and tested before leaving the factory. If you are not satisfied with any Makita Lithium‐Ion tool within 30 days of purchase, return it and Makita will provide, at Makita's option, a replacement or refund. Each Makita Lithium‐Ion Power Tool, Battery and Charger is warranted to be free of defects from workmanship and materials for the period of THREE YEARS from the date of original purchase. Should any trouble develop during the three‐year period for the Lithium‐Ion Power Tool, Battery and/or Charger, return the COMPLETE Power Tool, Battery and/or Charger, freight prepaid, to one of Makita's Factory or Authorized Service Centers.

If inspection shows the trouble is caused by defective workmanship or material, Makita will repair (or at our option, replace) without charge. This warranty does not apply to Makita Accessories, like flashlights.

This Warranty does not apply where:

  • Repairs have been made or attempted by others
  • Repairs are required because of normal wear and tear
  • The tool has been abused, misused or improperly maintained
  • Alterations have been made to the tool

  • In no event shall Makita be liable for any indirect, incidental or consequential damages from the sale or use of the product. This disclaimer applies to both during and after the term of this warranty. Makita disclaims liability for any implied warranties, including implied warranties of "merchantability" and "fitness" for a specific purpose, after the three-year term of this warranty. This warranty gives you specific legal rights, and you many also have other rights which vary from state to state. Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you.
