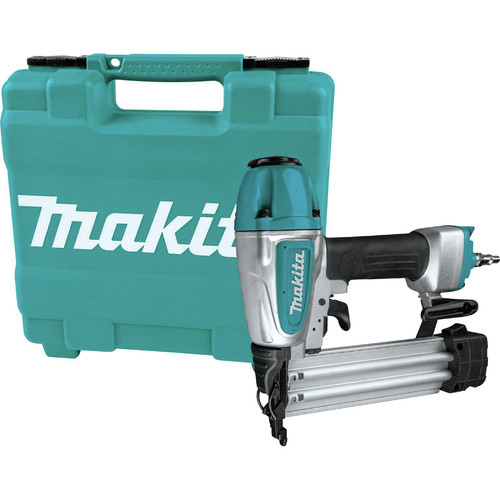

Makita 18 Gauge 2 in. Brad Nailer

Makita Model: AF506

Enter your email address and we'll let you know when it's available

OUT OF STOCK
CA Residents
Prop 65 Warning
compliance warning icon
WARNING: This product can expose you to chemicals including Lead, a chemical known to the State of California to cause Cancer and Birth Defect/Reproductive Harm and Lead and lead compounds, a chemical known to the State of California to cause Cancer. For more information go to www.P65Warnings.ca.gov.
Makita 18 Gauge 2 in. Brad Nailer Makita Model: AF506

Product Features & specs :

Makita AF506 18 Gauge 2 in. Brad Nailer

Details

The Makita 18 Gauge 2 in. Brad Nailer (model AF506), features a durable and compact design with ease-of-use features including a narrow-nose design that makes it ideal for a wide variety of finish applications.

The AF506 can operate from 70 to 120 PSI, and drives a range of 18 gauge brad nails from 5/8 in. to 2 in., and has a magazine capacity up to 100 nails. The cast-and-machined nose piece is engineered for precise contact with the workpiece, with a non-marring rubber nose engineered to protect the work surface.

Additional features include an ultra-narrow nose design that is ideal for fastening in confined areas, and a convenient tool-less depth adjustment dial that can be set for a wide variety of finish applications. For added convenience, the multi-directional exhaust port rotates 360 Degrees to direct exhaust air away from the user. The AF506 is engineered for driving a range of 18 Gauge brad nails from 5/8 in. to 2 in. into hard or soft wood applications and is ideal for trim work, baseboard and crown molding installation, flooring and other woodworking applications.

Features:

  • Powerful motor drives a range of 18 Gauge brad nails from 5/8 in. to 2 in. into hard or soft wood applications

  • Aluminum body, magazine and cylinder for strength and durability; weighs only 2.9 lbs.

  • Narrow nose design allows easy nailing access in confined areas

  • Built-in air duster provides convenient air flow to clear work surface

  • Easy to use tool-less depth adjustment dial for a wide variety of finish applications

  • Cast and machined nose piece for precise contact

  • Tool-less easy to clear nose for fast and easy nail extraction

  • Non-marring rubber nose and bumpers protect the wood's surface from being scratched or damaged

  • Reversible belt hook allows the tool to remain close

  • Dual nail reload indicator window alerts the user when to reload nails to avoid blank drives

What’s Included:

  • 18 Gauge 2 in. Brad Nailer - AF506

  • (2-Pc.) No-Mar Tips

  • Air Fitting

  • Pneumatic Nailer Oil

  • Safety Glasses

  • Tool Case

Power Source

Pneumatic

Nail Gauge

18

Fastener Type

Brad Nails

Fastener Length (Min.)

5/8 in

Jam Clearance

Tool-Free

Tip Style

No-Mar Tip

Fastener Length (Max.)

2 in

Max. Fastener Length

2 in

Operating Pressure (PSI)

70 - 120

Lubrication

Oil-Lube

Fastener Capacity

100

Magazine Angle

Straight

Air Inlet Size

1/4 in

Firing Modes

Contact

Fitting Type

NPT

Min. Fastener Length

5/8 in

Fastener Gauge

18

Average Air Consumption (SCFM)

1.5

Fastener Collation

Strip Collation

Depth of Drive

Adjustable

Magazine Type

Side Loading

Length

9.875 in.

Width

2.75 in.

Height

10.125 in.

Weight

2.9 lbs.

Warranty Term

3 Year
