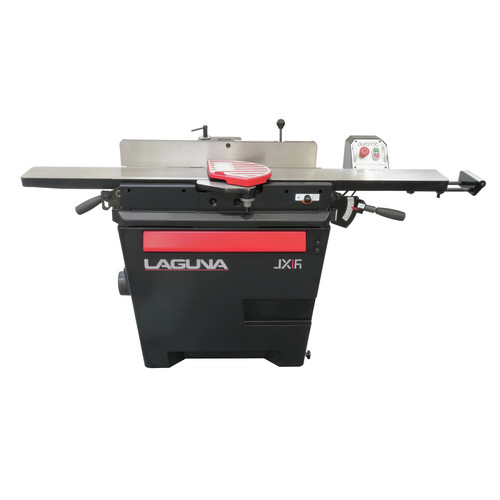

Laguna Tools JX6 QuadTec I 110V 13 Amp 1.5 HP 1-Phase Jointer Laguna Tools Model: 506601
price for vip customer
$2,198.00

OR PAY WITH

Product Features & specs :

Laguna Tools 506601 JX6 QuadTec I 110V 13 Amp 1.5 HP 1-Phase Jointer

Details

All-new for 2021, the Laguna JX6 QuadTec I is loaded with highly desirable features to make jointing safer and more enjoyable.

Features:

  • Parallelogram Table Adjustments - Table depth adjustments travel along an arc to keep the same distance to the cutterhead through its travel

  • Emergency "Knee-Stop" - The new knee stop uses a body-length bar at knee height to shut off the JX jointer. This important safety feature allows the machine operator to stop the machine quickly at any position along the front of the machine while keeping hands on the workpiece

  • New Ergonomic Machine Body - The new JX Series machine body has been redesigned with a "toe-kick" to allow the user to position themself closer to the machine tables and to move safer and easier along the length of the machine

  • In-feed Support Roller - Infeed tables are now fitted with pull out support roller to help support longer materials

  • QuadTec I Cutterhead - The all-new QuadTec I cuttherhead comes as standard equipment on the new JX-6. The QuadTec I produces an amazing surface finish on all woods including difficult hardwoods. The QuadTec I uses 4-sided carbide insert knives that are quieter and much more durable compared to straight HSS knives. The 4-sided knives can be rotated for a new cutting edge without the need for a knife setting jig

  • Built-In Wheels - No need to purchase a separate mobility kit

  • Cast-Iron Tables and Fence

What’s Included:

  • JX6 QuadTec I 110V 13 Amp 1.5 HP 1-Phase Jointer - 506601

Power Source

Corded

Fence Length

29 in

PreWired Voltage

110V

Amperage

13

UL Safety

No

Wifi compatibility

No

Fence Height

3.75 in

Bluetooth Compatibility

No

Cutterhead Speed (RPM)

5500

Cutterhead Diameter

2-1/2 in

Fence Tilt (Rear)

45 Degrees

Dust Port

Yes

CSA Safety

Yes

Fence Tilt (Front)

90 Degrees

Dust Port Size

4 in

Rabbeting Capacity

1/2 in

Table Height

31 in

Motor Phase

1

Horsepower

1.5

Voltage

110V

Max. Cut Capacity (Depth)

1/8 in

Length

63 in.

Width

22 in.

Height

31 in.

Weight

161 lbs.
