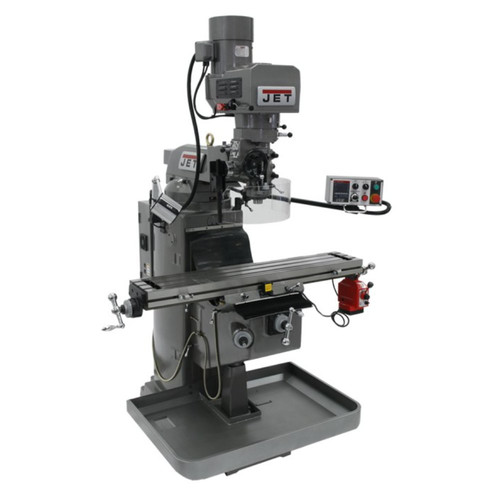

JET JTM-949EVS JTM-949EVS 230V 9 in. x 49 in. Mill with Newall DP700 DRO with X- and Y-Axis Powerfeeds

JET Model: JTM-949EVS
$22,289.00
See More
See Less
free shipping
FREE shipping on orders $49+.
free shipping
This item ships directly from the manufacturer.
alert warning icon

OR PAY WITH

CA Residents
Prop 65 Warning
compliance warning icon
WARNING: This product can expose you to Lead, which is known to the State of California to cause Cancer and Birth Defect/Reproductive Harm. For more information go to www.P65Warnings.ca.gov.
JET JTM-949EVS JTM-949EVS 230V 9 in. x 49 in. Mill with Newall DP700 DRO with X- and Y-Axis Powerfeeds JET Model: JTM-949EVS
price for vip customer
$22,289.00

OR PAY WITH

Product Features & specs :

JET JTM-949EVS JTM-949EVS 230V 9 in. x 49 in. Mill with Newall DP700 DRO with X- and Y-Axis Powerfeeds

Details

Constructed using the Meehanite casting process, the Jet JTM-949EVS 9 in. x 49 in. Electronic Variable Speed Milling Machines provide consistent ad reliable operation. The designed column and base incorporates a rigid, robust design. These Jet Mills have features you've come to expect and is backed by the industry-leading Jet warranty.

Features:

  • JET-designed Certified Meehanite casting with enhanced ribbing ensures rigidity and tolerance retention

  • Swing away control box houses an e-stop and puts all controls at the operators fingertips

  • The innovative design of the machine base provides an easier solution to level the machine without raising it up off the floor

  • Automatic oiler releases 3 - 6cc/cy of lubrication every 30 minutes

  • For added safety, the heavy-duty spindle break stops the spindle and interrupts the power, preventing accidental start-ups

  • The electrical box has been relocated to the back of the mill and houses two 115V outlets for powered accessories

  • Class 7 spindle bearings support the spindle for maximum rigidity in heavy cutting applications

  • Spindle head is internally cooled extending bearing, belt and motor life

  • Table and ways are hardened up to 54 HRC and precision ground for greater accuracy

  • The X and Y-Axis are coated with Turcite-B for reduced vibration and smooth movements

  • Swing away safety shield

  • CSA/CUS Certified

What’s Included:

  • JTM-949EVS 9 in. x 49 in. Mill with Newall DP700 DRO with X- and Y-Axis Powerfeeds - 690537

Power Source

Corded

PreWired Voltage

460V

UL Safety

No

Wifi compatibility

No

Spindle to Table Distance

20-3/4 in

Collet Capacity

1/8 in - 7/8 in

Spindle Speeds

Variable

Bluetooth Compatibility

No

Longitudinal Table Travel (X-Axis)

30-3/4 in

Motor Type

Brushed

Quill Down Feed Rates

0.0015 / 0.003 / 0.006

Quill Diameter

3-3/8 in

Head Movement

90 Degrees R/L 45 Degrees F/B

Table Capacity (lbs.)

720 lbs

T-Slot Size

5/8 in

Ram Travel

15-1/4 in

Spindle Speed Range

60 - 4500

CSA Safety

Yes

T-Slot Centers

2-1/2 in

Table Size

9 in x 49 in

Spindle Taper

R-8

Motor Phase

3

Spindle to Column Distance

4-3/4 - 18-1/8 in

Horsepower

3

Voltage

230V

No. of T-Slots

3

Spindle Travel

5 in

Cross Travel (Y-Axis)

12-5/8 in

ETL Safety

No

Length

67 in.

Width

64 in.

Height

86 in.

Weight

2420 lbs.

Warranty Term

2 Year
