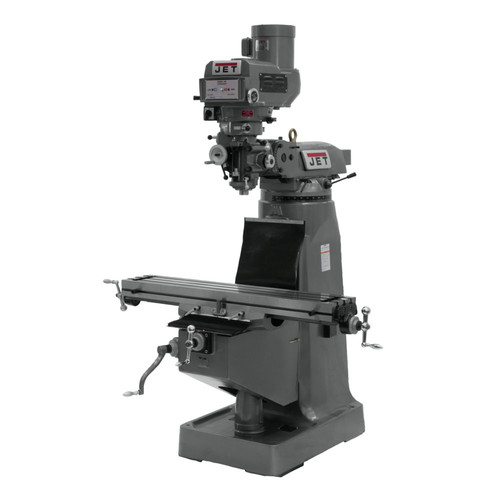

JET JTM-4VS Mill with 3-axis NEWALL DP700 DRO Quill JET Model: JTM-4VS
price for vip customer
Price reduced from $16,199.00 to Save 12% $14,309.00

OR PAY WITH

Product Features & specs :

JET JTM-4VS Mill with 3-axis NEWALL DP700 DRO Quill

Features:

  • Meehanite casting

  • Precision bored and honed milling head

  • Large diameter quill is chromed

  • High precision Class 7 spindle bearings

  • Chrome plated motor shaft has lower bearing support

  • Spindle head is internally cooled

  • Heavy duty splined motor drive

  • One piece quill pinion and shaft

  • Three stage power downfeed with automatic stop

  • Heavy duty spindle brake

  • Locks on all moveable surfaces

  • Precision hardened and ground ways, and precision ground table

  • Adjustable gibs throughout

  • Internal coolant tank built into base for use with coolant system (coolant pump not included)

What’s Included:

  • JTM-4VS, Mill with 3-axis NEWALL DP700 DRO Quill - 691202

  • Tolerance Test Sheet Included

  • One Shot Lubrication System

  • Way Covers

  • Draw Bar

  • Tool Box with Tools

Power Source

Corded

PreWired Voltage

460V

Wifi compatibility

No

Spindle to Table Distance

17-1/2 in

Collet Capacity

1/8 in - 7/8 in

Spindle Speeds

Variable

Bluetooth Compatibility

No

Longitudinal Table Travel (X-Axis)

34 in

Motor Type

Brushed

Quill Down Feed Rates

0.0015 / 0.003 / 0.006

Quill Diameter

3-3/8 in

Head Movement

90 Degrees R/L 45 Degrees F/B

Table Capacity (lbs.)

660 lbs

T-Slot Size

5/8 in

Ram Travel

13-3/8 in

Spindle Speed Range

60 - 4200

T-Slot Centers

2-1/2 in

Table Size

9 in x 49 in

Spindle Taper

R-8

Motor Phase

3

Spindle to Column Distance

4-1/2 - 19 in

Horsepower

3

Voltage

230V

No. of T-Slots

3

Spindle Travel

5 in

Cross Travel (Y-Axis)

12 in

Length

66 in.

Width

63 in.

Height

85 in.

Weight

2420 lbs.

Warranty Term

2 Year
