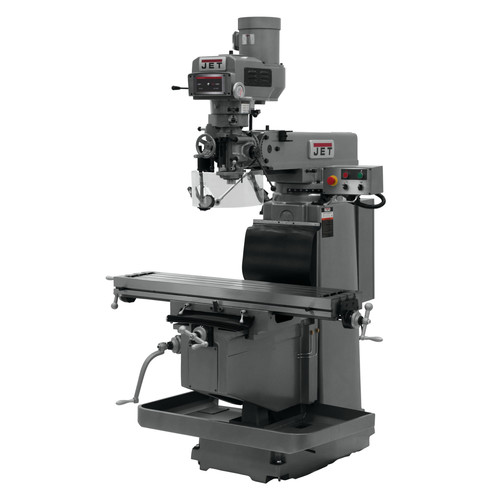

JET JTM-1254RVS 230/460V 3 PH Variable Speed Vertical Mill Machine

JET Model: JTM-1254RVS
$18,759.00
See More
See Less
free shipping
FREE shipping on orders $49+.
free shipping
This item ships directly from the manufacturer.
alert warning icon

OR PAY WITH

CA Residents
Prop 65 Warning
compliance warning icon
WARNING: This product can expose you to Lead, which is known to the State of California to cause Cancer and Birth Defect/Reproductive Harm. For more information go to www.P65Warnings.ca.gov.
JET JTM-1254RVS 230/460V 3 PH Variable Speed Vertical Mill Machine JET Model: JTM-1254RVS
price for vip customer
$18,759.00

OR PAY WITH

Product Features & specs :

JET JTM-1254RVS 230/460V 3 PH Variable Speed Vertical Mill Machine

Details

The JET JTM-1254RVS and JTM-1254VS combine durability, strength and precision engineering, resulting in 12 in. x 54 in. Variable Speed Vertical Milling Machines that turn out high quality components. Designed for ease of use, Jet Mills provide ongoing automatic lubrication and quick nut spindle feed along with the JET exclusive new casting, providing the end-user with an easier solution to leveling the machine without raising it up off the floor. These heavy-duty mills are offered in both R-8 and NT-40 Spindles with all the features you've come to expect backed by the industry-leading JET Two Year Warranty.

Features:

  • Certified Meehanite Castings

  • Precision bored and honed milling head

  • High precision Class 7 spindle bearings

  • Quick Spindle Feed Nut

  • Three-stage power downfeed with automatic stop

  • Heavy-duty spindle brake

  • Precision hardened and ground ways and table

  • Three Precision ground t-slots

  • Turcite B on X and Y Axis

  • Adjustable gibs throughout

What’s Included:

Power Source

Corded

PreWired Voltage

460V

UL Safety

No

Wifi compatibility

No

Spindle to Table Distance

23 in

Collet Capacity

1/8 in - 1 in

Spindle Speeds

Variable

Bluetooth Compatibility

No

Longitudinal Table Travel (X-Axis)

33-7/8 in

Motor Type

Brushed

Quill Down Feed Rates

0.0015 / 0.003 / 0.006

Quill Diameter

3-3/8 in

Head Movement

90 Degrees R/L 45 Degrees F/B

Table Capacity (lbs.)

925 lbs

T-Slot Size

5/8 in

Ram Travel

25 in

Spindle Speed Range

80 - 3800

CSA Safety

No

T-Slot Centers

2-1/2 in

Table Size

12 in x 54 in

Spindle Taper

R-8

Motor Phase

3

Spindle to Column Distance

7-1/2 - 27-3/4 in

Horsepower

5

Voltage

230V/460V

No. of T-Slots

3

Spindle Travel

5 in

Cross Travel (Y-Axis)

15-1/3 in

ETL Safety

No

Length

92.13 in.

Width

79.88 in.

Height

104.25 in.

Weight

3969 lbs.

Warranty Term

2 Year
