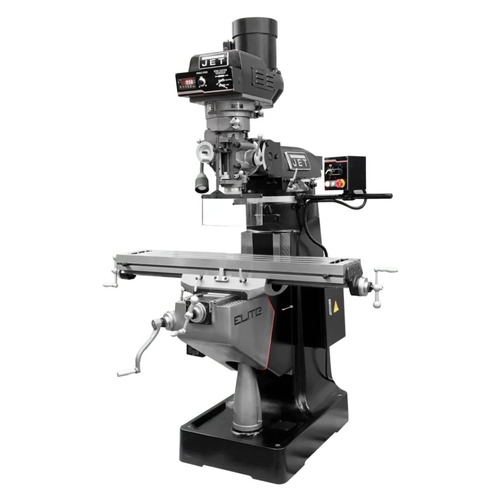

JET EVS-949 Mill with 3-Axis ACU-RITE 203 (Knee) DRO and X, Y-Axis Powerfeeds and Air Draw Bar JET Model: JT9-894327
price for vip customer
$32,419.00

OR PAY WITH

Product Features & specs :

JET JT9-894327 EVS-949 Mill with 3-Axis ACU-RITE 203 (Knee) DRO and X, Y-Axis Powerfeeds and Air Draw Bar

Details

Elite offers world class mills fully loaded with features. With Certified Meehanite castings, an electronic spindle brake that prevents accidental startups, and a hardened and ground table, this mill provides reliability and durability for milling a diverse variety of materials. Our patented vari-disc key provides up to 10 Times the wear resistance than aluminum or brass keys. The fully hardened Chromium Molybdenum spindle meets strict tolerance requirements and utilizes class 7210 (P4, ABEC-7) precision angular bearings for the industry-leading spindle taper runout of 0.00012 in., The Y- and Z-axis ways are hand scraped to a minimum of 16-Points per sq-in. for greater oil retention and smooth movements. Additionally, every 30 minutes, your Elite mill is automatically lubricated with a flow of 3 to 6 cc/cy. For operator safety, all Elite Mills are CSA/CUS Certified and come with a spindle safety guard.

Features:

  • Ball bearing support of the motor shaft ensures proper loading, support, and alignment for quiet, accurate operation at any speed

  • Heat treated and polished lead screws are supported by thrust bearings ensuring smooth, incremental movements of the table under load

  • Seamless, one-piece, steel quill is induction hardened and chromed for increased strength and precision ground for greater accuracy

  • Stainless steel Y-Axis way cover provides extra years of protection over the standard sheet metal cover

  • The mounted control box houses major mill functions as well as an emergency stop button

  • The table and saddle backlash is controlled by an advanced double nut design that eliminates end-play for precisely controlled lateral movements

  • Variable speed pulleys are ground and multiplane dynamically balanced, reducing vibration and ensuring smooth speed transitions

What’s Included:

  • EVS-949 Mill with 3-Axis ACU-RITE 203 (Knee) DRO and X, Y-Axis Powerfeeds and Air Draw Bar - 894327

Power Source

Corded

PreWired Voltage

230V

Amperage

18

Wifi compatibility

No

Spindle to Table Distance

18-3/4 in

Collet Capacity

1/8 in - 7/8 in

Spindle Speeds

Variable

Bluetooth Compatibility

No

Motor Type

Brushed

Quill Down Feed Rates

0.0015 / 0.003 / 0.006

Quill Diameter

3-3/8 in

Head Movement

90 Degrees R/L 45 Degrees F/B

Table Capacity (lbs.)

550 lbs

T-Slot Size

5/8 in

Ram Travel

14 in

Spindle Speed Range

60 - 5000

CSA Safety

Yes

T-Slot Centers

2-1/2 in

Table Size

9 in x 49 in

Spindle Taper

R-8

Motor Phase

3

Horsepower

3

Voltage

230V

No. of T-Slots

3

Spindle Travel

5 in

Length

68 in.

Width

63 in.

Height

84 in.

Weight

2300 lbs.
