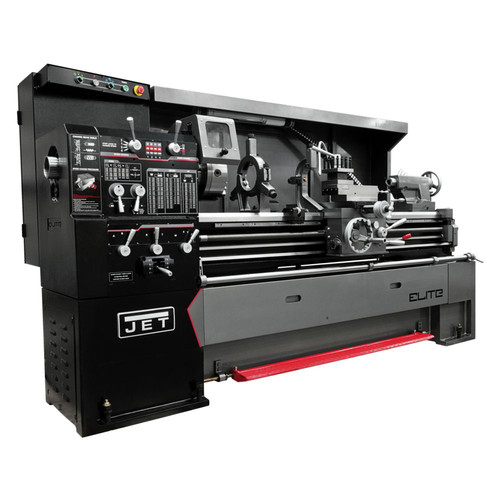

JET Elite Geared Head Lathe EGH-1740 with ACU-RITE 203 Digital Readout and Collet Closer

JET Model: JT9-892505
$43,399.00
See More
See Less
free shipping
FREE shipping on orders $49+.
free shipping
This item ships directly from the manufacturer.
alert warning icon

OR PAY WITH

CA Residents
Prop 65 Warning
compliance warning icon
WARNING: This product can expose you to Lead, which is known to the State of California to cause Cancer and Birth Defect/Reproductive Harm. For more information go to www.P65Warnings.ca.gov.
JET Elite Geared Head Lathe EGH-1740 with ACU-RITE 203 Digital Readout and Collet Closer JET Model: JT9-892505
price for vip customer
$43,399.00

OR PAY WITH

Product Features & specs :

JET JT9-892505 Elite Geared Head Lathe EGH-1740 with ACU-RITE 203 Digital Readout and Collet Closer

Details

Dependable, reliable, quality. Combining the durability and strength of Meehanite castings with precision engineering, Elite Geared Head Lathes turn out high quality components turn after turn. Designed with a universal gearbox to allow for a wide range of threading without gear changes, and Turcite-B coatings between the bed and carriage to provide smooth and accurate movement, these machines provide the perfect blend of performance and reliability you can come to expect from JET Elite.

Features:

  • 3-1/8 in. Spindle Bore

  • Nylon safety gears in the end train prevent overloading, increasing safety

  • Universal gearbox supports inch, metric, modular and diametral threads, without changing gears

  • Enclosed coolant system contains excess coolant for increased safety

  • Front facing chip pan allows easy chip removal from the front of the machine

  • Steady rests feature ball bearing guides for smooth material movements

  • Fully lit with CNC style lighting, the enclosed full length splash guard is expertly designed to contain all chips and coolant

  • Class 7 precision taper roller bearings keep spindle run out to a maximum of 0.0004

  • Hardened and ground gears in headstock reduce vibration and deflection

  • Wider bedways absorb vibration

What’s Included:

  • EGH-1740 W/ 203 & CC - 892505

Spindle Speed Settings

12

Power Source

Corded

Range of Inch Threads (TPI)

2 - 72

Spindle Bore Diameter

3-1/8 in

PreWired Voltage

230V

Max. Compound Slide Travel

6-2/7 in.

Bed Width

12 in

Swing Range (Cross Slide)

11 in

Range of Longitudinal Feeds (IPR)

0.0015 - 0.04 IPR

No. of Inch Threads

45

Bluetooth Compatibility

No

Cross Slide Travel

9-1/4 in

Spindle Speed Range (RPM)

36 - 1800

Compound Slide Travel

6-2/7 in

Range of Metric Threads

0.2 - 14

Steady Rest Capacity

3/8 in - 6-3/4 in

No. of Metric Threads

39

Range of Cross Feeds (IPR)

0.0008 - 0.02

Distance Between Centers

40 in

Tool Size

1 x 1 in

Gap Length

7-2/3 in

Motor Phase

3

Range of Longitudinal Feed Rates (IPR)

0.0015 - 0.04 in

Horsepower

7.5

Voltage

230V/460V

Spindle Travel (Tailstock)

5 in

Drive Type

Geared Head

Swing Range (Bed)

17 in

Max. Tailstock Spindle Travel

5 in.

Spindle Mount

Yes
