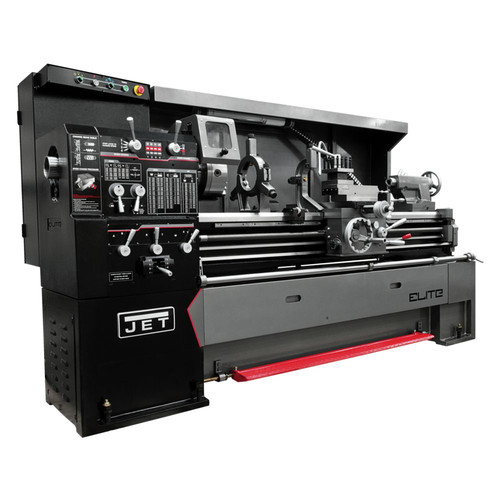

JET EGH-1740 with Taper Attacment

JET Model: JT9-892500
$38,999.00
See More
See Less
free shipping
FREE shipping on orders $49+.
free shipping
This item ships directly from manufacturer in 7-10 days
alert warning icon

OR PAY WITH

CA Residents
Prop 65 Warning
compliance warning icon
WARNING: This product can expose you to Lead, which is known to the State of California to cause Cancer and Birth Defect/Reproductive Harm. For more information go to www.P65Warnings.ca.gov.
JET EGH-1740 with Taper Attacment JET Model: JT9-892500
price for vip customer
$38,999.00

OR PAY WITH

Product Features & specs :

JET JT9-892500 EGH-1740 with Taper Attacment

Details

Dependable, reliable, quality. Combining the durability and strength of Meehanite castings with precision engineering, Elite Geared Head Lathes turn out high quality components turn after turn. Designed with a universal gearbox to allow for a wide range of threading without gear changes, and Turcite-B coatings between the bed and carriage to provide smooth and accurate movement, these machines provide the perfect blend of performance and reliability you can come to expect from JET Elite.

Features:

  • 3-1/8 in. Spindle Bore

  • Nylon safety gears in the end train prevent overloading, increasing safety

  • Universal gearbox supports inch, metric, modular and diametral threads, without changing gears

  • Enclosed coolant system contains excess coolant for increased safety

  • Front facing chip pan allows easy chip removal from the front of the machine

  • Steady rests feature ball bearing guides for smooth material movements

  • Fully lit with CNC style lighting, the enclosed full length splash guard is expertly designed to contain all chips and coolant

  • Class 7 precision taper roller bearings keep spindle run out to a maximum of 0.0004

  • Wider bedways absorb vibration

  • Hardened and ground gears in headstock reduce vibration and deflection

What’s Included:

  • EGH-1740 W/ TAK - 892500

Spindle Speed Settings

12

Power Source

Corded

Range of Inch Threads (TPI)

2 - 72

Spindle Bore Diameter

3-1/8 in

PreWired Voltage

230V

Amperage

22 / 11

UL Safety

No

Bed Width

12 in

Swing Range (Cross Slide)

11 in

No. of Inch Threads

45

Bluetooth Compatibility

No

Bed Construction

Cast Iron

Cross Slide Travel

9-1/4 in

Motor Type

Brushed

Spindle Speed Range (RPM)

1800

Compound Slide Travel

6-2/7 in

Range of Metric Threads

0.2 - 14

Steady Rest Capacity

3/8 in - 6-3/4 in

No. of Metric Threads

39

Range of Cross Feeds (IPR)

0.0008 - 0.02

Swing Range (Gap)

24-1/2 in

CSA Safety

Yes

Distance Between Centers

40 in

Tool Size

1 x 1 in

Gap Length

7-2/3 in

Motor Phase

3

Range of Longitudinal Feed Rates (IPR)

0.0015 - 0.04 in

Spindle Taper (Tailstock)

MT-4

Horsepower

7.5

Voltage

460V

Spindle Mount Taper

Yes

Spindle Travel (Tailstock)

5 in

Drive Type

Geared Head

Follow Rest Capcacity

1/2 - 3 in

Swing Range (Bed)

17 in

ETL Safety

No

Spindle Mount

Yes

Length

94 in.

Width

44 in.

Height

68 in.

Weight

3747 lbs.

Warranty Term

3 Year
