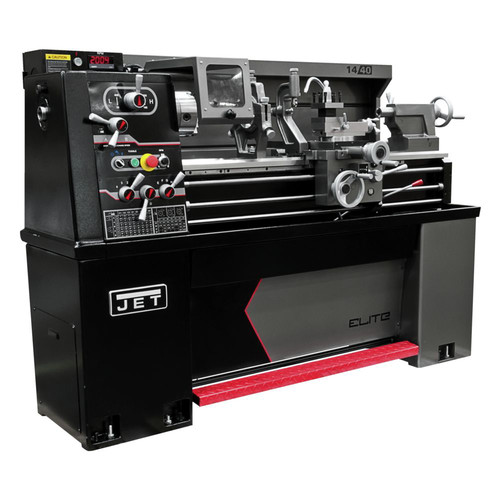

JET E-1440VS with ACU-RITE 203 DRO and Collet Closer

JET Model: JT9-892455
$26,729.00
See More
See Less
free shipping
FREE shipping on orders $49+.
free shipping
This item ships directly from the manufacturer.
alert warning icon

OR PAY WITH

CA Residents
Prop 65 Warning
compliance warning icon
WARNING: This product can expose you to Lead, which is known to the State of California to cause Cancer and Birth Defect/Reproductive Harm. For more information go to www.P65Warnings.ca.gov.
JET E-1440VS with ACU-RITE 203 DRO and Collet Closer JET Model: JT9-892455
price for vip customer
$26,729.00

OR PAY WITH

Product Features & specs :

JET JT9-892455 E-1440VS with ACU-RITE 203 DRO and Collet Closer

Details

EVS LATHES - COMPACT. POWERFUL. PERFECTION. These lathes pack large lathe features into compact footprints that make them perfect for schools, small shops, and engineering labs. Featuring an Electro-magnetic brake, 3 Jaw Chuck, ball bearing-mounted steady and follow rests and CNC Style Lighting with enclosed splash guard, these lathes are CSA / CUS Certified, and truly are Elite!

Features:

  • Electromagnetic assisted foot brake for rapid braking

  • Inverter drive system provides infinitely variable spindle speeds

  • Steady and follow rest feature double sealed ball bearing guides for smooth material movements

  • Chuck guards are standard equipment on all ELITE lathes for increased safety

  • Front facing chip pan allows easy chip removal from the front of the machine

  • 1-1/2 in. Spindle Bore

  • Two speed gearbox allows low speeds from 40-365 RPM to high speeds from 165-2000 RPM

  • Hardened and ground gears in headstock reduce vibration and deflection

  • Class 7 precision taper roller bearings keep spindle run out to a maximum of 0.0004

  • Fully lit with CNC style lighting, the enclosed full length splash guard is expertly designed to contain all chips and coolant

What’s Included:

  • E-1440VS with ACU-RITE 203 DRO and Collet Closer - 892455

Spindle Speed Settings

Variable

Power Source

Corded

Range of Inch Threads (TPI)

4 - 112

Spindle Bore Diameter

1-1/2 in

PreWired Voltage

230V

UL Safety

Yes

Bed Width

8-1/2 in

Swing Range (Cross Slide)

8-5/8 in

No. of Inch Threads

40

Bluetooth Compatibility

No

Bed Construction

Cast Iron

Cross Slide Travel

7 in

Motor Type

Brushed

Spindle Speed Range (RPM)

2200

Compound Slide Travel

4 in

Range of Metric Threads

0.45 - 7.5

Steady Rest Capacity

1/4 in - 2-3/4 in

No. of Metric Threads

22

Range of Cross Feeds (IPR)

0.0003 - 0.01

Swing Range (Gap)

20 in

CSA Safety

Yes

Distance Between Centers

40 in

Tool Size

7/8 x 7/8 in

Gap Length

9 in

Motor Phase

3

Range of Longitudinal Feed Rates (IPR)

0.0012 - 0.0294 in

Spindle Taper (Tailstock)

MT-3

Horsepower

3

Voltage

230V

Spindle Mount Taper

Yes

Spindle Travel (Tailstock)

4-3/4 in

Drive Type

Geared Head

Follow Rest Capcacity

1/4 - 2-3/8 in

No. of Longitudinal Feed Rates

80

No. of Cross Feed Rates

80

Swing Range (Bed)

14 in

ETL Safety

No

Spindle Mount

Yes

Length

77 in.

Width

30 in.

Height

58 in.

Weight

1653 lbs.

Warranty Term

3 Year
