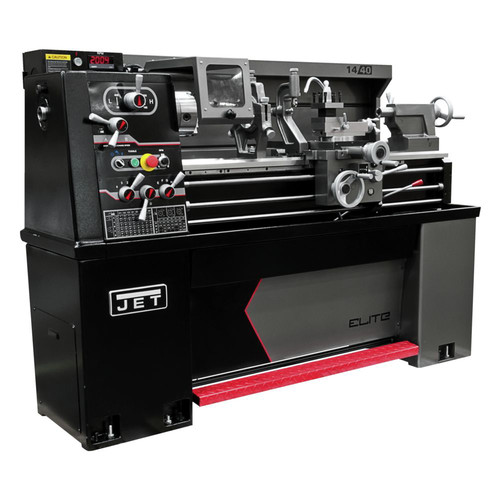

JET E-1340VS with ACU-RITE 303 CSS DRO, Taper Attachment and Collet Closer JET Model: JT9-892418
price for vip customer
$28,130.58

OR PAY WITH

Product Features & specs :

JET JT9-892418 E-1340VS with ACU-RITE 303 CSS DRO, Taper Attachment and Collet Closer

Details

EVS LATHES - COMPACT. POWERFUL. PERFECTION. These lathes pack large lathe features into compact footprints that make them perfect for schools, small shops, and engineering labs. Featuring an Electro-magnetic brake, 3 Jaw Chuck, ball bearing-mounted steady and follow rests and CNC Style Lighting with enclosed splash guard, these lathes are CSA / CUS Certified, and truly are Elite!

Features:

  • Electromagnetic assisted foot brake for rapid braking

  • Inverter drive system provides infinitely variable spindle speeds

  • Steady and follow rest feature double sealed ball bearing guides for smooth material movements

  • Chuck guards are standard equipment on all ELITE lathes for increased safety

  • Front facing chip pan allows easy chip removal from the front of the machine

  • 1-1/2 in. Spindle Bore

  • Two speed gearbox allows low speeds from 40-365 RPM to high speeds from 165-2000 RPM

  • Hardened and ground gears in headstock reduce vibration and deflection

  • Class 7 precision taper roller bearings keep spindle run out to a maximum of 0.0004

  • Fully lit with CNC style lighting, the enclosed full length splash guard is expertly designed to contain all chips and coolant

What’s Included:

  • E-1340VS with ACU-RITE 303 CSS DRO, Taper Attachment and Collet Closer - 892418

Power Source

Corded

Range of Inch Threads (TPI)

4 - 112

Spindle Bore Diameter

1-1/2 in

PreWired Voltage

230V

Max. Compound Slide Travel

3-1/2 in.

Bed Width

8-1/2 in

Swing Range (Cross Slide)

7-5/8 in

Range of Longitudinal Feeds (IPR)

0.0012 - 0.0294 IPR

No. of Inch Threads

40

Bluetooth Compatibility

No

Cross Slide Travel

6-1/2 in

Spindle Speed Range (RPM)

0 - 2200

Compound Slide Travel

3-1/2 in

Range of Metric Threads

0.45 - 7.5

Steady Rest Capacity

1/4 in - 2-3/4 in

No. of Metric Threads

22

Range of Cross Feeds (IPR)

0.0003 - 0.01

Swing Range (Gap)

19 in

CSA Safety

Yes

Distance Between Centers

40 in

Tool Size

5/8 x 5/8 in

Gap Length

9 in

Tailstock Spindle Taper

MT-3

Motor Phase

3

Range of Longitudinal Feed Rates (IPR)

0.0012 - 0.0294 in

Spindle Taper (Tailstock)

MT-3

Horsepower

3

Voltage

230V

Spindle Mount Taper

Yes

Spindle Travel (Tailstock)

4-3/4 in

Drive Type

EVS

No. of Longitudinal Feed Rates

80

No. of Cross Feed Rates

80

Swing Range (Bed)

13 in

Max. Tailstock Spindle Travel

4-3/4 in.

Spindle Mount

Yes
