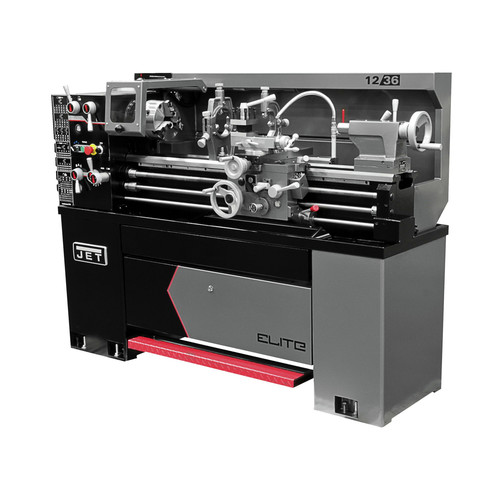

JET E-1236VS with ACU-RITE 303 CSS DRO and Collet Closer

JET Model: JT9-892317
$18,199.00
See More
See Less
free shipping
FREE shipping on orders $49+.
free shipping
This item ships directly from the manufacturer.
alert warning icon

OR PAY WITH

CA Residents
Prop 65 Warning
compliance warning icon
WARNING: This product can expose you to Lead, which is known to the State of California to cause Cancer and Birth Defect/Reproductive Harm. For more information go to www.P65Warnings.ca.gov.
JET E-1236VS with ACU-RITE 303 CSS DRO and Collet Closer JET Model: JT9-892317
price for vip customer
$18,199.00

OR PAY WITH

Product Features & specs :

JET JT9-892317 E-1236VS with ACU-RITE 303 CSS DRO and Collet Closer

Details

EVS LATHES - COMPACT. POWERFUL. PERFECTION. These lathes pack large lathe features into compact footprints that make them perfect for schools, small shops, and engineering labs. Featuring an Electro-magnetic brake, 3 Jaw Chuck, ball bearing-mounted steady and follow rests and CNC Style Lighting with enclosed splash guard, these lathes are CSA / CUS Certified, and truly are Elite!

Features:

  • Electromagnetic assisted foot brake for rapid braking

  • Inverter drive system provides infinitely variable spindle speeds

  • Steady and follow rest feature double sealed ball bearing guides for smooth material movements

  • Chuck guards are standard equipment on all ELITE lathes for increased safety

  • Front facing chip pan allows easy chip removal from the front of the machine

  • 1-9/16 in. Spindle Bore

  • Two speed gearbox allows low speeds from 40-365 RPM to high speeds from 165-2000 RPM

  • Hardened and ground gears in headstock reduce vibration and deflection

  • Class 7 precision taper roller bearings keep spindle run out to a maximum of 0.0004

  • Fully lit with CNC style lighting, the enclosed full length splash guard is expertly designed to contain all chips and coolant

What’s Included:

  • E-1236VS with ACU-RITE 303 CSS DRO and Collet Closer - 892317

Power Source

Corded

Range of Inch Threads (TPI)

2 - 56

Spindle Bore Diameter

1-9/16 in

PreWired Voltage

230V

Max. Compound Slide Travel

3-1/2 in.

Bed Width

7-1/2 in

Swing Range (Cross Slide)

7-5/16 in

Range of Longitudinal Feeds (IPR)

0.0016 - 0.046 IPR

No. of Inch Threads

34

Bluetooth Compatibility

No

Cross Slide Travel

6-3/4 in

Spindle Speed Range (RPM)

0 - 2000

Compound Slide Travel

3-1/2 in

Range of Metric Threads

0.5 - 12

Steady Rest Capacity

1/4 in - 2-1/2 in

No. of Metric Threads

33

Range of Cross Feeds (IPR)

0.0005 - 0.015

Swing Range (Gap)

17-1/2 in

CSA Safety

Yes

Distance Between Centers

36 in

Tool Size

1/2 x 1/2 in

Gap Length

9-1/2 in

Tailstock Spindle Taper

MT-3

Motor Phase

1 / 3

Range of Longitudinal Feed Rates (IPR)

0.0016 - 0.046 in

Spindle Taper (Tailstock)

MT-3

Horsepower

2

Voltage

230V

Spindle Mount Taper

Yes

Spindle Travel (Tailstock)

4 in

Drive Type

EVS

No. of Longitudinal Feed Rates

50

No. of Cross Feed Rates

50

Swing Range (Bed)

12 in

Max. Tailstock Spindle Travel

4 in.

Spindle Mount

Yes
