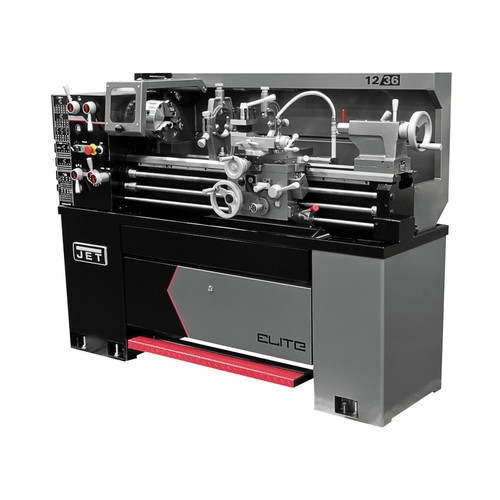

JET E-1236VS with ACU-RITE 203 DRO and Taper Attachment JET Model: JT9-892304
price for vip customer
$19,899.00

OR PAY WITH

Product Features & specs :

JET JT9-892304 E-1236VS with ACU-RITE 203 DRO and Taper Attachment

Details

EVS LATHES - COMPACT. POWERFUL. PERFECTION. These lathes pack large lathe features into compact footprints that make them perfect for schools, small shops, and engineering labs. Featuring an Electro-magnetic brake, 3 Jaw Chuck, ball bearing-mounted steady and follow rests and CNC Style Lighting with enclosed splash guard, these lathes are CSA / CUS Certified, and truly are Elite!

Features:

  • Electromagnetic assisted foot brake for rapid braking

  • Inverter drive system provides infinitely variable spindle speeds

  • Steady and follow rest feature double sealed ball bearing guides for smooth material movements

  • Chuck guards are standard equipment on all ELITE lathes for increased safety

  • Front facing chip pan allows easy chip removal from the front of the machine

  • 1-9/16 in. Spindle Bore

  • Two speed gearbox allows low speeds from 40-365 RPM to high speeds from 165-2000 RPM

  • Hardened and ground gears in headstock reduce vibration and deflection

  • Class 7 precision taper roller bearings keep spindle run out to a maximum of 0.0004

  • Fully lit with CNC style lighting, the enclosed full length splash guard is expertly designed to contain all chips and coolant

What’s Included:

  • E-1236VS with ACU-RITE 203 DRO and Taper Attachment - 892304

Spindle Speed Settings

Variable

Power Source

Corded

Range of Inch Threads (TPI)

2 - 56

Spindle Bore Diameter

1-9/16 in

Amperage

27 / 19

UL Safety

No

Bed Width

7-1/2 in

Swing Range (Cross Slide)

7-5/16 in

No. of Inch Threads

34

Bluetooth Compatibility

No

Bed Construction

Cast Iron

Cross Slide Travel

6-3/4 in

Motor Type

Brushed

Spindle Speed Range (RPM)

2000

Compound Slide Travel

3-1/2 in

Range of Metric Threads

0.5 - 12

Steady Rest Capacity

1/4 in - 2-1/2 in

No. of Metric Threads

33

Range of Cross Feeds (IPR)

0.0005 - 0.015

Swing Range (Gap)

17-1/2 in

CSA Safety

Yes

Distance Between Centers

36 in

Tool Size

1/2 x 1/2 in

Gap Length

9-1/2 in

Motor Phase

1 / 3

Range of Longitudinal Feed Rates (IPR)

0.0016 - 0.046 in

Spindle Taper (Tailstock)

MT-3

Horsepower

2

Voltage

230V

Spindle Mount Taper

Yes

Spindle Travel (Tailstock)

4 in

Drive Type

Geared Head

Follow Rest Capcacity

1/4 - 1-1/8 in

No. of Longitudinal Feed Rates

50

No. of Cross Feed Rates

50

Swing Range (Bed)

12 in

ETL Safety

No

Spindle Mount

Yes

Length

71 in.

Width

30 in.

Height

60 in.

Weight

1212 lbs.

Warranty Term

3 Year
