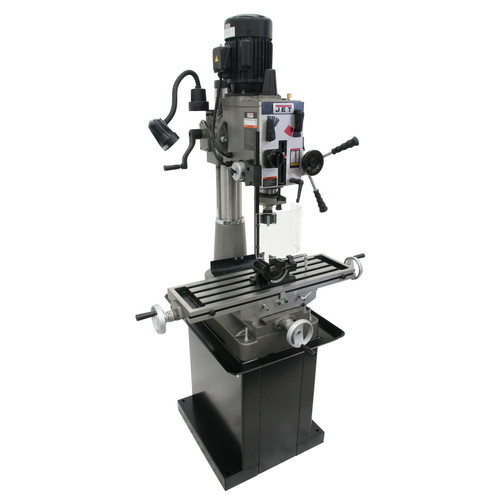

JET JMD-40GH Geared Head Mill Drill with Newall DP700 2-Axis DRO and X-Powerfeed

JET Model: JT9-351141
$9,659.00
See More
See Less
free shipping
FREE shipping on orders $49+.
free shipping
This item ships directly from the manufacturer.
alert warning icon

OR PAY WITH

CA Residents
Prop 65 Warning
compliance warning icon
WARNING: This product can expose you to Titanium Dioxide, which is known to the State of California to cause Cancer. For more information go to www.P65Warnings.ca.gov.
JET JMD-40GH Geared Head Mill Drill with Newall DP700 2-Axis DRO and X-Powerfeed JET Model: JT9-351141
price for vip customer
$9,659.00

OR PAY WITH

Product Features & specs :

JET JT9-351141 JMD-40GH Geared Head Mill Drill with Newall DP700 2-Axis DRO and X-Powerfeed

Details

Engineered for precision drilling, the heavy-duty JMD-40GHPF Round Column Geared Head Mill Drill with power downfeed is loaded with intuitive features for maximum accuracy.

Features:

  • Heavy-duty design allows for a variety of precision drilling applications

  • Full power to the cutting tools through 6 speed geared head

  • CSA/CUS: Following strict guidelines and electrical requirements, this JET Mill Drill is CSA/CUS certified

  • Spindle guard

  • Work Lamp

  • Calibrated fine down feed built in

  • Easy to read internal depth gauge

  • Head tilts left & right 90 degrees

  • Rapid spindle speed changes through quick-select gear shift levers

What’s Included:

Power Source

Corded

PreWired Voltage

230V

UL Safety

No

Wifi compatibility

No

Spindle to Table Distance

15-3/4 in

Spindle Speeds

6

Bluetooth Compatibility

No

Longitudinal Table Travel (X-Axis)

20-1/2 in

Motor Type

Brushed

Quill Diameter

3 in

Head Movement

90 Degrees R/L

T-Slot Size

5/8 in

Spindle Speed Range

65 - 1550

CSA Safety

Yes

Table Size

8-1/4 in x 28-3/4 in

Spindle Taper

R-8

Motor Phase

1

Horsepower

1.5

Voltage

115V/230V

No. of T-Slots

4

Spindle Travel

5 in

Cross Travel (Y-Axis)

8-1/4 in

ETL Safety

No

Length

28 in.

Width

39.25 in.

Height

42.5 in.

Weight

721 lbs.

Warranty Term

2 Year

Reviews :

Q & A :

Warranty:

JET RED ASSURANCE Program


Do you know about the JET RED ASSURANCE Program? Well, the JET RED ASSURANCE Program was designed to make sure you do! JET has the best and most dependable service in the Industry and they want to make sure you know about it. In addition, to their standard warranty JET offers the Industry's most dependable service and support guarantee. Click here to learn more about what JET RED ASSURANCE can do for you!


2-Year

WARRANTY AND SERVICE

WMH Tool Group, Inc., warrants every product it sells. If one of our tools needs service or repair, one of our Authorized Service Centers located throughout the United States can give you quick service. In most cases, any of these WMH Tool Group Authorized Service Centers can authorize warranty repair, assist you in obtaining parts, or perform routine maintenance and major repair on your JET® tools. For the name of an Authorized Service Center in your area, call 1-800-274-6848.

MORE INFORMATION
This warranty covers any defects in workmanship or materials subject to the exceptions stated below. Cutting tools, abrasives and other consumables are excluded from warranty coverage.

WARRANTY

This JET product carries a limited two-year warranty.

WHAT IS COVERED
This warranty covers any defects in workmanship or materials subject to the exceptions stated below. Cutting tools, abrasives and other consumables are excluded from warranty coverage.

WHO IS COVERED
This warranty covers only the initial purchaser of the product.

WHAT IS THE PERIOD OF COVERAGE
The general JET warranty lasts for the time period specified in the product literature of each product.

WHAT IS NOT COVERED
Five Year Warranties do not cover woodworking (WW) products used for commercial, industrial or educational purposes. Woodworking products with Five Year Warranties that are used for commercial, industrial or education purposes revert to a One Year Warranty. This warranty does not cover defects due directly or indirectly to misuse, abuse, negligence or accidents, normal wear-and-tear, improper repair or alterations, or lack of maintenance.

HOW TO GET SERVICE
The product or part must be returned for examination, postage prepaid, to a location designated by us. For the name of the location nearest you, please call 1-800-274-6848.
You must provide proof of initial purchase date and an explanation of the complaint must accompany the merchandise. If our inspection discloses a defect, we will repair or replace the product, or refund the purchase price, at our option. We will return the repaired product or replacement at our expense unless it is determined by us that there is no defect, or that the defect resulted from causes not within the scope of our warranty in which case we will, at your direction, dispose of or return the product. In the event you choose to have the product returned, you will be responsible for the handling and shipping costs of the return.

HOW STATE LAW APPLIES
This warranty gives you specific legal rights; you may also have other rights which vary from state to state.

LIMITATIONS ON THIS WARRANTY
WMH TOOL GROUP LIMITS ALL IMPLIED WARRANTIES TO THE PERIOD OF THE LIMITED WARRANTY FOR EACH PRODUCT. EXCEPT AS STATED HEREIN, ANY IMPLIED WARRANTIES OR MERCHANTABILITY AND FITNESS ARE EXCLUDED. SOME STATES DO NOT ALLOW LIMITATIONS ON HOW LONG THE IMPLIED WARRANTY LASTS, SO THE ABOVE LIMITATION MAY NOT APPLY TO YOU. WMH TOOL GROUP SHALL IN NO EVENT BE LIABLE FOR DEATH, INJURIES TO PERSONS OR PROPERTY, OR FOR INCIDENTAL, CONTINGENT, SPECIAL, OR CONSEQUENTIAL DAMAGES ARISING FROM THE USE OF OUR PRODUCTS. SOME STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATION OR EXCLUSION MAY NOT APPLY TO YOU.

WMH Tool Group sells through distributors only. The specifications in WMH catalogs are given as general information and are not binding. Members of WMH Tool Group reserve the right to effect at any time, without prior notice, those alterations to parts, fittings, and accessory equipment which they may deem necessary for any reason whatsoever.
