JET GH-1440B Geared Head Bench Lathe with DP500N JET Model: JT9-323446
price for vip customer
$15,899.00

OR PAY WITH

Product Features & specs :

JET JT9-323446 GH-1440B Geared Head Bench Lathe with DP500N

Details

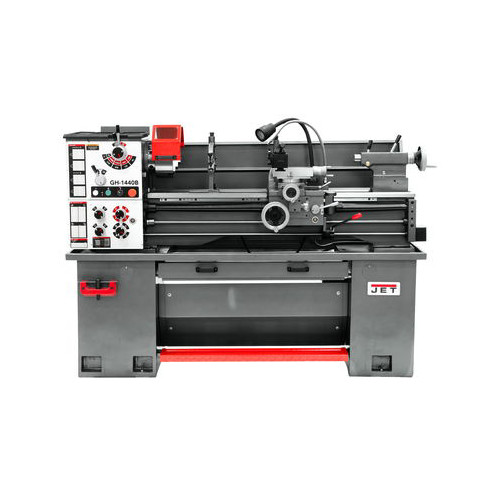

This new JET GH-1440B Geared Head Bench Lathe is engineered for smooth, quiet operation and user versatility. Positioned on a heavy-duty stand with a newly added built-in footbrake, the GH-1440B includes precision induction hardened ground bed-ways, spindle roller bearings, and high-quality steel hardened gears in the headstock for ultimate working durability. The GH1440B also includes a patented electronic chuck key docking station that prevents startup without the chuck key when safely docked.

Features:

  • Precision spindle roller bearings

  • High quality steel hardened gears in headstock

  • Lead screw cover

  • Cast iron Stand

  • Foot Brake comes standard

  • Emergency Stop within easy reach of the Operator

  • Chuck Guard

  • Electronic Chuck Key Docking Station, provides Operator safety as the Lathe will not turn without the chuck key being docked

  • Mounted on Cast Iron stand with foot pedal, coolant, chuck key docking station ready to use

What’s Included:

  • GH-1440B Geared Head Bench with DP500N-JETN323446

Spindle Speed Settings

8

Power Source

Corded

Range of Inch Threads (TPI)

4 - 56

Spindle Bore Diameter

2 in

UL Safety

Yes

Bed Width

7-6/50 in

Swing Range (Cross Slide)

8 in

No. of Inch Threads

34

Bluetooth Compatibility

No

Bed Construction

Cast Iron

Cross Slide Travel

7 in

Motor Type

Brushed

Spindle Speed Range (RPM)

1900

Compound Slide Travel

3-1/2 in

Range of Metric Threads

0.4 - 7

Steady Rest Capacity

5/16 in - 2-15/16 in

No. of Metric Threads

26

Range of Cross Feeds (IPR)

0.007 - 0.0187

Swing Range (Gap)

20 in

CSA Safety

No

Distance Between Centers

36-7/8 in

Tool Size

4/5 x 4/5 in

Gap Length

8 in

Motor Phase

1

Range of Longitudinal Feed Rates (IPR)

0.002 - 0.0548 in

Spindle Taper (Tailstock)

MT-4

Horsepower

2

Voltage

230V

Spindle Mount Taper

Yes

Carriage Travel

37-2/5 in

Spindle Travel (Tailstock)

4 in

Follow Rest Capcacity

2-3/16 in

No. of Longitudinal Feed Rates

32

No. of Cross Feed Rates

32

Swing Range (Bed)

14 in

ETL Safety

No

Spindle Mount

Yes

Length

76.4063 in.

Width

29.9063 in.

Height

59.8125 in.

Weight

1753 lbs.

Warranty Term

2 Year

Reviews :

Q & A :

Warranty:

JET RED ASSURANCE Program


Do you know about the JET RED ASSURANCE Program? Well, the JET RED ASSURANCE Program was designed to make sure you do! JET has the best and most dependable service in the Industry and they want to make sure you know about it. In addition, to their standard warranty JET offers the Industry's most dependable service and support guarantee. Click here to learn more about what JET RED ASSURANCE can do for you!


2-Year

WARRANTY AND SERVICE

WMH Tool Group, Inc., warrants every product it sells. If one of our tools needs service or repair, one of our Authorized Service Centers located throughout the United States can give you quick service. In most cases, any of these WMH Tool Group Authorized Service Centers can authorize warranty repair, assist you in obtaining parts, or perform routine maintenance and major repair on your JET® tools. For the name of an Authorized Service Center in your area, call 1-800-274-6848.

MORE INFORMATION
This warranty covers any defects in workmanship or materials subject to the exceptions stated below. Cutting tools, abrasives and other consumables are excluded from warranty coverage.

WARRANTY

This JET product carries a limited two-year warranty.

WHAT IS COVERED
This warranty covers any defects in workmanship or materials subject to the exceptions stated below. Cutting tools, abrasives and other consumables are excluded from warranty coverage.

WHO IS COVERED
This warranty covers only the initial purchaser of the product.

WHAT IS THE PERIOD OF COVERAGE
The general JET warranty lasts for the time period specified in the product literature of each product.

WHAT IS NOT COVERED
Five Year Warranties do not cover woodworking (WW) products used for commercial, industrial or educational purposes. Woodworking products with Five Year Warranties that are used for commercial, industrial or education purposes revert to a One Year Warranty. This warranty does not cover defects due directly or indirectly to misuse, abuse, negligence or accidents, normal wear-and-tear, improper repair or alterations, or lack of maintenance.

HOW TO GET SERVICE
The product or part must be returned for examination, postage prepaid, to a location designated by us. For the name of the location nearest you, please call 1-800-274-6848.
You must provide proof of initial purchase date and an explanation of the complaint must accompany the merchandise. If our inspection discloses a defect, we will repair or replace the product, or refund the purchase price, at our option. We will return the repaired product or replacement at our expense unless it is determined by us that there is no defect, or that the defect resulted from causes not within the scope of our warranty in which case we will, at your direction, dispose of or return the product. In the event you choose to have the product returned, you will be responsible for the handling and shipping costs of the return.

HOW STATE LAW APPLIES
This warranty gives you specific legal rights; you may also have other rights which vary from state to state.

LIMITATIONS ON THIS WARRANTY
WMH TOOL GROUP LIMITS ALL IMPLIED WARRANTIES TO THE PERIOD OF THE LIMITED WARRANTY FOR EACH PRODUCT. EXCEPT AS STATED HEREIN, ANY IMPLIED WARRANTIES OR MERCHANTABILITY AND FITNESS ARE EXCLUDED. SOME STATES DO NOT ALLOW LIMITATIONS ON HOW LONG THE IMPLIED WARRANTY LASTS, SO THE ABOVE LIMITATION MAY NOT APPLY TO YOU. WMH TOOL GROUP SHALL IN NO EVENT BE LIABLE FOR DEATH, INJURIES TO PERSONS OR PROPERTY, OR FOR INCIDENTAL, CONTINGENT, SPECIAL, OR CONSEQUENTIAL DAMAGES ARISING FROM THE USE OF OUR PRODUCTS. SOME STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATION OR EXCLUSION MAY NOT APPLY TO YOU.

WMH Tool Group sells through distributors only. The specifications in WMH catalogs are given as general information and are not binding. Members of WMH Tool Group reserve the right to effect at any time, without prior notice, those alterations to parts, fittings, and accessory equipment which they may deem necessary for any reason whatsoever.
