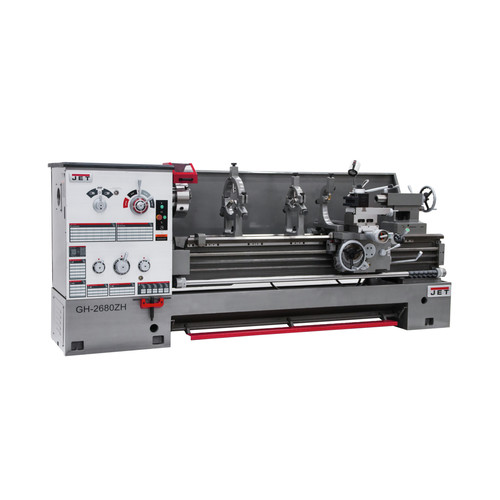

JET GH-2680ZH Lathe with Newall DP700

JET Model: JT9-321861
$49,699.00
See More
See Less
free shipping
FREE shipping on orders $49+.
free shipping
This item ships directly from manufacturer in 7-10 days
alert warning icon

OR PAY WITH

CA Residents
Prop 65 Warning
compliance warning icon
WARNING: This product can expose you to Lead, which is known to the State of California to cause Cancer and Birth Defect/Reproductive Harm. For more information go to www.P65Warnings.ca.gov.
JET GH-2680ZH Lathe with Newall DP700 JET Model: JT9-321861
price for vip customer
$49,699.00

OR PAY WITH

Product Features & specs :

JET JT9-321861 GH-2680ZH Lathe with Newall DP700

Features:

  • Large 4-1/8 in. spindle bore

  • Turns 89 different thread sizes

  • Bed ways are induction hardened and ground for durability

  • Clutch operated headstock with all headstock gears hardened and ground

  • Heavy-duty tailstock and quill

  • 12 speed ranging from 36 RPM to 1600 RPM

  • One piece heavy-duty cast iron base and bed

  • Rapid power traverse to cross slide and carriage

  • Headstock gearbox designed for quick setup of thread turning operation without changing gear

What’s Included:

  • GH-2680ZH Lathe with Newall DP700 - 321861

Spindle Speed Settings

12

Power Source

Corded

Range of Inch Threads (TPI)

2 - 30

Spindle Bore Diameter

4-1/8 in

PreWired Voltage

460V

UL Safety

No

Bed Width

16 in

Swing Range (Cross Slide)

16-1/2 in

No. of Inch Threads

48

Bluetooth Compatibility

No

Bed Construction

Cast Iron

Cross Slide Travel

12-3/32 in

Motor Type

Brushed

Spindle Speed Range (RPM)

1600

Compound Slide Travel

5-1/2 in

Range of Metric Threads

1 - 14

Steady Rest Capacity

25/32 in - 4-29/32 in / 3-15/16 in - 9-7/16 in

No. of Metric Threads

22

Range of Cross Feeds (IPR)

0.01 - 0.0404

Swing Range (Gap)

34 in

CSA Safety

No

Distance Between Centers

80 in

Tool Size

1-1/4 x 1-1/4 in

Gap Length

8 in

Motor Phase

3

Range of Longitudinal Feed Rates (IPR)

0.0023-0.0937 in

Spindle Taper (Tailstock)

MT-5

Horsepower

10

Voltage

230V

Spindle Mount Taper

Yes

Carriage Travel

72-1/2 in

Spindle Travel (Tailstock)

6 in

Drive Type

Geared Head

Follow Rest Capcacity

25/32 - 3-15/16 in

No. of Longitudinal Feed Rates

65

No. of Cross Feed Rates

65

Swing Range (Bed)

26 in

ETL Safety

No

Spindle Mount

Yes

Length

138 in.

Width

43 in.

Height

57 in.

Weight

8514 lbs.

Warranty Term

2 Year
