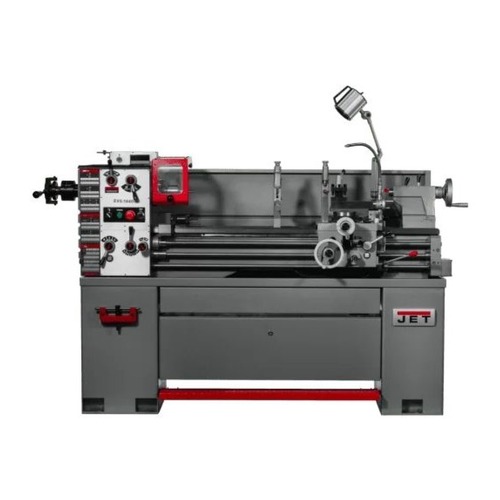

JET EVS-1440 Electronic Variable Speed lathe with Newall DP700 DRO, Taper Attachment & Collet Closer

JET Model: JT9-311451

Enter your email address and we'll let you know when it's available

OUT OF STOCK
CA Residents
Prop 65 Warning
compliance warning icon
WARNING: This product can expose you to Lead, which is known to the State of California to cause Cancer and Birth Defect/Reproductive Harm. For more information go to www.P65Warnings.ca.gov.
JET EVS-1440 Electronic Variable Speed lathe with Newall DP700 DRO, Taper Attachment & Collet Closer JET Model: JT9-311451

Product Features & specs :

JET JT9-311451 EVS-1440 Electronic Variable Speed lathe with Newall DP700 DRO, Taper Attachment & Collet Closer

Details

The EVS-1440B is engineered to maximize your shop’s output. The D1 4 Spindle is precision ground for accuracy and supported by class 7 tapered roller bearings capable of a run-out maximum of 0.0004 in. The spindle also features an apron-mounted actuation control and jog button for easy gear engagement and spindle inching. The two-speed gearbox allows operators to easily work at low speeds from 40 to 365 RPM, and at high speeds from 220 to 2000 RPM. Additionally, the tailstock may be offset for turning the taper. Meehanite castings retain their tolerance and remain rigid over many years of machining.

Features:

  • Compound and cross slide have backlash elimination

  • Electronic Chuck Key Docking Station

  • Front Removable Chip Tray

  • Full Length Splash Guard

  • Independent lead screw and feed rod

  • Integrated locking tool storage cabinet in the stand

  • LED RPM readout allows for precise turning speeds

  • Safety on/off switch

  • Treading Dial Indicator

  • V-Way bed design is induction hardened and ground

What’s Included:

  • EVS-1440 Electronic Variable Speed lathe with Newall DP700 DRO, Taper Attachment & Collet Closer - 311451

Power Source

Corded

Range of Inch Threads (TPI)

2 - 56

Spindle Bore Diameter

1-1/2 in

Bed Width

7.48 in

Swing Range (Cross Slide)

9-1/16 in

No. of Inch Threads

34

Bluetooth Compatibility

No

Cross Slide Travel

7 in

Spindle Speed Range (RPM)

40 - 2000

Compound Slide Travel

3-1/2 in

Range of Metric Threads

0.5-12

Steady Rest Capacity

23/100 in - 61/100 in

No. of Metric Threads

34

Tool Size

3/4 x 3/4 in

Gap Length

9-1/2 in

Motor Phase

3

Range of Longitudinal Feed Rates (IPR)

0.0016 - 0.046 in

Spindle Taper (Tailstock)

MT-3

Horsepower

3

Voltage

230V/460V

Spindle Mount Taper

Yes

Spindle Travel (Tailstock)

9-1/2 in

No. of Longitudinal Feed Rates

25

No. of Cross Feed Rates

25

Swing Range (Bed)

14 in

Spindle Mount

Yes

Length

68.5 in.

Width

28.3 in.

Height

50 in.

Weight

1320 lbs.

Warranty Term

2 Year
