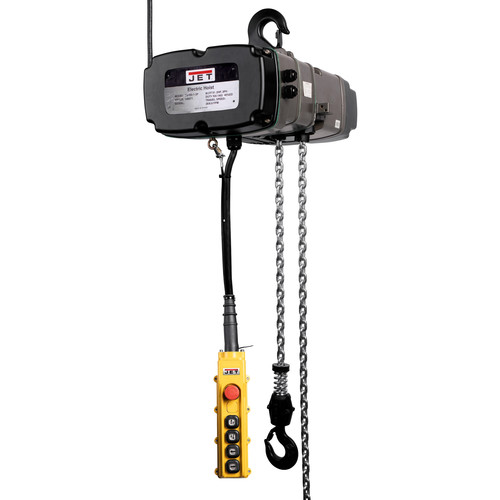

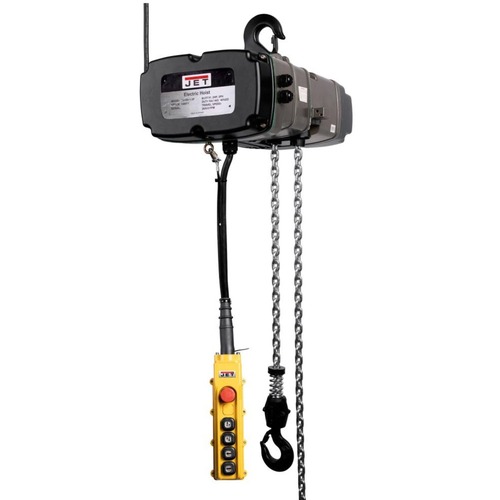

JET JT9-140239 230V 16.8 Amp TS Series 2 Sped 2 Ton 10 ft. Lift Corded Electric Chain Hoist

JET Model: JT9-140239
$7,517.99
  • 10 ft
  • 20 ft
See More
See Less
free shipping
FREE shipping on orders $49+.
free shipping
This item ships from manufacturer; get it in 2-5 days
alert warning icon

OR PAY WITH

CA Residents
Prop 65 Warning
compliance warning icon
WARNING: Cancer and Reproductive Harm -- www.P65Warnings.ca.gov
JET JT9-140239 230V 16.8 Amp TS Series 2 Sped 2 Ton 10 ft. Lift Corded Electric Chain Hoist JET Model: JT9-140239
price for vip customer
$7,517.99

OR PAY WITH

Product Features & specs :

JET JT9-140239 230V 16.8 Amp TS Series 2 Sped 2 Ton 10 ft. Lift Corded Electric Chain Hoist

Details

JET TS Series electric hoist is designed and built for safety, durability, and efficient operation in the toughest industrial applications. Designed with two speeds you can move materials quickly and safely. Allowing your material to then slow down to be placed exactly where you need it without the excessive bump firing. Additionally, a two in one mechanical brake and overload protection assures you of safety first on the jobsite. This new system will brake quickly while providing protection from overloading the hoist. We engineered this hoist to keep the operator safe and prolong the life of your tool. Lastly a patented gear limit switch will allow precise control of the stopping point in both directions. This feature will prolong the life of the hoist and help avoid possible damage to the unit. All of this with safe lifting speeds up to 33 feet per minute and as low as 3 feet per minute to give you the ability to be more efficient with every load. The TS series is available from 1/2 Ton to 5 Ton capacities. Let’s Get to Work.

Features:

  • IP55 TEFC Motor with Class F insulation for working in harsh environments

  • The 2-in-1 design of the Mechanical Brake and Overload Protection ensure operator safety and extended product life

  • DC Motor Brake actuates instantly in the event of a power failure to ensure operator safety

  • Patented gear limit switch ensures the switches off power instantly in the case of over lifting or lowering position

  • 5 Pocket chain sprocket provides reduced vibration, smoother operation, and reduced chain wear during long lifting or lowering of loads

  • Load chain is Grade 80 hardened and galvanized alloy steel chain built to withstand harsh conditions such as rain, saltwater, and chemicals with minimal wear

  • Pendant control is IP65 rated and is fully water-proof, insulated and impact resistant for years of service

  • Built in heat protection will not allow lifting if internal temperatures exceed 285 Degrees Fahrenheit (+/-40 Degrees). Load will be allowed to be lowered until unit cools. This saves internal components and extends the life of the product.

  • Comes with 10 ft. power supply cord

What’s Included:

  • 230V 16.8 Amp TS Series 2 Sped 2 Ton 10 ft. Lift Electric Chain Hoist - 140239

  • 10 ft. Power Supply Cord

Number of Falls

1

Volume Capacity

2 tons

Load Capacity

2 tons

Construction

Steel

Rated Capacity

2 tons

Electronic/Manual

Electronic

Weight Capacity

4000 lbs

Headroom

40-1/16 in

Standard Lift

10 ft

Length

37.008 in.

Width

27.165 in.

Height

23.622 in.

Weight

375 lbs.

Warranty Term

2 Year
