JET IDP-22 22 in. Industrial Drill Press JET Model: IDP-22
price for vip customer
$2,599.00

OR PAY WITH

Product Features & specs :

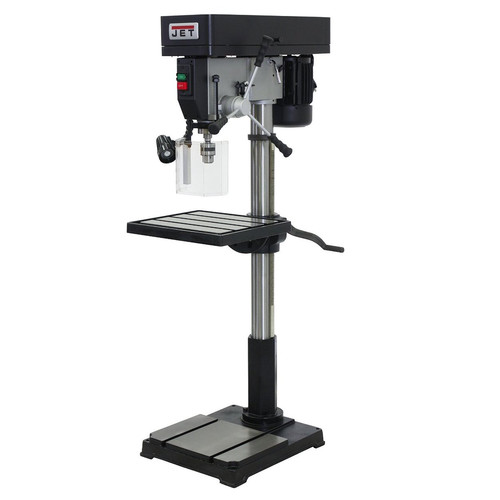

JET IDP-22 22 in. Industrial Drill Press

Details

Accuracy, stability and versatility are the benchmark features of the Jet IDP-22 22 in. Industrial Drill Presses. This heavy-duty industrial line of JET Drill Presses come standard with oversize tables and are CSA/CUS Certified.

Features:

  • Durability with heavy-duty construction and a cast iron table and base table ground for accuracy

  • On/off switch located on front of the drill press head

  • Spindle Guard

  • Spindle is supported by high quality ball bearings

  • Large hand grips designed with the Users comfort in mind

  • Hinged metal belt and pulley cover coupled with quick adjustment motor mount allow rapid changing of spindle speeds

  • Rotating 45-degree tilting, crank-operated worktable with quick release clamp

  • A 1/2 in. diameter external positive depth stop with three nut locking feature for quick adjustment

  • Adjustable tension spindle return spring

  • Drill chuck and key attach to the side of the drill press always within reach of the operator

  • LED Machine Lamp

  • CSA/CUS Certified

What’s Included:

  • IDP-22 22 in. Industrial Drill Press - 354301

Power Source

Corded

Drilling Capacity (Cast Iron)

1-1/4 in

Drilling Capacity (Mild Steel)

1 in

PreWired Voltage

115V

Amperage

20

UL Safety

No

Wifi compatibility

No

Spindle to Table Distance

28 in

Bluetooth Compatibility

No

Motor Type

Brushed

Spindle Speed Range (RPM)

175 - 3050

Column Diameter

1-1/4 in

Table Capacity (lbs.)

176 lbs

T-Slot Size

5/8 in

No. of Spindle Speeds

12

Quill Travel

4-13/16 in

CSA Safety

Yes

Table Size

18-5/8 in x 16-1/8 in

Spindle Taper

MT-3

Motor Phase

1

Voltage

115V/230V

No. of T-Slots

2

ETL Safety

No

Length

19 in.

Width

37 in.

Height

67 in.

Weight

364 lbs.

Warranty Term

2 Year
