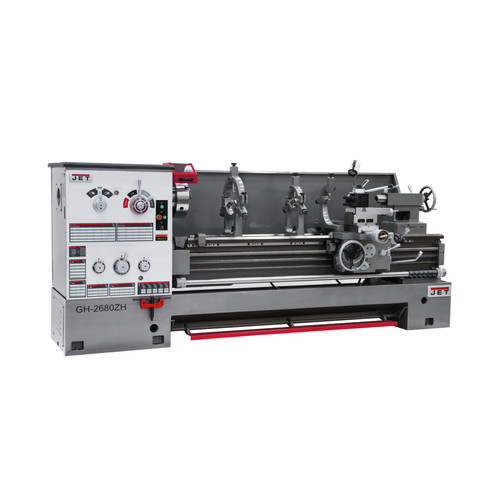

JET GH-2680ZH GH-2680ZH 4-1/8 in. Lathe with ACU-RITE 200S DRO
JET Model: GH-2680ZHProduct Features & specs :
JET GH-2680ZH GH-2680ZH 4-1/8 in. Lathe with ACU-RITE 200S DRO
Details
The Jet GH-2680ZH 4-1/8 in. Lathe with Newall DP700 DRO operates on a centralized gear system. The motor power is transferred through four v-belts to a shaft which transmits energy through a multi-disc friction clutch and various gear pairs to the spindle. The clutch also controls the spindle's direction of rotation. Through clutch disengagement, the operator can stop the spindle without turning off the motor, which will prolong the life of the motor. The GH-2680ZH features a clutch operated headstock, universal gearbox, and a rapid traverse on the apron that makes this lathe perfect for high-output production applications. Features you've come to expect in a Jet Lathe.
Features:
-
Lathe bed is made of cast iron with low vibration and high rigidity
-
Two precision-ground v-slideways, reinforced by supersonic frequency hardening, offer precision guidance for the carriage
-
The headstock is cast from high-grade, low-vibration cast iron with the spindle supported by a cylindrical bearing at the front, a tapered roller bearing, and a ball bearing
-
Lathe adopts a three-axle sliding common gear mechanism which together with the thread selection change mechanism and doubling mechanism, enable it to cut a comprehensive range of metric, modular, and diametrical pitch threads eliminating the need for gear changes where special thread is required
-
Use the hand wheel or the feed direction handle to move the bed-mounted rack and pinion, and make quick travel of the apron for better positioning
-
Cross-slide is mounted on the saddle and used for cross feed operations moving on an adjustable dovetailed slide
-
T-slotted compound rest can be rotated 360 degrees allowing tapers to be turned
-
Turret designed tool post holds up to four tools simultaneously and includes an indexing function
-
Tailstock with a heavy duty quill and an etched graduation scale slides on a v-way, and can be locked at any location with the clamping lever
-
Spindle rotation can be reversed by simply moving the control lever mounted at the right of the carriage
-
The traveling setting rod can be rotated into six positions to adjust the contact between stops and the limit switch
-
Steady rests serves as a support for shafts on the bedway
-
Two fingers move the travelling follow rest to prevent your work piece from flexing under the pressure of the cutting tool
-
An adjustable halogen lamp illuminates the lathe and holds an independent on/off switch
-
A foot brake activates a braking strap on the motor to stop the lathe during emergencies
What’s Included:
-
GH-2680ZH 4-1/8 in. Lathe with ACU-RITE 200S DRO - 321863
-
(2) Steady Rests
-
Follow Rest
-
Three Jaw Scroll Chuck
-
Drive Place
-
Four Jaw Independent Chuck
-
170 - 210mm Round Nut Spanner
-
Face Plate
-
(4) Change Gears - 63T, 69T, 78T, 90T
-
Tool Box Kit
Spindle Speed Settings
12
Power Source
Corded
Range of Inch Threads (TPI)
2 - 30
Spindle Bore Diameter
4-1/8 in
PreWired Voltage
460V
UL Safety
No
Bed Width
16 in
Swing Range (Cross Slide)
16-1/2 in
No. of Inch Threads
48
Bluetooth Compatibility
No
Bed Construction
Cast Iron
Cross Slide Travel
12-3/32 in
Motor Type
Brushed
Spindle Speed Range (RPM)
1600
Compound Slide Travel
5-1/2 in
Range of Metric Threads
1 - 14
Steady Rest Capacity
25/32 in - 4-29/32 in / 3-15/16 in - 9-7/16 in
No. of Metric Threads
22
Range of Cross Feeds (IPR)
0.001 - 0.0404
Swing Range (Gap)
34 in
CSA Safety
No
Distance Between Centers
80 in
Tool Size
1-1/4 x 1-1/4 in
Gap Length
8 in
Motor Phase
3
Range of Longitudinal Feed Rates (IPR)
0.0023-0.0937 in
Spindle Taper (Tailstock)
MT-5
Horsepower
10
Voltage
230V
Spindle Mount Taper
Yes
Carriage Travel
72-1/2 in
Spindle Travel (Tailstock)
6 in
Drive Type
Geared Head
Follow Rest Capcacity
25/32 - 3-15/16 in
No. of Longitudinal Feed Rates
65
No. of Cross Feed Rates
65
Swing Range (Bed)
26 in
ETL Safety
No
Spindle Mount
Yes
Length
138 in.
Width
43 in.
Height
57 in.
Weight
8514 lbs.
Warranty Term
2 Year
