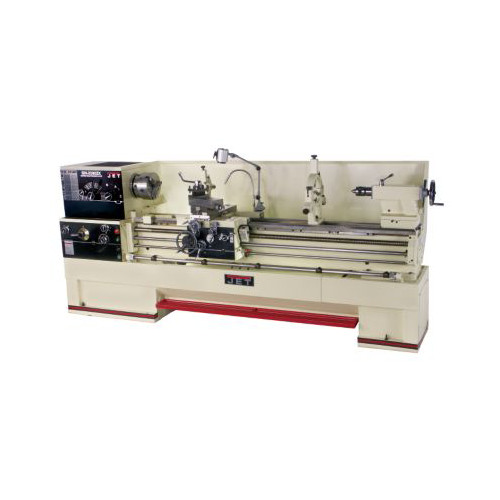

JET GH-2280ZX Large Spindle Bore Precision Lathe

JET Model: GH-2280ZX

Enter your email address and we'll let you know when it's available

OUT OF STOCK
CA Residents
Prop 65 Warning
compliance warning icon
WARNING: This product can expose you to Lead, which is known to the State of California to cause Cancer and Birth Defect/Reproductive Harm. For more information go to www.P65Warnings.ca.gov.
JET GH-2280ZX Large Spindle Bore Precision Lathe JET Model: GH-2280ZX

Product Features & specs :

JET GH-2280ZX Large Spindle Bore Precision Lathe

Features:

  • Uniquely designed exclusively by JET

  • ISO 9001 certified manufacturer

  • 3-1/8 in. bore spindle is supported by two tapered and one ball bearing

  • Chrome molybdenum headstock gears are hardened, ground, and shaved

  • Universal gearbox allows inch, metric, diametral, and module pitch threads, no change gears required

  • Carriage Feature one-shot lubrication and Turcite B on bed sliding surfaces

  • T-slotted compound slide featuring a four-way tool post

  • One-piece cast iron base absorbs vibration allowing heavier cuts

  • High quality ANSI Class 50 wear-resistant cast iron bed ways are hardened and ground

  • Removable gap allows up to 23-5/8 in. diameter work on 16 in, 27-1/2 in. on 18 in.

  • Five position automatic carriage stop increases productivity

  • Attractive chrome control levers, dials, and knobs complete this impressive package

  • Tolerance test certificate included

What’s Included:

  • GH-2280ZX Large Spindle Bore Precision Lathe - 321980

  • 10 in. 3 Jaw Chuck With Top Reversing Jaws

  • 12 in. Independent 4-Jaw Chuck

  • 12 in. Face Plate (16 in. Models)

  • Four-way tool post

  • Follow Rest

  • Large Capacity Steady Rest

  • Fully Integrated Coolant System

  • Full Length Splash Guard and Coolant Return

  • Large Easy to Use Foot Brake

  • Articulating Halogen Work Lamp

  • Centrally located controls with jog button

  • Threading Dial

  • Mounting Pads and Levelers

  • Spindle Sleeve (MT-7 - MT-5)

  • Dead Center

Spindle Speed Settings

12

Power Source

Corded

Range of Inch Threads (TPI)

1-5/8 - 72

Spindle Bore Diameter

3-1/8 in

PreWired Voltage

460V

UL Safety

No

Bed Width

13-1/8 in

Swing Range (Cross Slide)

13 in

No. of Inch Threads

61

Bluetooth Compatibility

No

Bed Construction

Cast Iron

Cross Slide Travel

12 in

Motor Type

Brushed

Spindle Speed Range (RPM)

1800

Compound Slide Travel

5-1/8 in

Range of Metric Threads

0.05 - 20

Steady Rest Capacity

3/8 in - 7-3/4 in

No. of Metric Threads

24

Range of Cross Feeds (IPR)

0.0006 - 0.036

Swing Range (Gap)

29-1/2 in

CSA Safety

No

Distance Between Centers

80 in

Tool Size

1 x 1 in

Gap Length

12 in

Motor Phase

3

Range of Longitudinal Feed Rates (IPR)

0.0015 - 0.09 in

Spindle Taper (Tailstock)

MT-5

Horsepower

10

Voltage

230V

Spindle Mount Taper

Yes

Carriage Travel

74-5/16 in

Spindle Travel (Tailstock)

5 in

Drive Type

Geared Head

Follow Rest Capcacity

1/2 - 3-1/2 in

No. of Longitudinal Feed Rates

46

No. of Cross Feed Rates

31

Swing Range (Bed)

22 in

ETL Safety

No

Spindle Mount

Yes

Length

136 in.

Width

45 in.

Height

71 in.

Weight

6933 lbs.

Warranty Term

2 Year
