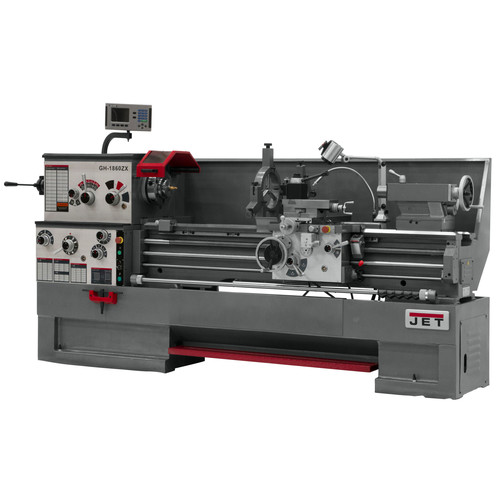

JET GH-1880ZX Lathe with 300S Collet Closer and Taper Attachment JET Model: GH-1880ZX
price for vip customer
$51,169.00

OR PAY WITH

Product Features & specs :

JET GH-1880ZX Lathe with 300S Collet Closer and Taper Attachment

Features:

  • ISO 9001 certified manufacturer

  • 3-1/8 in. bore spindle is supported by two tapered and one ball bearing

  • Chrome molybdenum headstock gears are hardened, ground and shaved

  • Universal gearbox allows inch, metric, diametral and module pitch threads, no gear change required

  • Carriage features one-shot lubrication and Turcite-B on bed sliding surfaces

  • T-slotted compound slide featuring a four-way tool post

  • One piece cast iron base absorbs vibration allowing heavier cuts

  • High quality ANSI Class 50 wear resistant cast iron bed ways are hardened and ground

  • Removable gap allows up to 23-5/8 in. diameter work on 14 in, 25-7/8 in. on 16 in, 27-1/2 in. on 18 in. and 29-1/2 in. on 22 in.

  • Five position automatic carriage stop increases productivity

  • Attractive chrome control levers, dials and knobs complete this impressive package

What’s Included:

  • GH-1880ZX Lathe with 300S, Collet Closer and Taper Attachment - 321599

  • 10 in. Scroll 3-Jaw Chuck with Top Reversing Jaws

  • 12 in. Independent 4-Jaw Chuck

  • 12 in. Face Plate (16 in. Models)

  • 16 in. Face Plate (18 in. Models)

  • 4-Way Tool Post

  • Follow Rest

  • Large Capacity Steady Rest

  • Fully Integrated Coolant System

  • Full Length Splash Guard and Coolant System

  • Large, Easy-To-Use Foot Brake

  • Articulating Halogen Work Lamp

  • Centrally Located Controls with Jog Button

  • Threading Dial

  • Spindle Sleeve (MT-7 and MT-5)

  • Mounting Pads and Levelers

  • Dead Center and Live Center

Spindle Speed Settings

12

Power Source

Corded

Range of Inch Threads (TPI)

1-5/8 - 72

Spindle Bore Diameter

3-1/8 in

PreWired Voltage

460V

UL Safety

No

Bed Width

13-1/8 in

Swing Range (Cross Slide)

11 in

No. of Inch Threads

61

Bluetooth Compatibility

No

Bed Construction

Cast Iron

Cross Slide Travel

9 in

Motor Type

Brushed

Spindle Speed Range (RPM)

1800

Compound Slide Travel

5-1/8 in

Range of Metric Threads

0.05 - 20

Steady Rest Capacity

3/8 in - 7-3/4 in

No. of Metric Threads

24

Range of Cross Feeds (IPR)

0.0006 - 0.036

Swing Range (Gap)

27-1/2 in

CSA Safety

No

Distance Between Centers

80 in

Tool Size

1 x 1 in

Gap Length

12 in

Motor Phase

3

Range of Longitudinal Feed Rates (IPR)

0.0015 - 0.09 in

Spindle Taper (Tailstock)

MT-5

Horsepower

7.5

Voltage

230V/460V

Spindle Mount Taper

Yes

Carriage Travel

74-5/16 in

Spindle Travel (Tailstock)

5 in

Drive Type

Geared Head

Follow Rest Capcacity

1/2 - 3-1/2 in

No. of Longitudinal Feed Rates

46

No. of Cross Feed Rates

31

Swing Range (Bed)

18 in

ETL Safety

No

Spindle Mount

Yes

Length

136 in.

Width

44 in.

Height

66 in.

Weight

6590 lbs.

Warranty Term

2 Year
