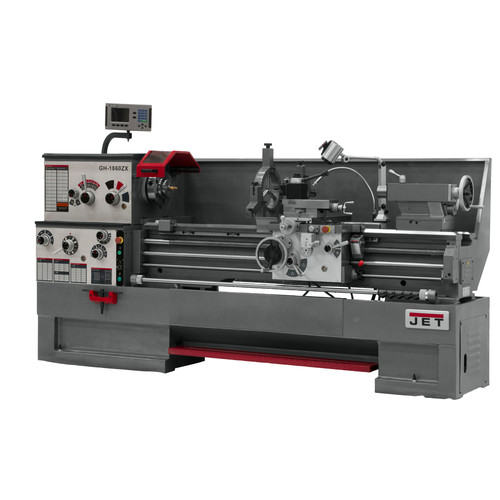

JET GH-1880ZX Lathe with 2-Axis NEWALL DP700 DRO Installed

JET Model: GH-1880ZX
$37,749.00
See More
See Less
free shipping
FREE shipping on orders $49+.
free shipping
This item ships directly from the manufacturer.
alert warning icon

OR PAY WITH

CA Residents
Prop 65 Warning
compliance warning icon
WARNING: This product can expose you to Lead, which is known to the State of California to cause Cancer and Birth Defect/Reproductive Harm. For more information go to www.P65Warnings.ca.gov.
JET GH-1880ZX Lathe with 2-Axis NEWALL DP700 DRO Installed JET Model: GH-1880ZX
price for vip customer
$37,749.00

OR PAY WITH

Product Features & specs :

JET GH-1880ZX Lathe with 2-Axis NEWALL DP700 DRO Installed

Features:

  • ISO 9001 certified manufacturer

  • 3-1/8 in. bore spindle is supported by two tapered and one ball bearing

  • Chrome molybdenum headstock gears are hardened, ground and shaved

  • Universal gearbox allows inch, metric, diametral and module pitch threads, no gear change required

  • Carriage features one-shot lubrication and Turcite-B on bed sliding surfaces

  • T-slotted compound slide featuring a four-way tool post

  • One piece cast iron base absorbs vibration allowing heavier cuts

  • High quality ANSI Class 50 wear resistant cast iron bed ways are hardened and ground

  • Removable gap allows up to 23-5/8 in. diameter work on 16 in. and 27-1/2 in. on 18 in.

  • Five position automatic carriage stop increases productivity

  • Attractive chrome control levers, dials and knobs complete this impressive package

What’s Included:

  • GH-1880ZX Lathe with 2-Axis NEWALL DP700 DRO Installed - 321488

  • 10 in. 3-Jaw Chuck with Top Reversing Jaws

  • 16 in. Face Plate

  • 12 in. 4-Jaw Chuck

  • 4-Way Tool Post

  • Follow Rest

  • Large Capacity Steady Rest

  • Fully Integrated Coolant System

  • Full Length Splash Guard and Coolant System

  • Large, Easy-To-Use Foot Brake

  • Articulating Halogen Work Lamp

  • Centrally Located Controls with Jog Button

  • Threading Dial

  • Mounting Pads and Levelers

  • Spindle Sleeve (MT-7 and MT-5)

  • Dead Center and Live Center

  • Tool Box and Adjusting Tools

Spindle Speed Settings

12

Power Source

Corded

Range of Inch Threads (TPI)

1-5/8 - 72

Spindle Bore Diameter

3-1/8 in

PreWired Voltage

230V

Bed Width

13-1/8 in

Swing Range (Cross Slide)

11 in

No. of Inch Threads

61

Bluetooth Compatibility

No

Bed Construction

Cast Iron

Cross Slide Travel

9 in

Motor Type

Brushed

Spindle Speed Range (RPM)

1800

Compound Slide Travel

5-1/8 in

Range of Metric Threads

0.05 - 20

Steady Rest Capacity

3/8 in - 7-3/4 in

No. of Metric Threads

24

Range of Cross Feeds (IPR)

0.0006 - 0.036

Swing Range (Gap)

27-1/2 in

Distance Between Centers

80 in

Tool Size

1 x 1 in

Gap Length

12 in

Motor Phase

3

Range of Longitudinal Feed Rates (IPR)

0.0015 - 0.09 in

Spindle Taper (Tailstock)

MT-5

Horsepower

7.5

Voltage

230V/460V

Spindle Mount Taper

Yes

Carriage Travel

74-5/16 in

Spindle Travel (Tailstock)

5 in

Drive Type

Geared Head

Follow Rest Capcacity

1/2 - 3-1/2 in

No. of Longitudinal Feed Rates

46

No. of Cross Feed Rates

31

Swing Range (Bed)

18 in

Spindle Mount

Yes

Length

136 in.

Width

44 in.

Height

66 in.

Weight

6590 lbs.

Warranty Term

2 Year
