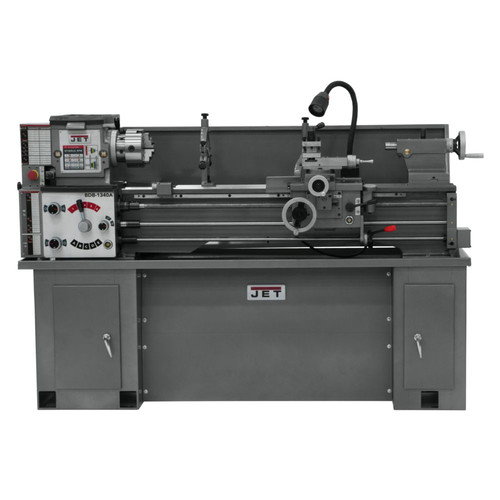

JET BDB-1340A 13 in. x 40 in. 2 HP 1-Phase Belt Drive Bench Lathe

JET Model: BDB-1340A
$8,799.00
See More
See Less
free shipping
FREE shipping on orders $49+.
free shipping
This item ships directly from manufacturer in 3-5 days
alert warning icon

OR PAY WITH

CA Residents
Prop 65 Warning
compliance warning icon
WARNING: This product can expose you to Lead, which is known to the State of California to cause Cancer and Birth Defect/Reproductive Harm. For more information go to www.P65Warnings.ca.gov.
JET BDB-1340A 13 in. x 40 in. 2 HP 1-Phase Belt Drive Bench Lathe JET Model: BDB-1340A
price for vip customer
$8,799.00

OR PAY WITH

Product Features & specs :

JET BDB-1340A 13 in. x 40 in. 2 HP 1-Phase Belt Drive Bench Lathe

Features:

  • One of the most popular JET, lathes now comes with an enclosed gearbox as a standard feature

  • Enclosed gear box design provides smooth, quiet operation

  • Fast, easy speed changes

  • Low voltage motor controls

  • Helical cut headstock gears reduce noise

  • Change gears allow metric threading

  • Spindle is supported by precision tapered roller bearings

  • V-way bed is induction hardened and ground

  • Gap bed section provided for large diameter work

  • Independent lead screw and feed rod

  • T-slotted compound slide with four-way tool post

  • Carriage mounted spindle control lever

  • Automatic feeding and threading are fully interlocked

  • Feed selectors travel in grooved ways

  • Tailstock may be offset for turning tapers and includes an inch/metric graduated quill

What’s Included:

  • 13 in. x 40 in. 2 HP 1-Phase Belt Drive Bench Lathe - 321360A

  • 6 in. 3-Jaw Direct Mount Chuck w/ Top Reversing Jaws

  • 8 in. 4-Jaw Chuck

  • 12 in. Face Plate

  • Four-Way Tool Post

  • Steady &, Follow Rest

  • Metric Change Gear

  • Centers w/ Headstock Center Sleeve

  • Threading Dial

  • Tool Box &, Tools

Spindle Speed Settings

12

Power Source

Corded

Range of Inch Threads (TPI)

3-1/2 - 80

Spindle Bore Diameter

1-3/8 in

PreWired Voltage

230V

UL Safety

No

Bed Width

7-3/8 in

Swing Range (Cross Slide)

7-25/32 in

No. of Inch Threads

38

Bluetooth Compatibility

No

Bed Construction

Cast Iron

Cross Slide Travel

6-5/16 in

Motor Type

Brushed

Spindle Speed Range (RPM)

1240

Compound Slide Travel

2-11/16 in

Range of Metric Threads

0.45 - 10

Steady Rest Capacity

2-5/8 in

No. of Metric Threads

23

Range of Cross Feeds (IPR)

0.0006 - 0.013

Swing Range (Gap)

18-3/4 in

CSA Safety

No

Distance Between Centers

40 in

Tool Size

5/8 x 5/8 in

Gap Length

8 in

Motor Phase

1

Range of Longitudinal Feed Rates (IPR)

0.0018 - 0.0374 in

Spindle Taper (Tailstock)

MT-3

Horsepower

2

Voltage

230V

Spindle Mount Taper

Yes

Carriage Travel

35 in

Spindle Travel (Tailstock)

3-3/4 in

Drive Type

Belt

Follow Rest Capcacity

2-3/4 in

No. of Longitudinal Feed Rates

38

No. of Cross Feed Rates

38

Swing Range (Bed)

13 in

ETL Safety

No

Spindle Mount

Yes

Length

71 in.

Width

32 in.

Height

45 in.

Weight

1175 lbs.

Warranty Term

2 Year
