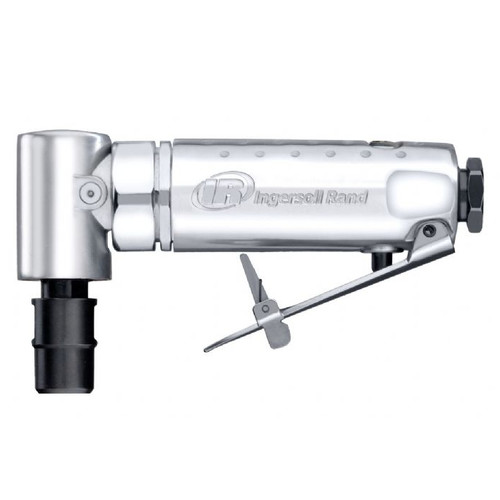

Ingersoll Rand 301B 1/4 in. Air Angle Die Grinder
Ingersoll Rand Model: 301BProduct Features & specs :
Ingersoll Rand 301B 1/4 in. Air Angle Die Grinder
Details
Long-lasting, economical, and ideal for general-purpose grinding, the 301B delivers a number of beneficial features in one compact package. Right-angle configuration provides easy access to tight spots, so you can grind, break sharp edges, de-burr, port, and polish virtually anywhere.
Features:
-
Powerful motor delivers 0.25 HP at 21,000 RPM free speed
-
Durable ball-bearing construction improves balance, reduces vibration, and ensures a longer life
-
Strong aluminum housing withstands tough operating conditions
-
Small and lightweight design provides easy operation greater access to tight spots
-
Easy-to-use, integral safety-lock throttle lever prevents accidental start up
-
Front exhaust helps keep work surface clean
What’s Included:
-
1/4 in. Air Angle Die Grinder - 301B
-
1/4 in. Collet
-
6mm Collet
-
(2) Wrenches
Power Source
Pneumatic
Collet Size
1/4 in
Switch Type
Trigger
Operating Pressure (PSI)
90
No-Load Speed (RPM)
21000
Continuous Air Consumption (SCFM)
24
Air Inlet Size
1/4 in
Horsepower
0.25
Fitting Type
NPT
Hose Size (Min.)
3/8 in
Average Air Consumption (SCFM)
6
Length
6.5 in.
Width
2.4 in.
Height
3.3 in.
Weight
1.55 lbs.
Warranty Term
1 Year
