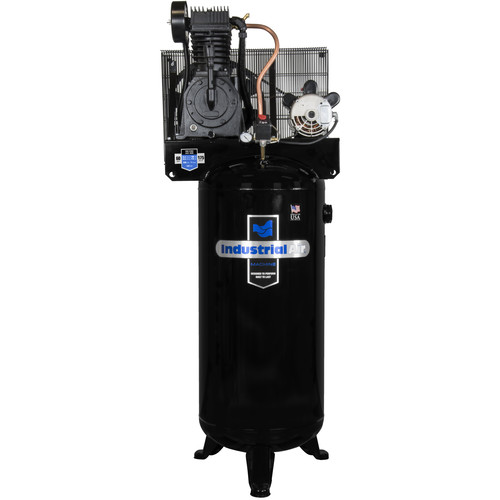

Industrial Air 5 HP 60 Gallon Oil-Lube Stationary Air Compressor

Industrial Air Model: IV5076055
$1,879.99
See More
See Less
free shipping
FREE shipping on orders $49+.
free shipping
This item ships directly from manufacturer in 3 - 4 weeks
alert warning icon

OR PAY WITH

CA Residents
Prop 65 Warning
compliance warning icon
WARNING: This product can expose you to Lead, which is known to the State of California to cause Cancer and Birth Defect/Reproductive Harm. For more information go to www.P65Warnings.ca.gov.
Industrial Air 5 HP 60 Gallon Oil-Lube Stationary Air Compressor Industrial Air Model: IV5076055
price for vip customer
$1,879.99

OR PAY WITH

Product Features & specs :

Industrial Air IV5076055 5 HP 60 Gallon Oil-Lube Stationary Air Compressor

Details

Industrial Air 5 HP 60 Gallon Two-Stage Air Compressor with Century Motor delivers up to 15.3 CFM at 100 PSI, can power multiple air tools or devices at a time. No magnetic starter is needed thanks to a heavy-duty, industrial design which helps protect the motor from Vage fluctuations. Both the tank and 2-stage compressor pump are made of cast iron.

Features:

  • Industrial performance delivers maximum CFM @ 175 PSI, provides enough power to operate more than one air tool or device at one time

  • Patented pump design provides for a cooler running and low RPM pump for longer overall tool life

  • Electric motor with thermal overload protection protects the motor from fluctuations

  • Large capacity, 60 gallon ASME air receiver with a 3/4 in. air outlet port

  • Equipped with tank pressure gauge and on/off switch

  • Easily accessible oil level sight glass and oil drain with 4 in. extension

  • Industrial style air intake filter

What’s Included:

  • 5 HP 60 Gallon Two-Stage Air Compressor with Century Motor (No Mag Starter) - IV5076055

Power Source

Corded

Lubrication System

Oil-Lube

Drive System

Belt Drive

Amperage

24

UL Safety

Yes

Power Type

Electric

Pump Speed (RPM)

767

Motor Type

Brushed

Tank Construction

Cast Iron

Tank Orientation

Vertical

Tank Capacity

60 gal

Operating Pressure (PSI)

175

Lubrication

Oil-Lube

Tank Style

Stationary

CSA Safety

Yes

Pump Type

Rotary

Phase

1

Horsepower

5

Air Consumption at 90 PSI (SCFM)

13.5

Voltage

240V

Fitting Size

1/4 in

Air Consumption at 40 PSI (SCFM)

15.3

Running Horsepower

5

ETL Safety

No

Length

40 in.

Width

31 in.

Height

80 in.

Weight

424 lbs.

Warranty Term

2 Year

Reviews :

Q & A :

Warranty:

Industrial Air Warranty

Industrial Air Power will do whatever it takes to make sure you are completely satisfied with your transaction.

Please note: Warranty does not include cost of service or replacement of other parts. The warranty is limited to only the buyer and does not apply under the following circumstances: improper use or installation, substitution of parts, abnormal operating conditions, or damage due to misapplication or attempt to repair. Warranty applies to IAP parts, see original equipment manufacturers for specific warranty terms.
