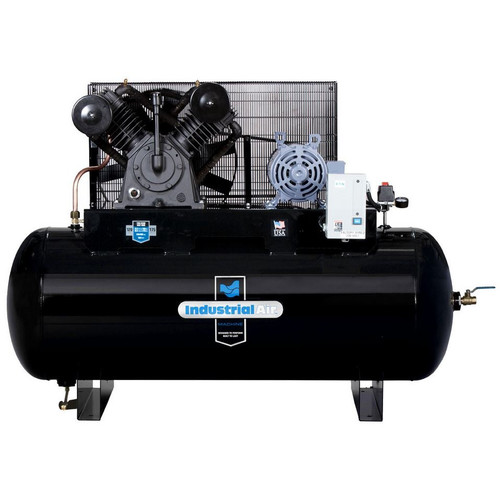

Industrial Air 10 HP 120 Gallon Oil-Lube Horizontal Stationary Air Compressor with Aosmith Motor

Industrial Air Model: IH9919910
$3,949.99
See More
See Less
free shipping
FREE shipping on orders $49+.
free shipping
This item ships directly from the manufacturer.
alert warning icon

OR PAY WITH

CA Residents
Prop 65 Warning
compliance warning icon
WARNING: This product can expose you to Lead, which is known to the State of California to cause Cancer and Birth Defect/Reproductive Harm. For more information go to www.P65Warnings.ca.gov.
Industrial Air 10 HP 120 Gallon Oil-Lube Horizontal Stationary Air Compressor with Aosmith Motor Industrial Air Model: IH9919910
price for vip customer
$3,949.99

OR PAY WITH

Product Features & specs :

Industrial Air IH9919910 10 HP 120 Gallon Oil-Lube Horizontal Stationary Air Compressor with Aosmith Motor

Details

Industrial Air's IH9919910 230V 10 HP 120 Gallon Oil-Lube Horizontal Air Compressor with Aosmith Motor features a high capacity tank that provides extended runtimes for various air tools including, but not limited to, ratchets, wrenches, spray guns and hammers. Designed exclusively for the heavy-duty needs of mechanics, this unit highlights rugged components and is built to last under the most demanding conditions.

Features:

  • Patented pump design provides a cooler running pump and improved compression efficiency

  • Three phase industrial class electric motor features a 4 pole design and 1,759 RPM

  • Industrial performance delivers maximum CFM @ 175 PSI, providing enough power to operate more than one air tool or device at a time

  • Equipped with pre-wired and mounted magnetic starter

  • Large capacity 120 gallon ASME certified tank

  • Extended tank drain valve, ball valve, and vibration isolators are included for ease of use

  • Patented piston design for improved compression efficiency

  • Asymmetrical cooling fins draw heat away from the precision bored cylinders

  • Patented cast iron flywheel offer large, extended fins that improve pump cooling and lower RPM

  • Unique metal belt guard design for improved pump cooling

  • UL certified and NEMA rated

What’s Included:

  • 230V 10 HP 120 Gallon Oil-Lube Horizontal Air Compressor with Aosmith Motor - IH9919910

Power Source

Corded

Lubrication System

Oil-Lube

Drive System

Belt Drive

Amperage

27

UL Safety

Yes

Power Type

Electric

Pump Speed (RPM)

1759

Motor Type

Brushed

Tank Construction

Cast Iron

Tank Orientation

Horizontal

Tank Capacity

120 gal

Operating Pressure (PSI)

175

Lubrication

Oil-Lube

Tank Style

Stationary

CSA Safety

Yes

Pump Type

Reciprocating

Phase

3

Horsepower

10

Air Consumption at 90 PSI (SCFM)

5.1

Voltage

230V

Air Consumption at 40 PSI (SCFM)

6.8

Running Horsepower

10

Noise Rating (dBA)

90

ETL Safety

No

Length

75 in.

Width

29 in.

Height

60 in.

Weight

920 lbs.

Warranty Term

2 Year
