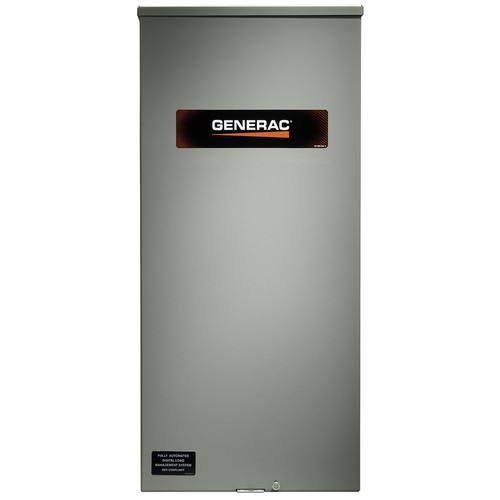

Generac 200 Amp Service Rated Whole House Automatic Transfer Switch 120/240V Single Phase NEMA 3R

Generac Model: RXSW200A3
$847.99
free shipping
FREE shipping on orders $49+.
free shipping
This item ships directly from manufacturer in 2-4 weeks
alert warning icon

OR PAY WITH

CA Residents
Prop 65 Warning
compliance warning icon
WARNING: Cancer and Reproductive Harm -- www.P65Warnings.ca.gov
Generac 200 Amp Service Rated Whole House Automatic Transfer Switch 120/240V Single Phase NEMA 3R Generac Model: RXSW200A3
price for vip customer
$847.99

OR PAY WITH

Product Features & specs :

Generac RXSW200A3 200 Amp Service Rated Whole House Automatic Transfer Switch 120/240V Single Phase NEMA 3R

Details

Generac Automatic Transfer Switches are designed for use with single phase generators that utilize an Evolution or Nexus Controller. This 200 Amp whole house open transition switch is available in single phase with service equipment rated configuration and works in tandem with the generator to monitor the utility power. When utility power is interrupted, the transfer switch automatically transfers power from the utility to the generator. When utility power returns, the transfer switch will return the electrical load from the generator back to utility. Through the use of digital power technology (DPM), these switches have the capability to manage up to 4 individual HVAC (24 VAC controlled) loads with no additional hardware.

Features:

  • 200-Amp 120/240 volt single phase smart transfer switch with service disconnect which is housed in an aluminum NEMA/UL type 3R enclosure with electrostatically applied and baked powder paint

  • Transfer switch connects through the utility meter for easy installation

  • Heavy duty Generac contactor is a UL recognized device designed for years of service

  • The controller at the generator handles all the timing, sensing, exercising functions and transfer commands

  • Can be used in tandem with Generac’s Smart Management Modules, up to 8 more loads can be managed as well, providing the most installation efficient power management options available

  • Smaller fuses integrated into the control board

  • 5-year limited warranty

  • Replacement for RTSW200A3

What’s Included:

Amperage

200

UL Safety

Yes

Max. Wattage

48000 Watts

Amps

200

Compatible Models

Evolution or Nexus generator controllers

Rated Amps

200

CSA Safety

No

Phase

1

Rated AC Frequency

120V/240V

Voltage

120V/240V

Enclosure Type

NEMA 3R

ETL Safety

No

Length

13.5 in.

Width

6.3 in.

Height

30 in.

Weight

39 lbs.

Warranty Term

5 Year
