Freeman 20-Gauge L-Cleat Nailer

Freeman Model: PF20GLCN

Enter your email address and we'll let you know when it's available

OUT OF STOCK
CA Residents
Prop 65 Warning
compliance warning icon
WARNING: This product can expose you to Lead, which is known to the State of California to cause Cancer and Birth Defect/Reproductive Harm. For more information go to www.P65Warnings.ca.gov.
Freeman 20-Gauge L-Cleat Nailer Freeman Model: PF20GLCN

Product Features & specs :

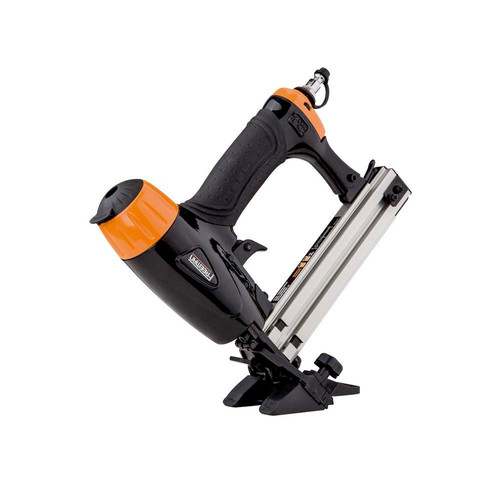

Freeman PF20GLCN 20-Gauge L-Cleat Nailer

Details

The Freeman 20 gauge L Cleat Flooring Nailer is ideal for installing 5/16 in. 9/16 in. solid or engineered Tongue and Groove flooring including all types of bamboo and exotic hardwoods. This nailer drives any brand of 20-Gauge L Cleats from 1 in. to 1-1/4 in. L. The PF20GLCN is equipped with tool-free depth adjust, quick release nose for easy jam clearing and a 360 degree adjustable exhaust to direct air away from your face and work surface. The flooring base is interchangeable to allow for 90 degree nailing for starting courses and ending courses of flooring where there is not enough clearance for the nailer to be operated at a 45 degree angle. The one piece drive blade and anodized aluminum cylinder and magazine provide long lasting durability and the air filter keeps interior components debris-free. All Freeman Tools are backed by a 7 Year Limited Warranty.

Features:

  • Installs 5/16 in. 9/16 in. solid or engineered tongue and groove flooring

  • Ideal for dense and exotic wood flooring

  • Quick release nose for easy clearing of nail jams

  • Drives 20-Gauge L cleats 1 in. 1-1/4 in.

  • 2 nose attachments to drive nails at a 45 degree angle or 90 degree angle

  • 7 year limited warranty

What’s Included:

  • 20-Gauge L-Cleat Nailer - PF20GLCN

Power Source

Pneumatic

Nail Gauge

20

Fastener Type

L-Cleats

Fastener Length (Min.)

1 in

Jam Clearance

Tool-Free

Tip Style

Non-Marring

Motor Type

Brushed

Fastener Length (Max.)

1-1/4 in

Max. Fastener Length

1-1/4 in

Operating Pressure (PSI)

70 - 110

Lubrication

Oil-Lube

Fastener Capacity

100

Air Inlet Size

1/4 in

Firing Modes

Single Actuation

Min. Fastener Length

1 in

Fastener Gauge

20

Average Air Consumption (SCFM)

1.5

Fastener Collation

Glue Collation

Depth of Drive

Adjustable

Magazine Type

Strip Loading

Length

12 in.

Width

3 in.

Height

12 in.

Weight

3.37 lbs.

Warranty Term

7 Year

Reviews :

Q & A :

Warranty:

Freeman 7 Year Warranty

This warranty of Freeman Pneumatic Nail Guns (the “Freeman Product”) extends exclusively to the original purchaser of the Freeman Product seven (7) years from the original purchase date as shown by the proof of purchase. PGP Inc. expressly warrants that the Freeman Product is free from defect in materials and workmanship subject to the exceptions and limitations contained herein. This warranty is the sole and exclusive warranty, express or implied for the Freeman Product. No employee, agent, dealer or other person is authorized to alter, modify, expand or reduce the terms of this warranty or to make any other warranty on behalf of PGP Inc. This express limited warranty contains the entire agreement regarding express and implied warranties related to the Freeman Product. No writing or languages in the purchase order or any other document shall be construed as an addition or alteration of PGP Inc.’s warranty of the Freeman Product.

PGP Inc. shall repair or replace, at its option, a Freeman Product that has a defect in materials or workmanship. The original purchaser must return the complete Freeman Product, postage prepaid and insured, with proof of purchase to PGP Inc. or its authorized service centers. Other than the postage and insurance requirement, no charge will be made for repairs covered by this warranty.

This warranty does not apply to defects in materials or workmanship or damages resulting from repairs or alterations which have been made or attempted by others or the unauthorized use of nonconforming parts. It further does not apply if the damage is due to normal wear and tear, abuse, improper maintenance, neglect or accident or caused by use of the Freeman Product after partial failure or use with improper accessories. PGP Inc’s driver blades, bumpers, o-rings, pistons, trigger mechanism, springs, and gaskets are considered normal wearing parts and are not covered by this warranty.

The Freeman Product is intended for use by individuals and not for use on an assembly or production line. The Freeman Product is intended for use by individuals and not for use on an assembly lines, production lines or other commercial applications. This warranty does not extend to such commercial use as it constitutes abuse of the Freeman Product.

NO WARRANTY, ORAL OR WRITTEN, EXPRESSED OR IMPLIED, OTHER THAN THE ABOVE WARRANTY IS MADE WITH REGARD TO THIS FREEMAN PRODUCT. PGP INC. DISCLAIMS ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR USE OR PURPOSE, AND ALL OTHER WARRANTIES. IN NO EVENT SHALL PGP INC. BE LIABLE FOR ANY INCIDENTAL, SPECIAL, CONSEQUENTIAL OR PUNITIVE DAMAGES, OR FOR ANY COSTS, ATTORNEY FEES, EXPENSES, LOSSES OR DELAYS ALLEGED TO BE AS A CONSEQUENCE OF ANY DAMAGE TO, FAILURE OF, OR DEFECT IN ANY PRODUCT INCLUDING, BUT NOT LIMITED TO, ANY CLAIMS FOR LOSS OF PROFITS.

Some states do not allow limitations on how long an implied warranty lasts, so the above limitations may not apply to you. Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you.

These warranties are subject to change without notice
