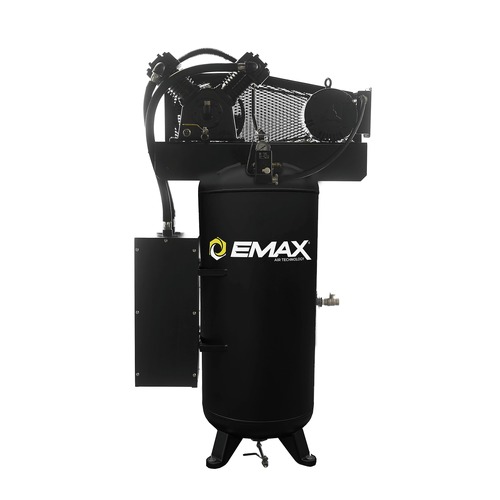

EMAX 5 HP 60 Gallon Single Stage Single Phase 19 CFM Industrial 2-Cylinder Splash Lubricated Pump Electric SILENT Air Compressor

EMAX Model: ESS05V060V1
$2,429.99
See More
See Less
free shipping
FREE shipping on orders $49+.
free shipping
This item ships directly from the manufacturer.
alert warning icon

OR PAY WITH

CA Residents
Prop 65 Warning
compliance warning icon
WARNING: This product can expose you to Lead, which is known to the State of California to cause Cancer and Birth Defect/Reproductive Harm. For more information go to www.P65Warnings.ca.gov.
EMAX 5 HP 60 Gallon Single Stage Single Phase 19 CFM Industrial 2-Cylinder Splash Lubricated Pump Electric SILENT Air Compressor EMAX Model: ESS05V060V1
price for vip customer
$2,429.99

OR PAY WITH

Product Features & specs :

EMAX ESS05V060V1 5 HP 60 Gallon Single Stage Single Phase 19 CFM Industrial 2-Cylinder Splash Lubricated Pump Electric SILENT Air Compressor

Details

The EMAX 250 Silent Air Series 5 HP 60 Gallon Single Stage 2 Cylinder Single Phase Air Compressor is designed for up to 50,000 hours of use with proper maintenance. This EMAX air compressor is equipped with an all-cast iron splash lubricated pump producing 19 CFM at 100 PSI. This unit features our patented Silent Air System already installed. The Silent Air System dissipates compressor intake noise by channeling the intake air through a series of baffle plates. This low-profile system adds 4-levels of air filtration along with making the compressor quiet, lowering the decibels by more than 35 percent. It also features industrial grade 1.1 service factor 1,740 RPM electric motor, condor pressure switch, manual drain valve, 60 gallon powder coated ASME tank with 1/4 in. mounting pads, OSHA approved 13 gauge steel belt guard, 3/4 in. air outlet, all back by the best warranty around. EMAX air compressors are built and tested in Ohio with reliability and durability in mind.

Features:

  • Solid cast iron splash lubricated pump

  • Compressor operation: Automatic start/stop, single speed

  • Made in USA with global spec parts

  • Motor RPM: 1,750

  • 13 gauge steel belt guard

  • Solid steel pump rods, industrial removable disc valves, 50,000 hours pump life

  • Open Drip Proof (ODP) industrial 1.1 service factor, electric motor

  • Includes: Air silencer with 5-stage filtration, 1 qt. of oil and anti vibration isolator pads

  • Dual belts

What’s Included:

  • 5 HP 60 Gallon Single Stage Single Phase 19 CFM Industrial 2-Cylinder Splash Lubricated Pump Electric SILENT Air Compressor - ESS05V060V1

  • Air Silencer with 5 Stage Filtration

Tank Construction

Cast Iron

Tank Capacity

60 gal

Phase

1

RPM

1740

Horsepower

5

Length

35 in.

Width

21 in.

Height

69 in.

Weight

491 lbs.

Warranty Term

1 Year-Standard, 5 Year-Extended, Lifetime-Extended with Maintenance Kit
