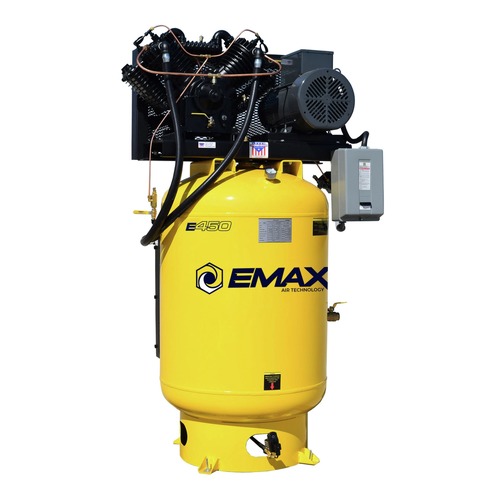

EMAX 10 HP 120 Gallon 2-Stage 3-Phase Industrial V4 Pressure Lubricated Pump 38 CFM @ 100 PSI Plus SILENT Air Compressor

EMAX Model: ESP10V120V3
$5,199.00
See More
See Less
free shipping
FREE shipping on orders $49+.
free shipping
This item ships directly from manufacturer in 22 days
alert warning icon

OR PAY WITH

CA Residents
Prop 65 Warning
compliance warning icon
WARNING: This product can expose you to Lead, which is known to the State of California to cause Cancer and Birth Defect/Reproductive Harm. For more information go to www.P65Warnings.ca.gov.
EMAX 10 HP 120 Gallon 2-Stage 3-Phase Industrial V4 Pressure Lubricated Pump 38 CFM @ 100 PSI Plus SILENT Air Compressor EMAX Model: ESP10V120V3
price for vip customer
$5,199.00

OR PAY WITH

Product Features & specs :

EMAX ESP10V120V3 10 HP 120 Gallon 2-Stage 3-Phase Industrial V4 Pressure Lubricated Pump 38 CFM @ 100 PSI Plus SILENT Air Compressor

Details

This EMAX Industrial Plus 10 HP 2 Stage V4 3 Phase Vertical 120 gal. Piston Air Compressor is designed for up to 70,000 hours of commercial or industrial use with proper maintenance. This unit delivers 38 CFM at 100 PSI, top PSI of 175. Our unit features industrial electric motors, magnetic starters, automatic tank drain, powder coated ASME tank 200 PSI rating, along with our continuous run functionality all paired with all cast iron 70,000 hour rated patented pressure lubricated reciprocating pump. This unit features our patented Patented Silent Air System silent air system already installed. The Patented Silent Air System dissipates compressor intake noise by channeling the intake air through a series of baffle plates. This low-profile system adds 4 levels of air filtration along with making the compressor quiet, lowering the decibels by more than 35 percent. All backed by the warranty in the industry!

Features:

  • MADE IN USA

  • Patented pressure lubricated 2-stage cast iron pump with dual control design allows for automatic or continuous run rated at up to 70,000 hours

  • Continuous mode functionality on the silent compressor is for workloads over 50 percent duty cycle eliminates wear and tear on your magnetic contactor

  • Belt tension adjustor for fast, easy one-turn design reduces vibration and extends belt life

  • Auto tank drain 110V dual is timer controlled and eliminates daily maintenance

  • Silent air technology dissipates compressor intake noise by channeling the intake air through a series of baffle plates

  • ETL, UL, CSA, and ASME Certified

  • ASME tank certified up to 200 PSI maximum pressure in all 50 USA states

  • 208V/230V/460V options available

  • 3-phase compressor delivers 38 SCFM at 100 PSI with a top PSI of 175

  • Powder-coated ASME tank in the compressor is weather-resistant

  • Low 800 RPM patented pressure lubricated solid cast iron pump with cast iron crankcase, not aluminum

  • Low-profile design adds 4 levels of air filtration

  • Industrial low 1,750 RPM 10 HP electric motor

  • Warranty: 1-Year Standard, 5-Year Extended, Lifetime Extended pump with maintenance kit

  • Includes: Belt Tension Adjuster, Magnetic Starter, Automatic Tank Drain, Air Stream Technology, Continuous Run Kit, Industrial Grade Motor, Patented Silent Air System Noise Suppression System, Patented Solid Cast Iron Pump with Cast Iron Crankcase

  • Tank outlet size: 1 in.

What’s Included:

  • 10 HP 120 gal. 2-Stage 3 Phase Solid Cast Iron Industrial V4 Pressure Lubricated Pump Plus SILENT AIR Compressor - ESP10V120V3

Power Source

Corded

Drive System

Belt Drive

Amperage

40

UL Safety

No

Pump Speed (RPM)

800

Tank Construction

Metal

Tank Orientation

Vertical

Tank Capacity

120 gal

Operating Pressure (PSI)

100

Tank Style

Stationary

CSA Safety

Yes

Pump Type

Pressure

Horsepower

10

Air Consumption at 90 PSI (SCFM)

38

Voltage

208V/230V/460V

Fitting Type

NPT

Air Consumption at 40 PSI (SCFM)

34

Noise Rating (dBA)

79

ETL Safety

Yes

Length

41 in.

Width

43 in.

Height

79 in.

Weight

1020 lbs.
