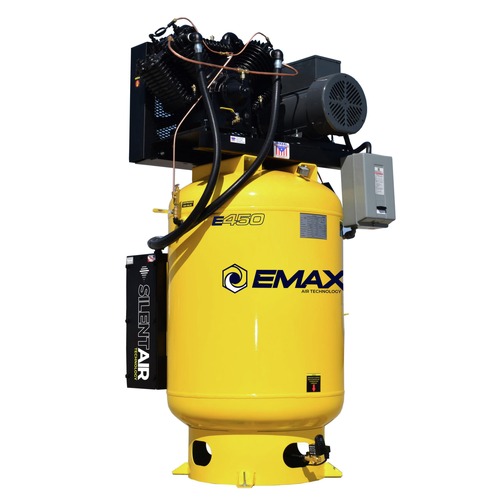

EMAX 7.5 HP 120 Gallon Industrial 2 Stage Single Phase Industrial V4 Pressure Lubricated Pump 31 CFM @ 100 PSI Plus SILENT Air Compressor

EMAX Model: ESP07V120V1
$4,699.00
See More
See Less
free shipping
FREE shipping on orders $49+.
free shipping
This item ships directly from manufacturer in 22 days
alert warning icon

OR PAY WITH

CA Residents
Prop 65 Warning
compliance warning icon
WARNING: This product can expose you to Lead, which is known to the State of California to cause Cancer and Birth Defect/Reproductive Harm. For more information go to www.P65Warnings.ca.gov.
EMAX 7.5 HP 120 Gallon Industrial 2 Stage Single Phase Industrial V4 Pressure Lubricated Pump 31 CFM @ 100 PSI Plus SILENT Air Compressor EMAX Model: ESP07V120V1
price for vip customer
$4,699.00

OR PAY WITH

Product Features & specs :

EMAX ESP07V120V1 7.5 HP 120 Gallon Industrial 2 Stage Single Phase Industrial V4 Pressure Lubricated Pump 31 CFM @ 100 PSI Plus SILENT Air Compressor

Details

This EMAX Industrial Plus 7.5 HP 2 Stage V4 1 Phase Vertical 120 gal. Piston Air Compressor is designed for up to 70,000 hours of commercial or industrial use with proper maintenance. This unit delivers 31 CFM @ 100 PSI, top PSI of 175. Our unit features industrial electric motors, magnetic starters, an automatic tank drain, powder coated ASME tank 200 PSI rating, along with our continuous run functionality all paired with all cast iron 70,000 hr. rated patented pressure lubricated reciprocating pump. This unit features our patented Patented Silent Air System silent air system already installed. The Patented Silent Air System dissipates compressor intake noise by channeling the intake air through a series of baffle plates. This low-profile system adds 4 levels of air filtration along with making the compressor quiet, lowering the decibels by more than 35 percent. All backed by the warranty in the industry! 1 Year Standard, 5 Year Extended, Eligible pump Lifetime warranty with maintenance kit.

Features:

  • MADE IN THE USA

  • Piston series 2-stage cast iron pump rated at up to 70,000 hours

  • Continuous mode functionality for workloads over 50 percent duty cycle eliminates wear and tear on your magnetic contactor

  • Belt tension adjustor for fast, easy one-turn design reduces vibration and extends belt life

  • Built in inner-cooler and after cooler

  • Solid cast iron crankcase with oil sight glass

  • Steel crankshaft with tapered roller bearings for solid pump support

  • Industrial-duty, low 1,750 RPM Name Brand Motor - UL and CSA 31 CFM @ 100 PSI

  • Auto tank drain 110V dual timer controlled, eliminates daily maintenance

  • Patented Silent Air System

  • Re-usable oil filter

  • Magnetic starter

  • Max PSI: 175

  • Low Pump 640 RPM

  • Oil capacity: 2.5 qt.

  • Automatic start/stop

  • Tank outlet size: 1 in.

  • Automatic tank drain

  • Vertical 120 ASME certified in all 50 states, powder coated tank

  • Max tank PSI: 200

  • Certifications: ETL, UL, CSA, ASME

  • Dimensions: 41 in. x 43 in. x 73 in. (LxWxH)

  • Weight: 1,020 lbs.

What’s Included:

  • 7.5 HP 120 gal. Industrial 2 Stage V4 Pressure Lubricated Pump Single Phase 31 CFM @ 100 PSI Plus SILENT Air Compressor - ESP07V120V1

  • Belt Tension Adjuster

  • Automatic Tank Drain

  • Air Stream Technology

  • Continuous Run Kit

  • Industrial Grade Motor

  • Patented Silent Air System Noise Suppression System

Power Source

Corded

Lubrication System

Oil-Lube

Drive System

Belt Drive

Amperage

32

UL Safety

Yes

Pump Speed (RPM)

640

Tank Construction

Cast Iron

Tank Capacity

120 gal

Operating Pressure (PSI)

175

Tank Style

Stationary

CSA Safety

Yes

Pump Type

Pressure

Horsepower

7.5

Air Consumption at 90 PSI (SCFM)

32

Voltage

230V

Air Consumption at 40 PSI (SCFM)

35

Noise Rating (dBA)

79

ETL Safety

Yes

Length

41 in.

Width

43 in.

Height

73 in.

Weight

1020 lbs.

Warranty Term

1 Year
