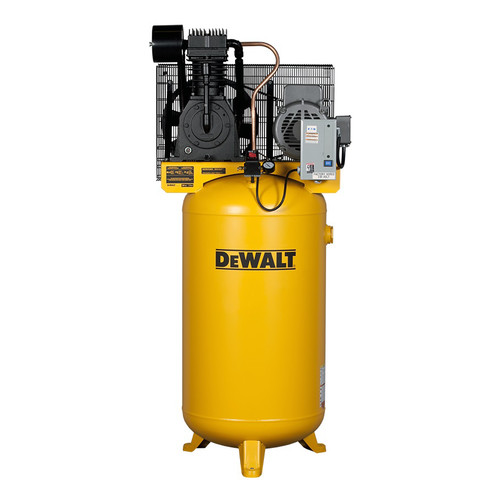

Dewalt 7.5 HP 80 Gallon Oil-Lube Stationary Air Compressor with WEG Motor

Dewalt Model: DXCMV7518075
$3,329.99
See More
See Less
free shipping
FREE shipping on orders $49+.
free shipping
This item ships directly from the manufacturer.
alert warning icon

OR PAY WITH

CA Residents
Prop 65 Warning
compliance warning icon
WARNING: This product can expose you to Lead, which is known to the State of California to cause Cancer and Birth Defect/Reproductive Harm. For more information go to www.P65Warnings.ca.gov.
Dewalt 7.5 HP 80 Gallon Oil-Lube Stationary Air Compressor with WEG Motor Dewalt Model: DXCMV7518075
price for vip customer
$3,329.99

OR PAY WITH

Product Features & specs :

Dewalt DXCMV7518075 7.5 HP 80 Gallon Oil-Lube Stationary Air Compressor with WEG Motor

Details

DeWalt Compressors are jobsite tough, and built for the professional. DEWALT offers a full line of both electric and gas-powered professional compressors. DeWalt compressors include lightweight, portable contractor units, high volume, high capacity wheeled contractor units, and high capacity industrial compressors to accommodate the highest demand.

The DEWALT 7.5 HP 80 Gallon 2-Stage Oil-Lube Industrial Air Compressor is designed for the heavy-duty professional user. 1,725 RPM industrial-class electric motor which provides superior performance and long-lasting durability. A cast iron cylinder head with patented deep-grove directional cooling fins, precision bored cylinders with patented asymmetrical cooling fins, and a patented cast iron flywheel design with large extended fins for improved cooling of the pump and maintains low pump RPMs while maintaining consistent compression efficiency. The DXCMV7518075 has 175 maximum PSI to operate a wide range of tools while maintaining longer run times and with an integrated system panel for convenience and added control. This machine also has a unique belt guard which can improve compressor pump cooling by as much as 60 degrees over other belt guard designs.

Features:

  • Large capacity 80 gallon ASME certified tank

  • Industrial performance delivering a maximum 175 PSI

  • Patented pump design provides for a cooler running pump

  • Patented piston design for improved compression efficiency

  • Cast iron cylinder head with deep-grove directional and asymmetrical cooling fins

  • Patented cast-iron flywheel design with large extended fins for improved cooling and low-pump RPM

  • Unique belt guard improves compressor pump cooling by as much as 60 degrees Fahrenheit over other belt guard designs

  • NEMA rated and UL certified

What’s Included:

  • 7.5 HP 80 Gallon Oil-Lube Stationary Air Compressor with WEG Motor - DXCMV7518075

Power Source

Corded

Lubrication System

Oil-Lube

Drive System

Belt Drive

Amperage

40

UL Safety

Yes

Power Type

Electric

Pump Speed (RPM)

1725

Motor Type

Brushed

Tank Construction

Cast Iron

Tank Orientation

Vertical

Tank Capacity

80 gal

Operating Pressure (PSI)

175

Lubrication

Oil-Lube

Tank Style

Stationary

CSA Safety

No

Pump Type

Reciprocating

Phase

1

Air Inlet Size

1/4 in

RPM

1725

Horsepower

7.5

Air Consumption at 90 PSI (SCFM)

14.1

Voltage

240V

Fitting Size

1/4 in

Air Consumption at 40 PSI (SCFM)

13.7

Running Horsepower

7.5

Noise Rating (dBA)

84

ETL Safety

No

Length

37 in.

Width

29 in.

Height

79 in.

Weight

623 lbs.

Warranty Term

2 Year

Reviews :

Q & A :

Warranty:

Dewalt Compressors Warranty

The warranty on new DEWALT compressors is as follows:

Electric Units:

  • 30 Day Money Back Guarantee
  • 1 Year Free Service Contract
  • 1 Year Full Warranty

Gas Units:

  • 1 Year Free Service Contract
  • 1 Year Warranty
  • 2 Year Limited Warranty on Honda GX Engine, through Authorized Honda Service Centers

NOTE: There is no return policy on gas compressors. They would have to be taken to a DEWALT Factory Service Center, not returned to CPO DEWALT.
