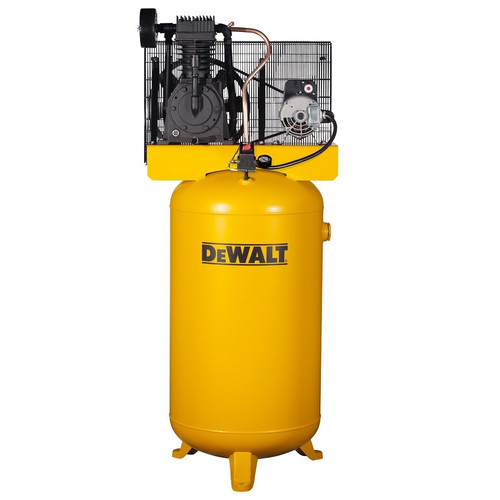

Dewalt 5 HP 80 Gallon Oil-Lube Vertical Stationary Air Compressor

Dewalt Model: DXCMV5048055.1
$2,429.99
See More
See Less
free shipping
FREE shipping on orders $49+.
free shipping
This item ships directly from manufacturer in 3 - 4 weeks
alert warning icon

OR PAY WITH

CA Residents
Prop 65 Warning
compliance warning icon
WARNING: This product can expose you to Lead, which is known to the State of California to cause Cancer and Birth Defect/Reproductive Harm. For more information go to www.P65Warnings.ca.gov.
Dewalt 5 HP 80 Gallon Oil-Lube Vertical Stationary Air Compressor Dewalt Model: DXCMV5048055.1
price for vip customer
$2,429.99

OR PAY WITH

Product Features & specs :

Dewalt DXCMV5048055.1 5 HP 80 Gallon Oil-Lube Vertical Stationary Air Compressor

Details

DEWALT's DXCMV5048055.1 5 HP 80 Gallon Oil-Lube Stationary Vertical Air Compressor features a high capacity tank that provides extended runtimes for various air tools including, but not limited to, ratchets, wrenches, spray guns and hammers. Designed exclusively for the heavy-duty needs of mechanics, this unit highlights rugged components and is built to last under the most demanding conditions.

Features:

  • 5 HP industrial grade electric motor delivers maximum CFM at 175 PSI for superior performance

  • Thermal Overload Protection (TOPS) motor protects the motor for voltage fluctuations

  • Patented 2-stage cast iron industrial-duty pump design provides a cooler running pump

  • Patented cast iron flywheel offer large pins for low pump RPM, improved cooling, and added pump life

  • Patented asymmetrical, deep groove cooling fins for long life and effective runtime

  • Integrated control panel includes large tank and output pressure gauges for easy reference

  • Large capacity 80 gallon air receiver is ASME rated for safety

What’s Included:

  • 5 HP 80 Gallon Oil-Lube Stationary Vertical Air Compressor - DXCMV5048055.1

Power Source

Corded

Lubrication System

Oil-Lube

Drive System

Belt Drive

Amperage

22

UL Safety

Yes

Power Type

Electric

Motor Type

Brushed

Tank Construction

Cast Iron

Tank Orientation

Vertical

Tank Capacity

80 gal

Operating Pressure (PSI)

175

Lubrication

Oil-Lube

Tank Style

Stationary

CSA Safety

No

Pump Type

Reciprocating

Phase

1

Air Inlet Size

1/4 in

Horsepower

5

Air Consumption at 90 PSI (SCFM)

18

Voltage

230V

Fitting Size

1/4 in

Air Consumption at 40 PSI (SCFM)

18.3

Running Horsepower

5

Noise Rating (dBA)

83

ETL Safety

No

Length

31.5 in.

Width

34.75 in.

Height

80 in.

Weight

470 lbs.

Warranty Term

2 Year

Reviews :

Q & A :

Warranty:

Dewalt Compressors Warranty

The warranty on new DEWALT compressors is as follows:

Electric Units:

  • 30 Day Money Back Guarantee
  • 1 Year Free Service Contract
  • 1 Year Full Warranty

Gas Units:

  • 1 Year Free Service Contract
  • 1 Year Warranty
  • 2 Year Limited Warranty on Honda GX Engine, through Authorized Honda Service Centers

NOTE: There is no return policy on gas compressors. They would have to be taken to a DEWALT Factory Service Center, not returned to CPO DEWALT.
