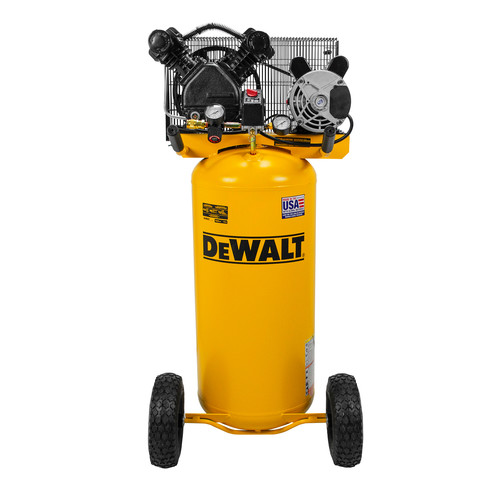

Dewalt 1.6 HP 20 Gallon Portable Hotdog Air Compressor

Dewalt Model: DXCMLA1682066
$914.99
See More
See Less
free shipping
FREE shipping on orders $49+.
free shipping
This item ships directly from manufacturer in 1-2 weeks
alert warning icon

OR PAY WITH

CA Residents
Prop 65 Warning
compliance warning icon
WARNING: This product can expose you to Lead, which is known to the State of California to cause Cancer and Birth Defect/Reproductive Harm. For more information go to www.P65Warnings.ca.gov.
Dewalt 1.6 HP 20 Gallon Portable Hotdog Air Compressor Dewalt Model: DXCMLA1682066
price for vip customer
$914.99

OR PAY WITH

Product Features & specs :

Dewalt DXCMLA1682066 1.6 HP 20 Gallon Portable Hotdog Air Compressor

Details

The DEWALT 20 Gal. Air Compressor is jobsite tough and built for the professional. It features automotive style ball bearings, durable stainless steel reed valves, oil level sight glass, easily accessible oil fill and a cast iron balanced flywheel for easy maintenance, durability and convenience. This single-stage, oil lubricated compressor offers a Twin-V cast iron pump with 1-Piece cast iron crank case and thermally stable cast iron cylinder body. It has a heavy-duty 1.6 HP, 120V/240V induction motor, as well as a full-size metal belt guard for added motor protection and durability. For portability, you can wheel it wherever it is needed.

Features:

  • Cast iron, V-twin cylinder, oil lubricated pump

  • Heavy duty induction motor for maximum performance and efficiency

  • 155 PSI max pressure for optimum tool performance

  • 20 Gallon portable tank equipped with pneumatic tires for maximum portability

  • Dual voltage motor is wired for standard 120V outlet, and may also be converted for 240V application

  • Equipped with quick-set regulator, tank and tool pressure gauges, quick connect air outlet and on/off switch

What’s Included:

  • 1.6 HP 20 gal Portable Hotdog Air Compressor - DXCML1682066

  • Quick Set Regulator Tank

  • Tank and Tool Pressure Gauges

  • Quick Connect Air Outlet

  • On/Off Switch

Power Source

Gas

Lubrication System

Oil-Lube

Drive System

Belt Drive

Amperage

15

UL Safety

No

Power Type

Electric

Pump Speed (RPM)

1725

Motor Type

Brushed

Tank Construction

Cast Iron

Tank Orientation

Vertical

Tank Capacity

20 gal

Operating Pressure (PSI)

175

Lubrication

Oil-Lube

Tank Style

Dolly

CSA Safety

Yes

Pump Type

Reciprocating

Phase

1

Air Inlet Size

1/4 in

RPM

1725

Horsepower

1.6

Air Consumption at 90 PSI (SCFM)

5.3

Voltage

120V

Fitting Size

1/4 in

Air Consumption at 40 PSI (SCFM)

6.2

Running Horsepower

1.6

Noise Rating (dBA)

78

ETL Safety

No

Length

25 in.

Width

24.5 in.

Height

49 in.

Weight

159 lbs.

Warranty Term

2 Year

Reviews :

Q & A :

Warranty:

Dewalt Compressors Warranty

The warranty on new DEWALT compressors is as follows:

Electric Units:

  • 30 Day Money Back Guarantee
  • 1 Year Free Service Contract
  • 1 Year Full Warranty

Gas Units:

  • 1 Year Free Service Contract
  • 1 Year Warranty
  • 2 Year Limited Warranty on Honda GX Engine, through Authorized Honda Service Centers

NOTE: There is no return policy on gas compressors. They would have to be taken to a DEWALT Factory Service Center, not returned to CPO DEWALT.
