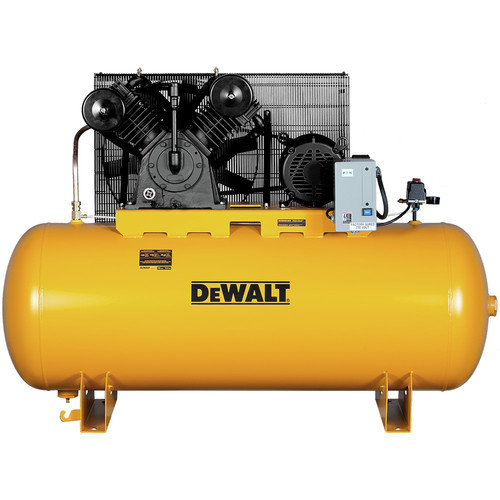

Dewalt 10 HP 120 Gallon Oil-Lube Stationary Air Compressor with Baldor Motor

Dewalt Model: DXCMH9919910
Price reduced from $4,649.00 to Save 14% $3,991.99
See More
See Less
free shipping
FREE shipping on orders $49+.
free shipping
This item ships directly from the manufacturer.
alert warning icon

OR PAY WITH

CA Residents
Prop 65 Warning
compliance warning icon
WARNING: This product can expose you to Lead, which is known to the State of California to cause Cancer and Birth Defect/Reproductive Harm. For more information go to www.P65Warnings.ca.gov.
Dewalt 10 HP 120 Gallon Oil-Lube Stationary Air Compressor with Baldor Motor Dewalt Model: DXCMH9919910
price for vip customer
Price reduced from $4,649.00 to Save 14% $3,991.99

OR PAY WITH

Product Features & specs :

Dewalt DXCMH9919910 10 HP 120 Gallon Oil-Lube Stationary Air Compressor with Baldor Motor

Details

DeWalt Compressors are jobsite tough, and built for the professional. DeWalt offers a full line of both electric and gas powered professional compressors. DeWalt compressors include lightweight, portable contractor units, high volume, high capacity wheeled contractor units and high capacity industrial compressors to accommodate the highest demand.

The DeWALT 10 HP 120 Gallon BALDOR Two Stage Oil-Lube Industrial Air Compressor is designed for the heavy-duty professional user. It features a heavy-duty BALDOR 4-pole, 1,725 RPM industrial-class electric motor which provides superior performance and long lasting durability. A cast iron cylinder head with patented deep-grove directional cooling fins, precision bored cylinders with patented asymmetrical cooling fins and a patented cast iron flywheel design with large extended fins for improved cooling of the pump and maintains low pump RPMs while maintaining consistent compression efficiency. The DXCMH9919910 has 175 maximum PSI to operate a wide range of tools while maintaining longer run times and with an integrated system panel for convenience and added control. This machine also has a unique belt guard which can improve compressor pump cooling by as much as 60 degrees over other belt guard designs.

Features:

  • BALDOR 4-pole, 1,725 RPM industrial class electric motor provides superior performance

  • Large capacity 120 gallon ASME certified tank

  • Industrial performance delivering a maximum 175 PSI

  • Patented pump design provides for a cooler running pump

  • Patented piston design for improved compression efficiency

  • Cast iron cylinder head with deep-grove directional and asymmetrical cooling fins

  • Unique belt guard improves compressor pump cooling by as much as 60 degrees F over other belt guard designs

  • Patented cast-iron flywheel design with large extended fins for improved cooling and low-pump RPM

  • NEMA rated and UL certified

What’s Included:

  • 10 HP 120 Gallon Baldor Two Stage Oil-Lube Industrial Air Compressor - DXCMH9919910

Power Source

Corded

Lubrication System

Oil-Lube

Drive System

Belt Drive

Amperage

28

UL Safety

Yes

Power Type

Electric

Pump Speed (RPM)

1725

Motor Type

Brushed

Tank Construction

Cast Iron

Tank Orientation

Horizontal

Tank Capacity

120 gal

Operating Pressure (PSI)

175

Lubrication

Oil-Lube

Tank Style

Stationary

CSA Safety

No

Pump Type

Reciprocating

Phase

3

Air Inlet Size

1/4 in

RPM

1725

Horsepower

10

Air Consumption at 90 PSI (SCFM)

35.2

Voltage

230V

Fitting Size

1/2 in

Air Consumption at 40 PSI (SCFM)

35.5

Running Horsepower

10

Noise Rating (dBA)

84

ETL Safety

No

Length

29 in.

Width

75 in.

Height

60 in.

Weight

920 lbs.

Warranty Term

2 Year

Reviews :

Q & A :

Warranty:

Dewalt Compressors Warranty

The warranty on new DEWALT compressors is as follows:

Electric Units:

  • 30 Day Money Back Guarantee
  • 1 Year Free Service Contract
  • 1 Year Full Warranty

Gas Units:

  • 1 Year Free Service Contract
  • 1 Year Warranty
  • 2 Year Limited Warranty on Honda GX Engine, through Authorized Honda Service Centers

NOTE: There is no return policy on gas compressors. They would have to be taken to a DEWALT Factory Service Center, not returned to CPO DEWALT.
