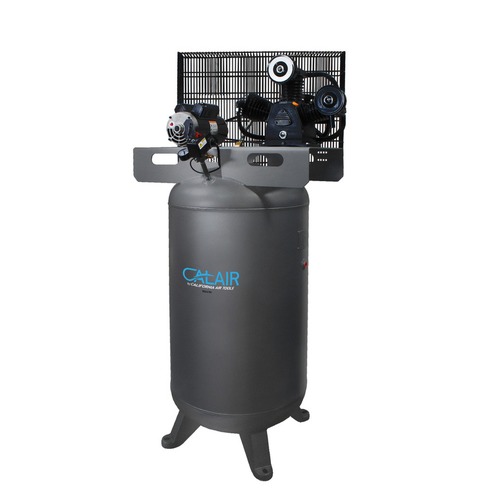

California Air Tools 5 HP 80 Gallon ASME Tank One-Stage Oil-Lubricated Belt Driven Air Compressor

California Air Tools Model: CAIR-80050BD
$1,529.99
See More
See Less
free shipping
FREE shipping on orders $149+.
free shipping
This item ships directly from the manufacturer.
alert warning icon

OR PAY WITH

CA Residents
Prop 65 Warning
compliance warning icon
WARNING: This product can expose you to Benzene, which is known to the State of California to cause Cancer and Birth Defect/Reproductive Harm. For more information go to www.P65Warnings.ca.gov.
California Air Tools 5 HP 80 Gallon ASME Tank One-Stage Oil-Lubricated Belt Driven Air Compressor California Air Tools Model: CAIR-80050BD
price for vip customer
$1,529.99

OR PAY WITH

Product Features & specs :

California Air Tools CAIR-80050BD 5 HP 80 Gallon ASME Tank One-Stage Oil-Lubricated Belt Driven Air Compressor

Details

The CALAIR 80050BD Continuous Run 5 HP Air Compressor is designed for continuous running up to 8 hours at 90 PSI. The CALAIR 80050BD Air Compressor has a pump system that is designed to have a life cycle before maintenance/service of 5,000 to 10,000 hours of usage. The large 80 gallon ASME Certified steel air tank is just the right size for a shop, warehouse or factory Ideal for air brushing, bolting, brad nailing, cutting, drilling, grinding, finish nailing, framing nailing, HVLP painting, hobby nailing, hobby painting, inflation, roof nailing, spraying, stapling, trim and impacting/wrenching. Designed for people looking for reliable air flow in commercial and industrial environments.

Features:

  • 5 HP motor with reset switch (1,072 RPM).

  • Belt-driven pump (oil type ISO 68 / LDAB68). 5,000 to 10,000 hour life. Single stage pump (3 cylinders).

  • Pressure gauge

  • 1/2 in. NPT output valve port (note: 1/2 in. output ball valve and 125 PSI pressure regulator not included).

  • Power on/pressure switch

  • Motor thermal overload protector (trips @135C)

  • Working pressure: 135-165 PSI

  • 208V (200V - 216V) to 230V (220V - 240V) / 60 Hz / Single Phase

  • 15 CFM @ 90 PSI, 17.5 CFM @ 40 PSI

  • Continuous run up to 8 hours (10 hours maximum)

What’s Included:

  • 5 HP 80 Gallon ASME Tank One-Stage Oil-Lubricated Belt Driven Air Compressor - 80050BD

Material

Cast Iron

Length

35 in.

Width

28 in.

Height

68 in.

Weight

328 lbs.

Warranty Term

2 Year-Pump, 1 Year-All Other Components
