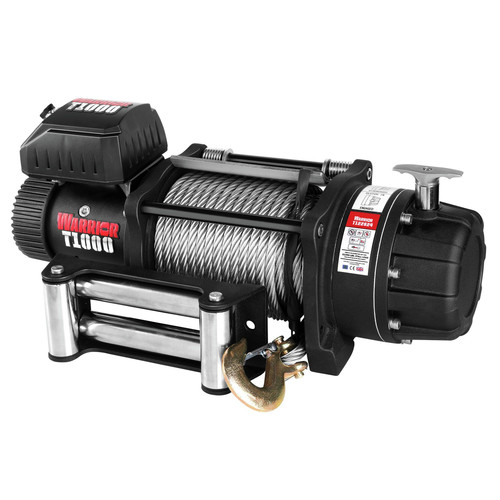

Warrior Winches Elite Combat 10000 lbs. Capacity Winch with Steel Cable

Warrior Winches Model: T1000-100

Enter your email address and we'll let you know when it's available

OUT OF STOCK
CA Residents
Prop 65 Warning
compliance warning icon
WARNING: Cancer and Reproductive Harm -- www.P65Warnings.ca.gov
Warrior Winches Elite Combat 10000 lbs. Capacity Winch with Steel Cable Warrior Winches Model: T1000-100

Product Features & specs :

Warrior Winches T1000-100 Elite Combat 10000 lbs. Capacity Winch with Steel Cable

Details

Built specifically for military use, able to withstand extreme climates and temps. Features include hardened 3 stage planetary gears for reliable and efficient use in the harshest environments. The waterproof remote control has thermometric LED indicators signals to monitor the temperature of the motor and high temp lithium grease is used which doesn't solidify in extreme climates.

Features:

  • IP68 Rated Military Grade Winch and Control Box

  • Hardened 3-Stage planetary gears

  • Waterproof remote control with LED indicators

  • Corrosion and Chemical Resistant Powder Coat

  • High Temperature Lithium Grease that won't solidify in extreme temperatures

  • Rated Line Pull: 10000 lbs. (4536 kg.); Motor at 12V: 4.6kW / 6.2 HP, at 24V: 6.5kW / 8.7 HP; Gearing: 228:1; Drum Size - Dia x L: 63 mm x 217 mm (2.48 x 8.5 in.); Cable - Dia x L: 9.1 mm x 25 m (0.35 in. x 82 ft.); Dimensions: 574 mm x 16 mm x 259 mm (22.6 in. x 6.3 in. x 10.2 in.); Mounting Pattern: 254 mm x 114.3 mm; 10 in. x 4.5 in. (4-M10); Weight (kg): 37.5 kg. (82.7 lbs.)

  • Layer of Rope/Cable, Line Pull: lbs. (kg.), Rope on drum ft. (m): 1, 10000 (4536), 16.1 (4.9); 2, 7980 (3620), 36.4 (11.1); 3, 6640 (3012), 61 (18.6); 4, 5680 (2576), 82 (25)

  • Line Pull (lbs. / kg.), Line Speed at 12V at ft./min. (m/min.), Line Speed at 24V ft./min. (m/min.), Amp Draw at 12V, Amp Draw at 24V: 0, 32.2 (9.8), 34.4 (10.5), 65, 45; 3000 (1361), 14.8 (4.5), 16.4 (5), 140, 85; 6000 (2722), 10.5 (3.2), 12.5 (3.8), 260, 140; 8000 (3629), 7.5 (2.3), 9.8 (3), 320, 175; 10000 (4536), 5.2 (1.6), 7.5 (2.3), 380, 210

  • Note: Slight color variations may occur from images shown

What’s Included:

  • Elite Combat 10000 lbs. Capacity Winch with Steel Cable - T1000-100

Capacity

10000 lbs

Construction

Steel

Cable Length

25 m

Weight Capacity

10000 lbs

Horsepower

6.2 / 8.7

Voltage

12V / 24V

Cable Diameter

9.1 mm

Length

22.6 in.

Width

6.3 in.

Height

10.2 in.

Weight

82.7 lbs.

Warranty Term

1 Year
